What is Die Bonding? The First Critical Step in IC Packaging

June 10, 2026

12+ years of experience in die bonding, wire bonding, molding, and IC packaging automation. Focused on helping manufacturers improve packaging yield and production efficiency.

David Chen - Technical Consultant | Semiconductor Packaging Solutions

Die bonding, also known as die attach, die mounting or chip bonding, is the first, most fundamental and critical process in semiconductor packaging. Simply put, it is the process of mounting a semiconductor die accurately, firmly and stably onto a lead frame,substrate,package base or wafer-level carrier.

It can be described as: Just as a house needs a solid foundation, IC packaging requires reliable die bonding. Any defect in die bonding will directly affect wire bonding, molding, testing and long-term reliability.

The Position of Die Bonding in Semiconductor Packaging

Standard semiconductor backend packaging flow: Wafer grinding → Wafer dicing → Die bonding → Wire bonding → Molding → Trim & form → Plating → Testing → Taping

Clearly, die bonding is the first step after the chip enters packaging.

Three Core Functions of Die Bonding

1. Mechanical Fixation

The die is firmly fixed to avoid shifting, warping, peeling or cracking during wire bonding, curing, molding and thermal cycling.

2. Thermal Dissipation Path

The die generates heat during operation, and the die attach layer serves as the main heat dissipation channel.Poor heat dissipation leads to overheating, shortened lifespan and sudden failures.High-power devices, IGBTs and automotive chips have extremely high requirements for thermal conductivity.

3. Electrical Connection

Conductive adhesives, eutectic alloys and solders provide electrical conduction or grounding, improving circuit stability and reducing noise interference.

Four Main Die Bonding Technology (Full Comparison)

Technology	Core Principle	Advantages	Limitations	Typical Applications
Epoxy / Silver Paste Bonding	Conductive/insulative adhesive bonding	Low cost, easy process, wide compatibility	Moderate thermal conductivity, slow curing	LEDs, transistors, standard ICs, consumer electronics
Eutectic Die Bonding	AuSn alloy melting & bonding	Ultra-high thermal conductivity, high reliability, high temp resistance	High equipment cost, strict process	Automotive, power IC, laser diodes, RF devices
Solder Die Bonding	High-temp solder paste/sheet bonding	High strength, vibration resistant, durable	Complex process, narrow temp window	IGBT, high-power modules, highvoltage devices
Vacuum Hot Press Bonding	Vacuum + heat + pressure integration	Void-free, high uniformity, high precision	High cost, lower throughput	MEMS, optical devices, high-precision sensors

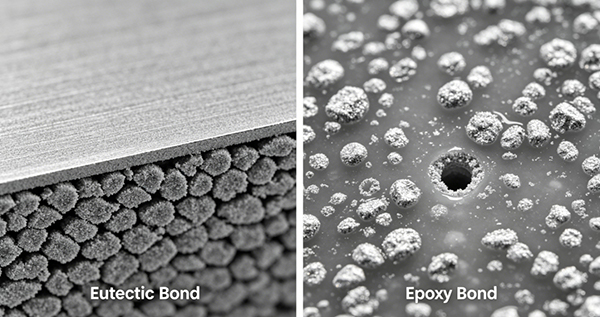

eutectic bonding process

Key Quality Indictors of Die Bonding

1. Position Accuracy

Chip misalignment leads to failed wire bonding.

2. Bonding Strength (Shear Force)

Insufficient strength causes peeling after thermal cycling.

3. Void Rate

Higher voids = poorer heat dissipation = higher failure risk for power devices.

4. Bond Line Thickness (BLT) Uniformity

Affects chip flatness, wire loop shape and molding quality.

5. No Tilting, Warping or Chipping

Chip tilt directly causes wire breakage and package cracking.

Full Automatic Die Bonding Process

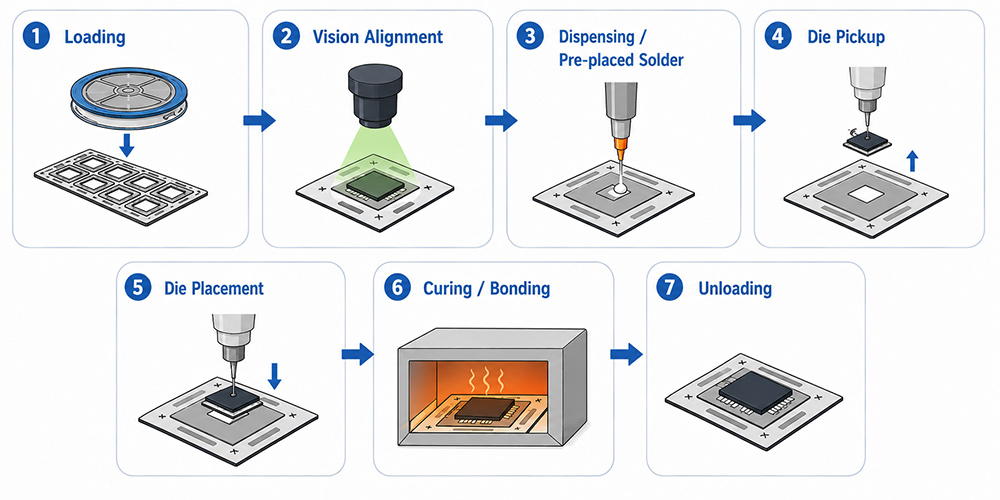

Step1: Loading

Wafer ring / blue tape loading; automatic substrate or lead frame feeding.

Step2: Vision Alignment

High-precision vision system locates die and substrate marks for micron-level alignment.

Step3: Dispensing / Pre-placed Solder

Automatic dispensing of silver paste, conductive epoxy, solder or AuSn preform.

Step4: Die Pickup

Needle lifts die → vacuum nozzle picks up gently → prevents chipping.

Step5: Die Placement

High-precision motion platform places die accurately with controlled pressure.

Step6: Curing / Bonding

Epoxy: thermal curing
Eutectic: high-temperature melting & solidification
Solder: reflow bonding

Step7: Unloading

Transferred to the next process: wire bonding.

Key Factors Affecting Die Bonding Quality

1. Adhesive / Solder Quality

Viscosity, purity, shelf life and mixing ratio directly affect bonding strength.

2. Dispensing Volume

Insufficient volume leads to weak adhesion; excessive volume causes overflow and pad contamination.

3. Equipment Precision

Vision accuracy, platform repeatability, nozzle control and pressure stability.

4. Temperature Profile

Fast heating causes high voids; insufficient temperature leads to incomplete curing; excessive temperature damages the die

5. Environmental Cleanliness

Dust, moisture and oil contamination cause poor adhesion, voids and low reliability.

Serious Defects Caused by Poor Die Bonding

Die shift → wire bonding failure
Low bonding strength → die peeling after thermal shock
High void rate → overheating & burnout in power devices
Adhesive overflow → pad contamination → weak bonds & wire breakage
Die chipping → direct scrappage & low yield

As industry professionals often say:Stable die bonding ensures stable packaging; poor die bonding ruins the whole process.

Die bonding is the most basic, critical and error-sensitive step in IC packaging.It determines mechanical stability, thermal performance, reliability and final yield.Whether for consumer electronics, automotive chips, power devices, optical communication modules or MEMS sensors, high-precision die bonders are essential equipment for laboratories, pilot lines and mass production.
