Precision Electronic Spot Welder Enameled Wires Single Side Spot Welding Machine

Product Introduction

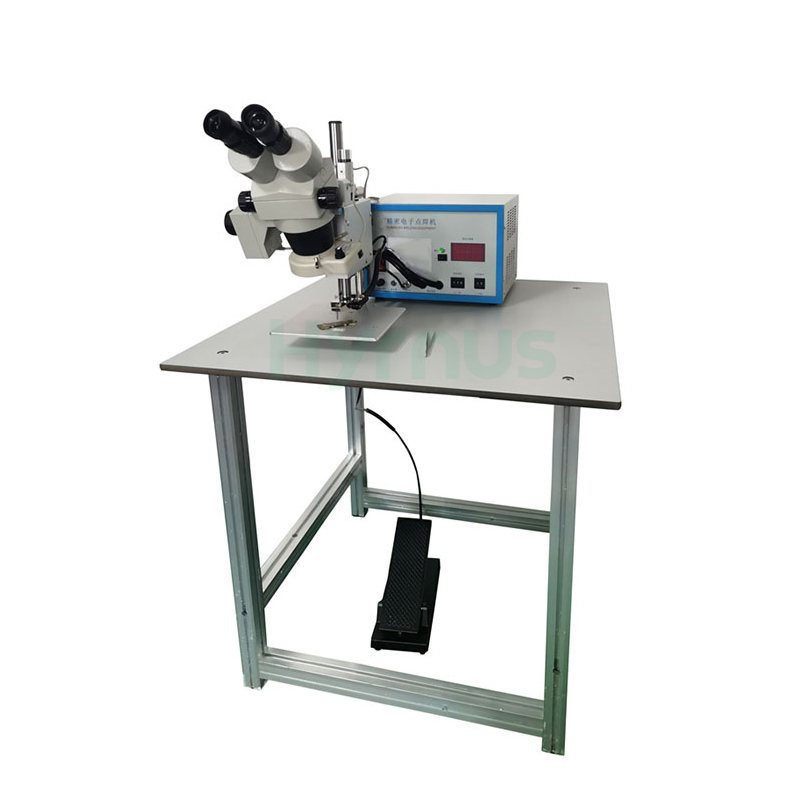

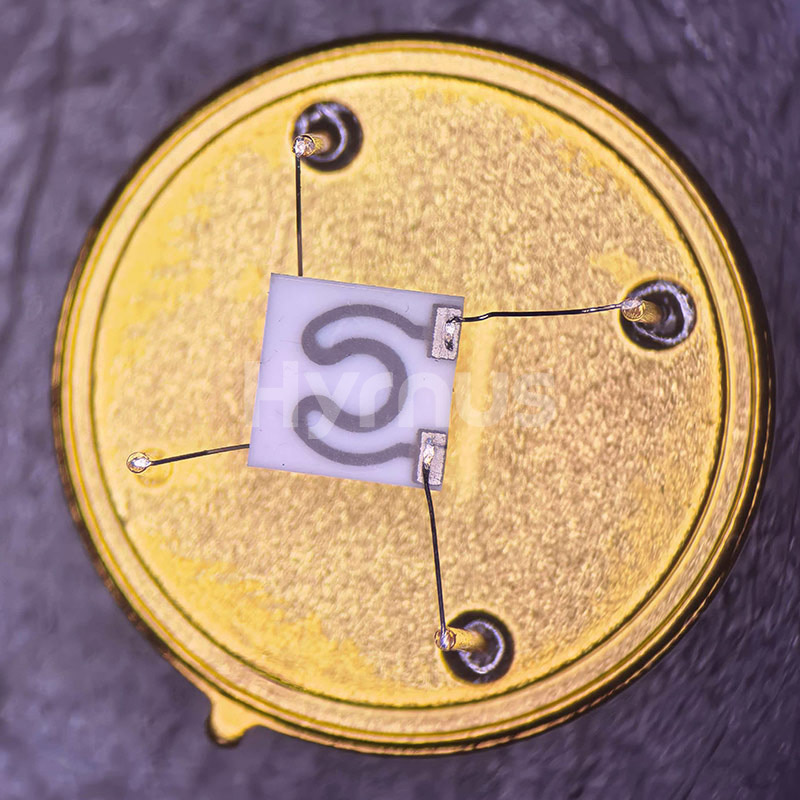

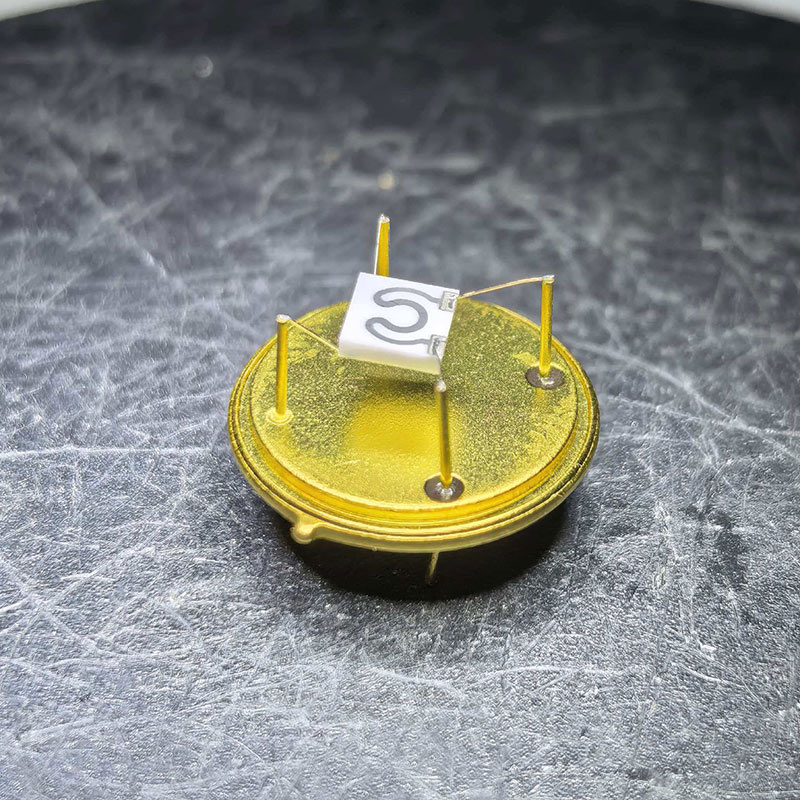

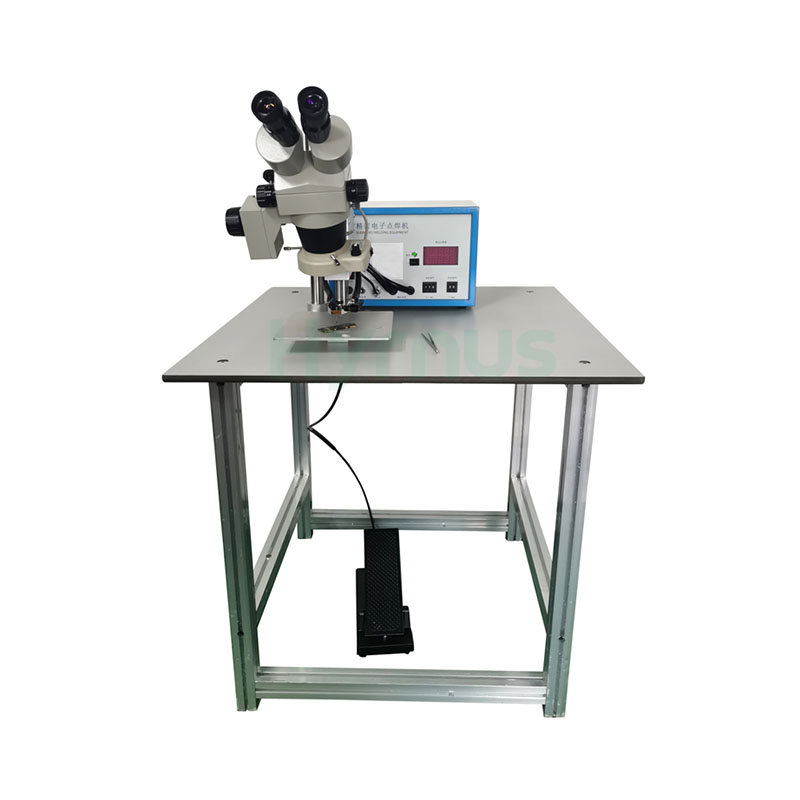

HY-PS3000 Precision Electronic Spot Welder delivers consistent and stable output pulses, and the welding current can be controlled by adjusting the output pulses. They are currently the resistance spot welders with the finest adjustment of welding current. Such welders are not only suitable for welding lead terminals of various small-diameter enameled wires, but also for precision welding of various micro components in fields including aerospace and medical treatment.

Product Features

• The resistance spot welder with the finest welding current regulation

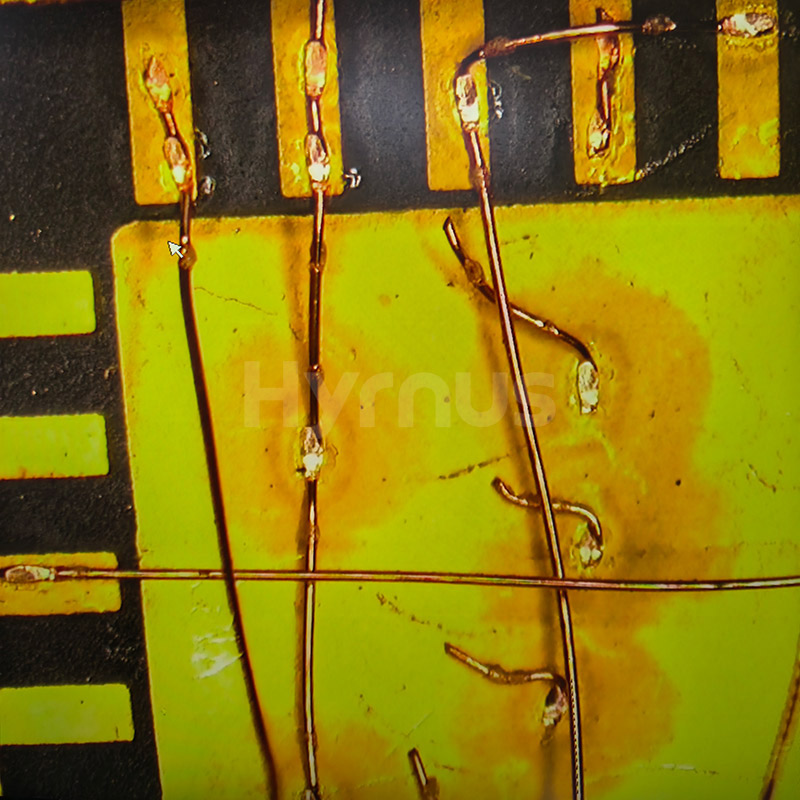

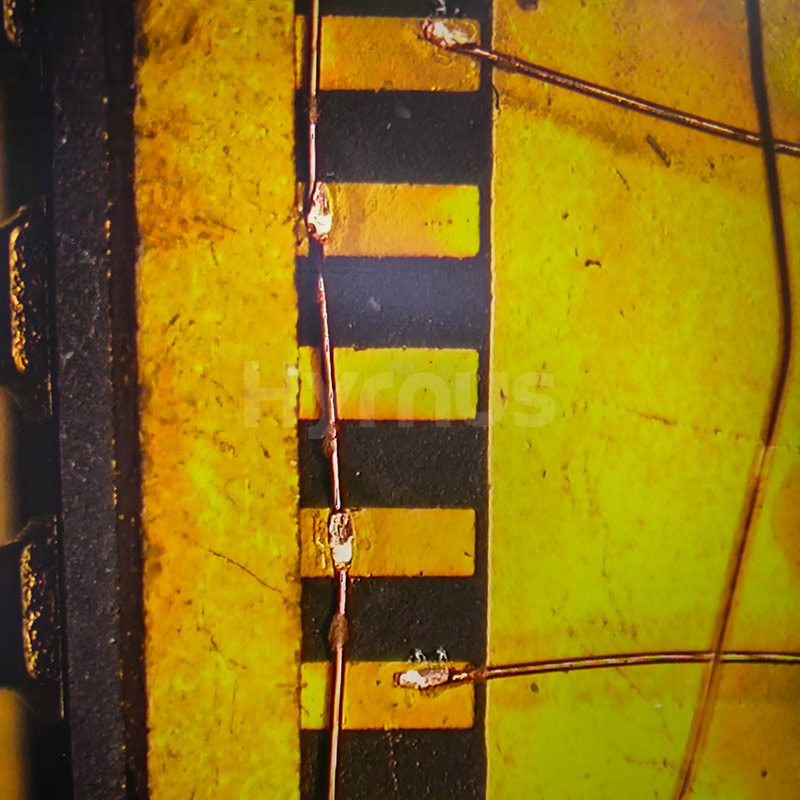

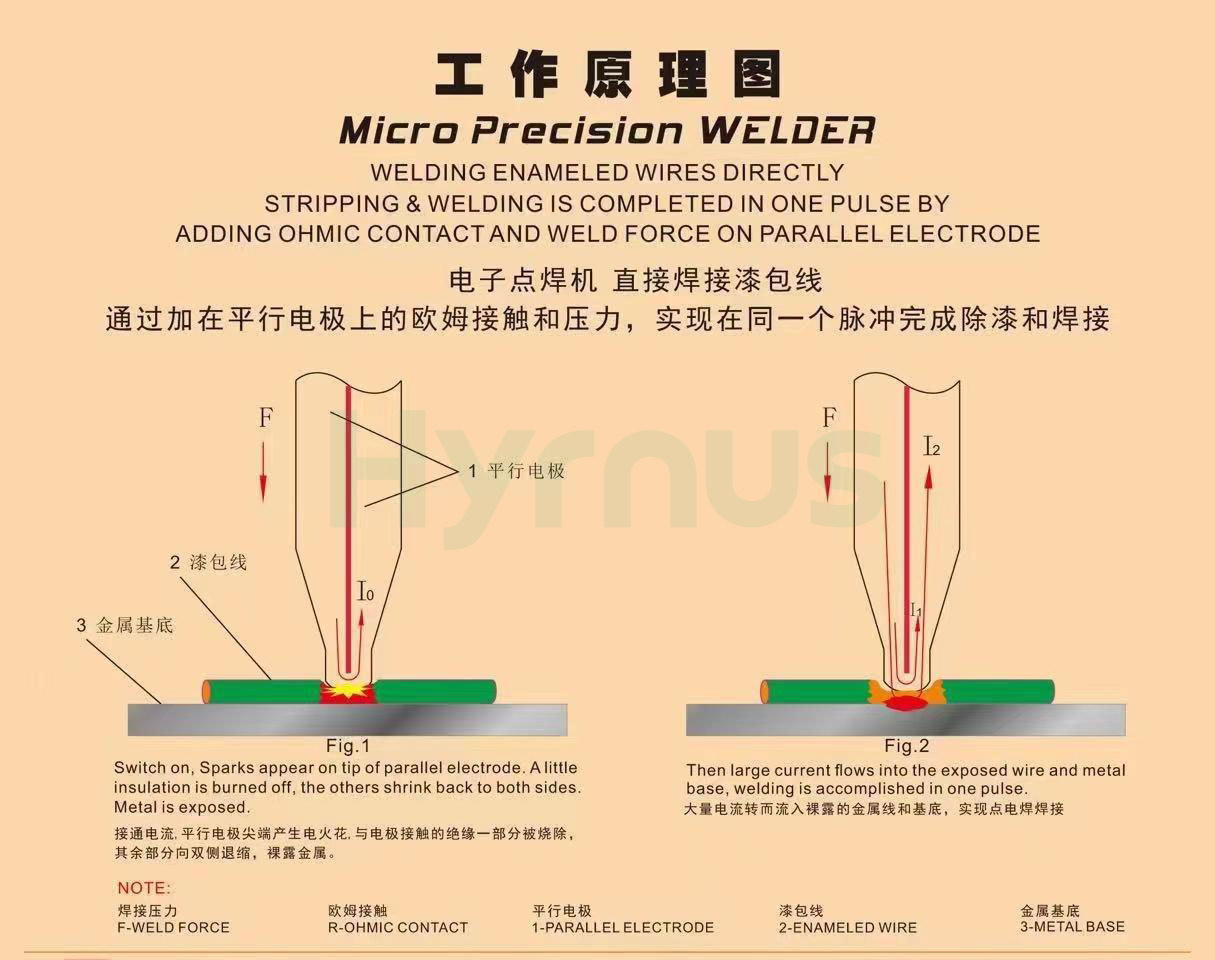

• Single-sided direct welding of enameled wires
• Intelligent current output for reliable and consistent welds
• Long-life welding head with high-quality solder joints
• Compatible with U-type and standard welding heads

Technical Parameter

Item	Specifications

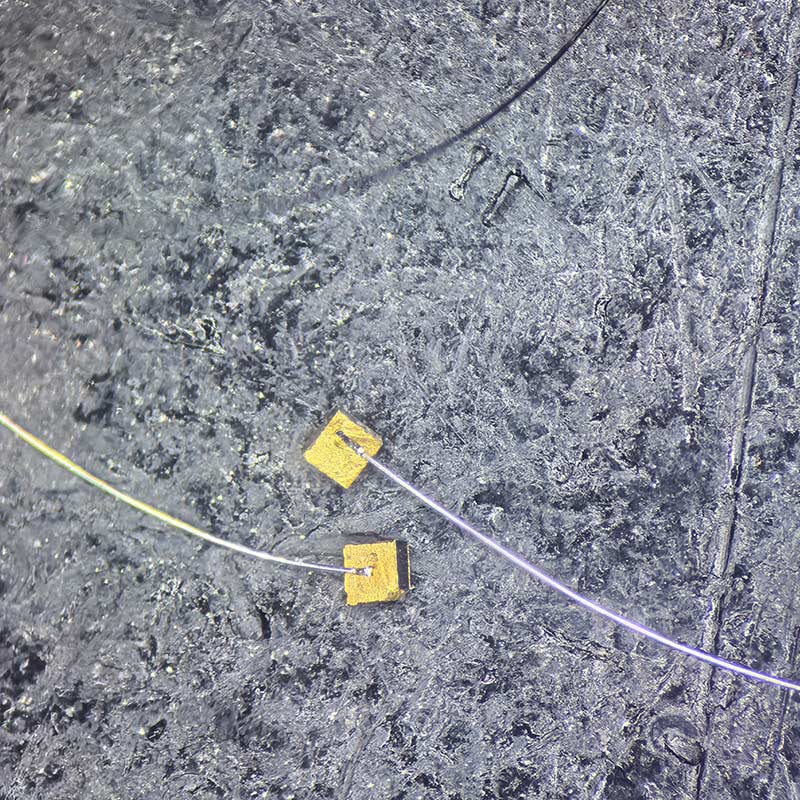

Weldable Wires	Capable of wedge bonding various metal wires, including gold ribbon, enameled wire, silver wire, copper wire and platinum wire
Gold Ribbon Size	20-25μm in thickness, 10-1400μm in width
Welding Wire Diameter	Φ0.01 mm - Φ0.5 mm
Welding Pressure	Continuously adjustable in the range of 2.78-19.46N
Output Pulse Width	Continuously adjustable in the range of 0-19ms
Output Pulse Amplitude (Voltage)	Continuously adjustable in the range of 0-1.99V
Power Input	220V, 60HZ, 180VA
Maximum Welding Power	500VA
Welding Frequency	Up to 120 times per minute
Anti-static Performance	Effective anti-static protection
Grounding	Good grounding performance
