HY-CS3025 Semiconductor Handler is dedicated to visual defect inspection, electrical performance testing, and finished product packaging of chip tantalum capacitors and multi-layer aluminum capacitors.
Brand :
HYRNUSItem No. :
HY-CS3025Order(MOQ) :
1 SetWarranty :
One-Year Warranty and Lifetime MaintenancePayment :
T/TLead Time :
7-35 DaysProduct Origin :
ChinaTantalum & Aluminum Capacitor Test & Sorting Machine
Product Introduction

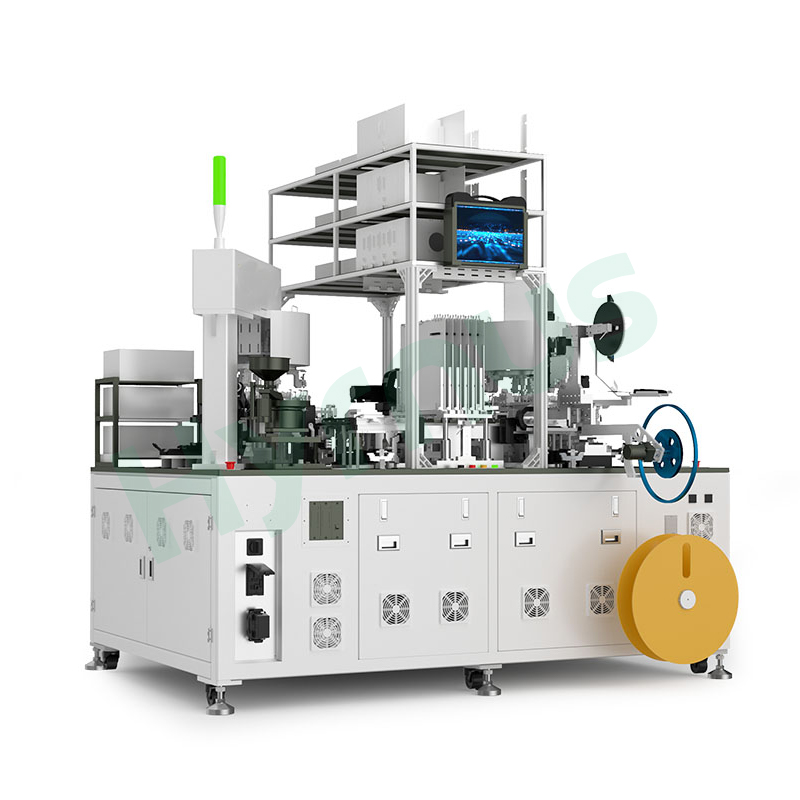

HY-CS3025 Test & Sorting Machine is compatible with tape and bulk feed, integrating shaping, AI visual inspection, high-precision electrical performance testing, and finished product taping into one single platform.It adopts a standard turret with imported DD motors, delivering positioning accuracy of ±0.01 mm and an UPH of up to 60K. Capacitance testing offers high repeatability and strong insulation performance. The AI vision system supports multi-sided inspection with accuracy ≥50 μm, paired with an Industry 4.0 data system for full end-to-end traceability.

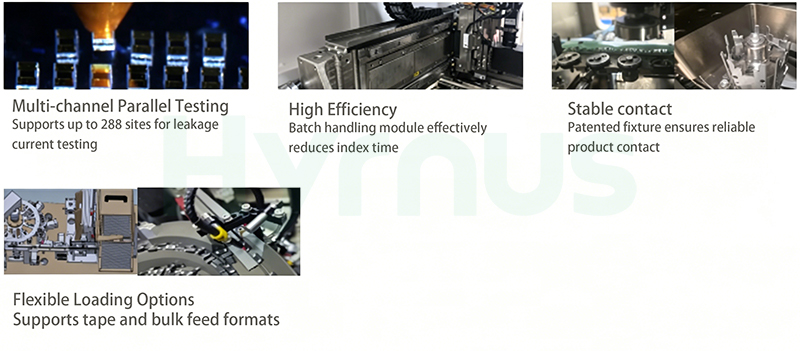

Key Test & Environmental Capabilities
Its modular design enables one-click changeover to adapt to consumer electronics, automotive electronics and other fields. With an inspection accuracy rate ≥97%, it helps production lines improve quality and efficiency while reducing operational and defect-related costs.
Application ScenariosIncluding but not limited to testing of chip tantalum capacitors and multi-layer aluminum capacitors. Please contact us for special requirements.
Technical Specifications
| Item | Specification |
| Model | HY-CS3025 |
| Chip Package Sizes | Case A, B, C, D, etc. |
| Input Format | Bulk |
| Output Format | Tape & Reel (T&R) |
| Equipment UPH | ≥ 14K (leakage current charge/discharge time ≤ 48 s) |
| Main Test Items | Capacitance & Dissipation Factor, ESR, Leakage Current, Residual Voltage |
| Front & Back Inspection | Inspection accuracy > 50 µm; detectable at contrast > 30Defect types: blurred labels (mixed components), scratches, pinholes, chipping, missing cores, cracks, contamination, lead deformation, lead lifting, over/under-length leads, lead copper exposure, lead overflow, lead burrs, edge indentations, tin whiskers, etc. |
| Equipment Dimensions | 2100 mm (L) × 1500 mm (W) × 2000 mm (H) |
