Fast 3D CT X-Ray Inspection Equipment for Laminated Power Cell OH Detection

Product Introduction

HY-XRB8101 Fast 3D CT X-Ray Inspection Equipment is a dedicated non-destructive testing device customized for new energy manufacturers. Targeting laminated power cell production lines, this 3D CT X-Ray machine focuses on Open Hole (OH) defect inspection at cell corners to realize full-process online quality supervision. The system relies on X-ray penetration imaging: it irradiates cell corners from multiple perspectives, and a flat-panel detector captures continuous 2D projection images. Professional 3D reconstruction algorithms convert these images into high-resolution 3D models, supporting free virtual cross-section observation of internal cell structures.

Equipped with intelligent AI visual algorithms, the equipment can automatically identify and classify Open Hole defects. It delivers consistent high-precision inline inspection, effectively boosting finished cell yield and cutting manual testing costs for large-scale laminated cell factories.

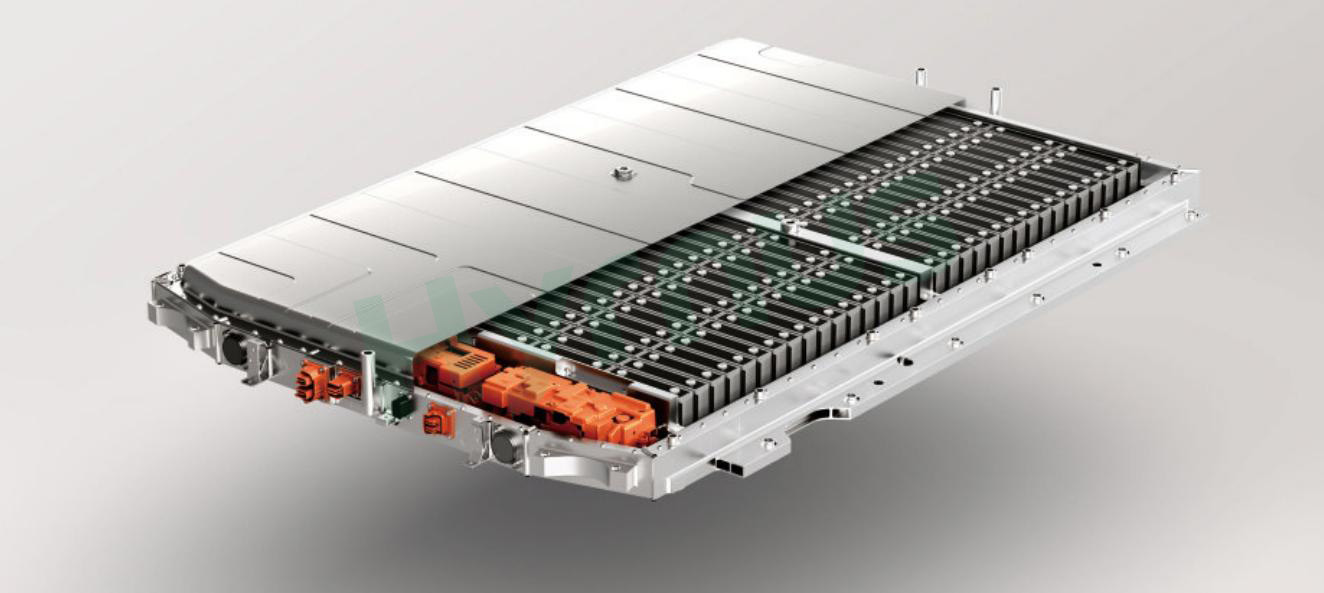

Product Application

Product Features

1. Customizable Image Algorithms

Develop dedicated software algorithms according to customers’ product characteristics to realize fully automatic defect identification and detection.

2. High Precision

Equipped with high-precision bearings to deliver high rotational runout accuracy of the imaging system.

3. High Resolution

Achieve an imaging resolution up to 10μm.

4. High Efficiency

Adopt precise motion control and advanced algorithms to complete single-corner scanning and reconstruction within less than 3 seconds.

5. Automatic Corner Switching

One-time product clamping supports automatic scanning switching for four corners.

6. Image Enhancement

Automatically enhance slice images after reconstruction.

7. AI Algorithms

Powerful AI technology enables an ultra-low false detection rate.

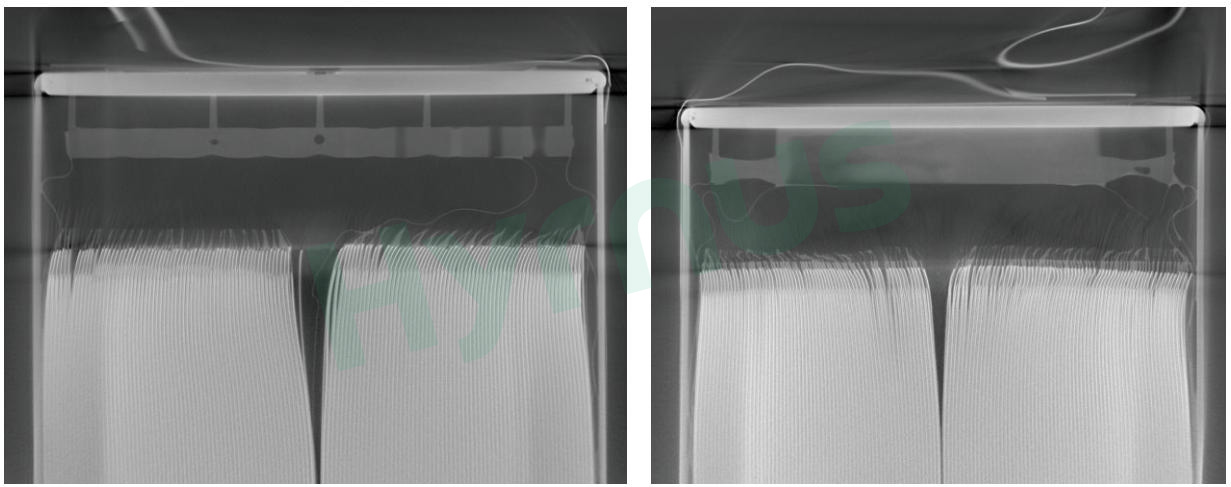

Inspection Result Images

Prismatic Cell Inspection



Technical Specifications

Item			Specification
Model			HY-XRB8101
Inspection Object			Laminated Battery
Inspection Item			OH (Open Hole Defect)
Imaging Specifications	Imaging Method	3D Tomographic Imaging Using Multiple Projection Images
	Imaging Resolution	Selectable According to the Inspection Object
	X-ray Tube	Micro-focus Closed Tube
	Flat Panel Detector	FPD (Flat Panel Detector)
Scanning Mode			Cone Beam Scanning
JIMA Card Resolution (Image Definition)			≤ 5 μm
Magnification			15×
Inspection Object	Product Weight		≤ 10 kg
	Product Dimensions		L: 300–650 mm; W: 60–150 mm; T: 1–25 mm
Measurement Function			OH Defect Analysis
Equipment Specifications		Overall Dimensions	L (Front) 2900 × W 2100 × H 2000 mm (excluding monitor)
		Weight	Approx. 11 tons
		Power Supply	AC 380/220V ±10%, 50 Hz
		Power Consumption	9 kW
		Air Pressure	0.4–0.6 MPa
		Motion Control Method	Mouse & Joystick & Keyboard
		Main Controller	Workstation PC
		Radiation Leakage	< 1 μSv/h
