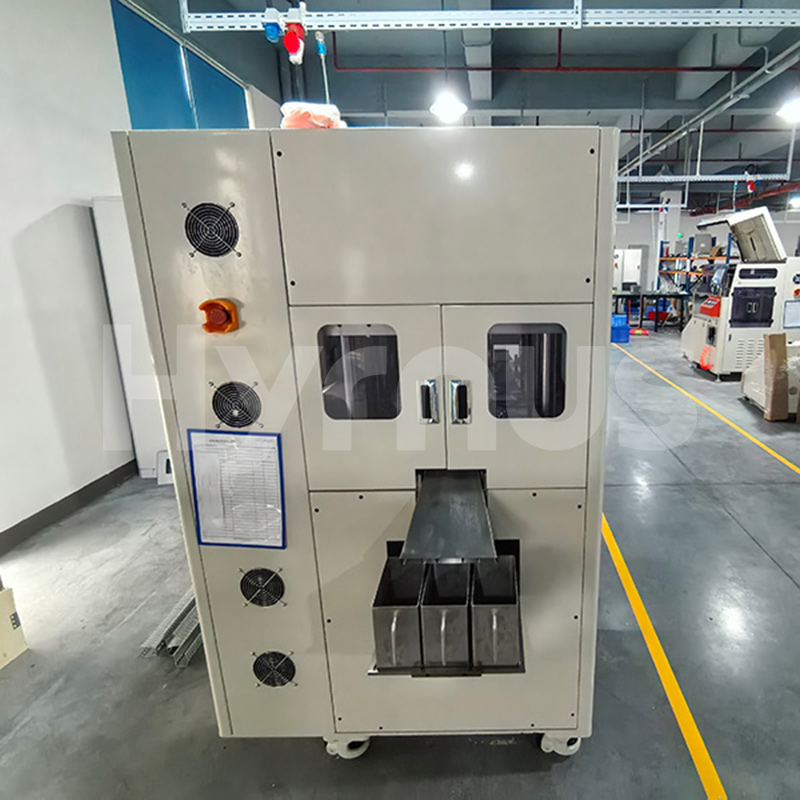

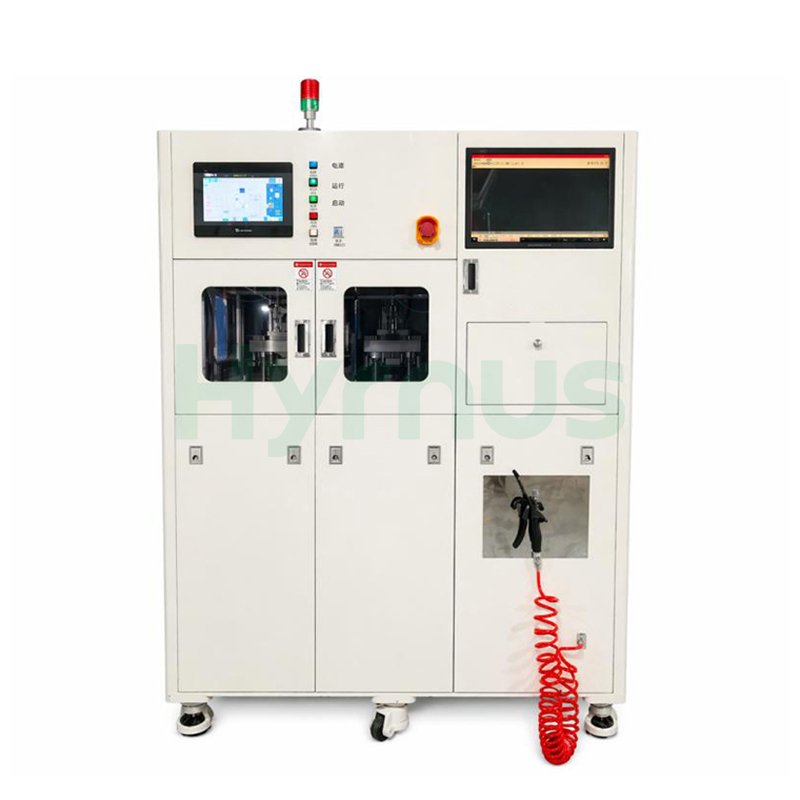

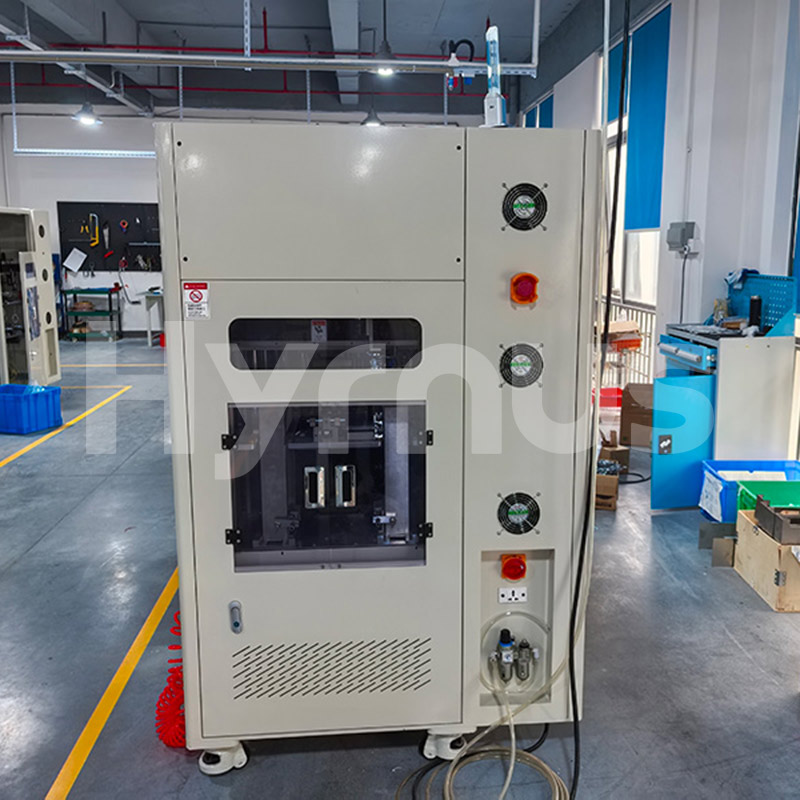

Automatic Trim and Form System for TO252-6R Package

HY-TF210 Semiconductor Lead Forming Equipment employs a two-mold configuration: Mold 1 performs degate, trim 1, and trim 2 with CCD inspection; Mold 2 performs cut-off, form 1, form 2, and separation. Each stroke processes 24 positions (192 pieces per leadframe), achieving punching burr of ≤0.08mm, punching deviation of center ≤0.03mm, lead coplanarity of ≤±0.15mm, and "S" shaped lead control of ≤±0.15mm, with no lead crush, molded body damage, or direct impact on molded body allowed. The system features dual magazine loading with no stop for magazine change, servo-driven feeding with torque-controlled anti-jamming, servo-driven pick-up with presence and drop detection, and servo-powered punching via crankshaft connecting rod mechanism with stepless digital speed adjustment and overload protection. Key specifications include tungsten steel/high-speed steel for punching tools and ASP23 for forming tools, tool regrinding up to 2 times with shim replacement, three-plate structure with ball bearing cage guides, and comprehensive mistake-proofing including mechanical anti-reverse and tool poka-yoke. The system operates on 3-phase 5-wire 380V with rated power of 8.5kW, requires compressed air of 0.4–0.7MPa at 12 L/min, and measures 2600 × 1100 × 1800 mm with a weight of 1250kg. It is controlled by PLC with a 10.4" touch screen HMI, offering simplified Chinese interface, automatic/manual modes, and three-tier user permissions (Operator/Technician/Administrator), with parameter initialization, tool life reminder, and complete documentation including electrical schematics, user/maintenance manuals, and spare parts drawings.

Product Specification

System Performance Indicators
UPH	≥ 70k / hour
Punching Stroke Rate	50–60 strokes / minute
MTBA (Mean Time Between Assistance)	≥ 40 minutes
MTBF (Mean Time Between Failures)	≥ 120 hours
MTTA (Mean Time To Resolve)	≤ 5 minutes
Downtime Rate	≤ 3%
Mold Functional Indicators
Process Step Configuration	Mold 1: Degate + Trim 1 + Trim 2 (with CCD)
	Mold 2: Cut-off + Form 1 + Form 2 + Separation
Punching Positions (192p/leadframe)	24 Pcs / Step
Punching Burr	≤ 0.08 mm
Punching Deviation	Center ≤ 0.03
Lead Coplanarity (Warpage)	≤ ± 0.15
"S" Shaped Lead	≤ ± 0.15
Lead Crush Damage	Not allowed
Molded Body Crush Damage	Not allowed
Direct Impact Force on Molded Body	Not allowed
Punching Tool Material	Tungsten steel / High-speed steel
Forming Tool Material	ASP23
Punching Yield	≥ 99.95%
Tool Regrinding Times	2 times
Installation After Tool Regrinding	Replace shims
Structure	Three-plate type
Guide Structure	Ball bearing cage
Mistake-proofing	Yes
Position Detection	Yes
Type Identification	Yes
Mechanical Anti-reverse	Yes
Tool Poka-yoke	Yes
Mold Fixing	Standard guide rail and limit block
Loading Section
Loading Method	Dual magazine loading, no need to stop for magazine change
Magazine Position Detection	Yes
Magazine Reverse Detection	Yes
Magazine Over-travel Protection	Yes
Magazine Home & Limit Detection	Yes
Infeed Section
Feeding Power	Servo motor
Anti-jamming Function	Torque control
Parameterized Position Setting Function	Yes
Product Presence Confirmation Function	Yes
Pick-up Section
Pick-up Power	Servo motor
Leadframe Presence Detection	Yes
Drop Detection During Pick-up	Yes
Home & Over-travel Protection	Limit switch
Parameterized Position Setting Function	Yes
In-Mold Transfer Section
Anti-jamming Function	Yes
Pawl Lower Position Detection	Yes
Pawl Lifting Movement	Cylinder driven
Pawl Lateral Movement	Servo driven

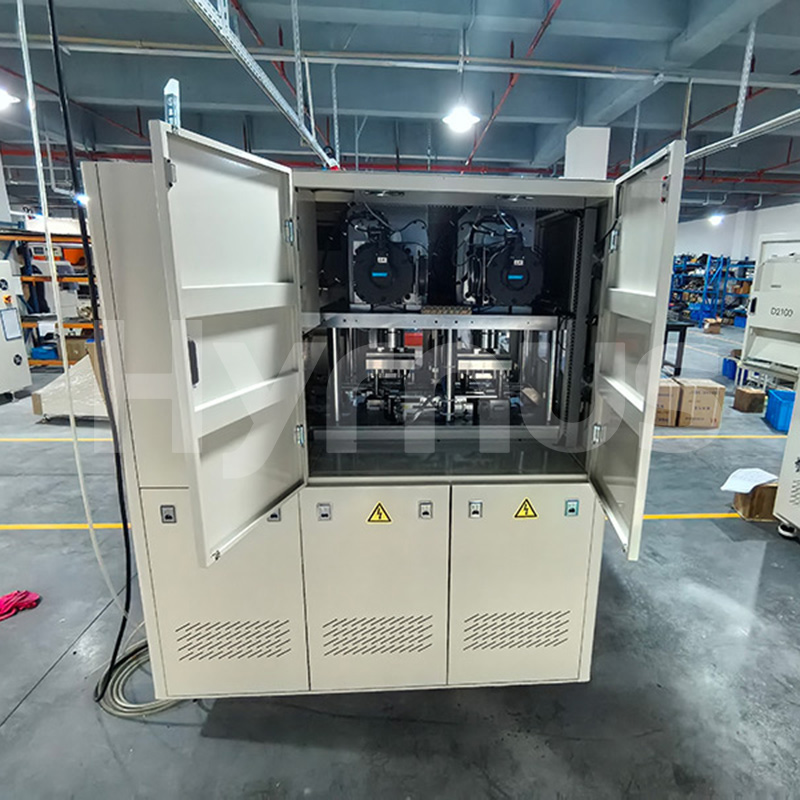

Power Section
Punching Power	Servo motor
Power Mechanism	Crankshaft connecting rod mechanism
Speed Adjustment	Stepless, digital adjustment
Working Position / Setup Position Conversion Function	Yes
Overload Protection Function	Yes
Scrap Auxiliary Discharge	Negative pressure fan
Unloading Section
Unloading Method	Bulk collection
Counting Function	Yes
Control Section
Control Component	PLC
HMI	10.4" touch screen
Interface Language	Simplified Chinese
Control Mode	Automatic / Manual
Control Program	Not provided
Operation Interface
User Permissions	Operator / Technician / Administrator
Parameter Initialization Function	Provided
Tool Life Reminder Function	Yes
Documentation
Electrical Schematic Diagram
User Manual, Maintenance & Service Manual
Spare/Wear Parts Drawings
Pneumatic Components	SMC, AIRTAC, CKD
FA Parts	MISUMI, HIWIN
Servo Motor	Inovance, DELTA, Invt
Touch Screen	Weinview, PROFACE
PLC	KEYENCE, Inovance, FATEK
Maintenance Item	Maintenance Cycle
Cleaning and lubrication of moving parts	Once per month
Sensor surface cleaning	Once per month
Crankshaft lubrication	Once every two months
Mold cutting edge inspection	Once per day
Crankshaft clearance inspection	Once every six months
Mold cleaning and maintenance	Once every three days

Terms of use

Equipment Outer Dimensions (LWH mm)	2600x1100x1800 (reference dimension, subject to actual product)
Equipment Weight (kg)	1250
Equipment Power Supply (V)	3-phase 5-wire 380V
Equipment Compressed Air Supply (Mpa)	0.4-0.7
Equipment Compressed Air Consumption (lpm)	12
Equipment Operating Temperature (°C)	5-35
Equipment Operating Humidity (%)	75
Equipment Rated Power (kW)	8.5
Equipment Water Supply Pressure	None
Equipment Water Consumption	None
Equipment Vacuum Requirement (Mpa)	None
