HY-TF200L adopts dual lower flywheel stamping system for semiconductor post-molding lead frame trimming, forming & singulation, compatible with SOT, TO, SOP and DIP packages. It runs 80–120 strokes per minute with PLC control and full safety interlocks, supporting optional CCD visual inspection and MES system networking. Comes with full series precision mold spare parts, it meets mass IC packaging production requirements.
Brand :
HYRNUSItem No. :
HY-TF200LOrder(MOQ) :
1 SetWarranty :
One-Year Warranty and Lifetime MaintenancePayment :
T/TLead Time :
7-35 DaysProduct Origin :
ChinaDual Lower Flywheel Automatic Trim Form Singulation Machine for Semiconductor Lead Frame Processing
Product Introduction
HY-TF200L Dual Lower Flywheel Automatic Trim Form Singulation Machine is professional semiconductor post-molding processing equipment, dedicated to trimming, forming and singulating pins and leads of molded semiconductor lead frames. Widely applicable to mainstream SOT, TO, SOP and DIP IC packaging products, it enables high-speed, stable and automated mass production for semiconductor packaging manufacturers.

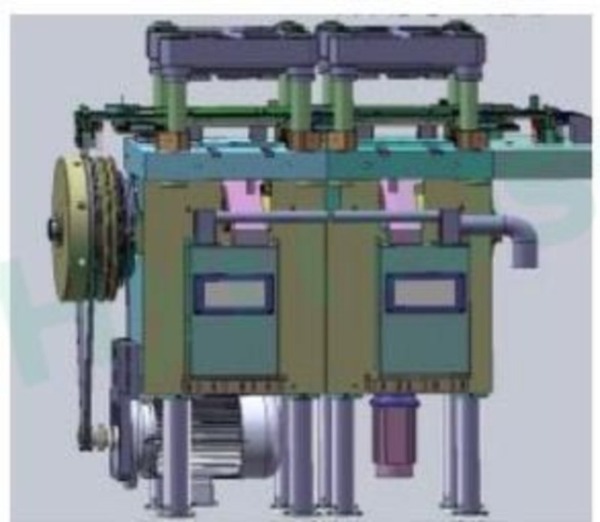

Unlike conventional single-power trim equipment, our dual lower flywheel stamping structure provides stronger punching force and uniform stress distribution, extending the service life of precision molds. It effectively reduces burrs and pin deformation to reduce product rejection rates during lead frame processing. Equipped with interchangeable customized precision mold spares, one machine can flexibly switch between multiple packaging specifications to lower your equipment investment costs.
Product Application
This equipment is dedicated to trimming, forming and singulating molded semiconductor lead frames, compatible with mainstream SOT, TO, SOP and DIP packaging for mass IC packaging production.
Product Features
1. Dual lower flywheel power system, even stamping force, less pin burr & long mold life
2. 80–120 SPM high-speed punching, cam feeding for precise lead frame positioning
3. Dual elastic jigs non-stop cyclic feeding, tube & bulk box dual receiving modes
4. Mitsubishi/Yonghong PLC + touch screen, one-click parameter recall for SOT/TO/SOP/DIP
5. Full safety interlock: light curtain, door sensor & emergency stop button
6. Optional CCD visual defect inspection & MES factory networking
7. Interchangeable precision mold spares, one machine for multiple package types

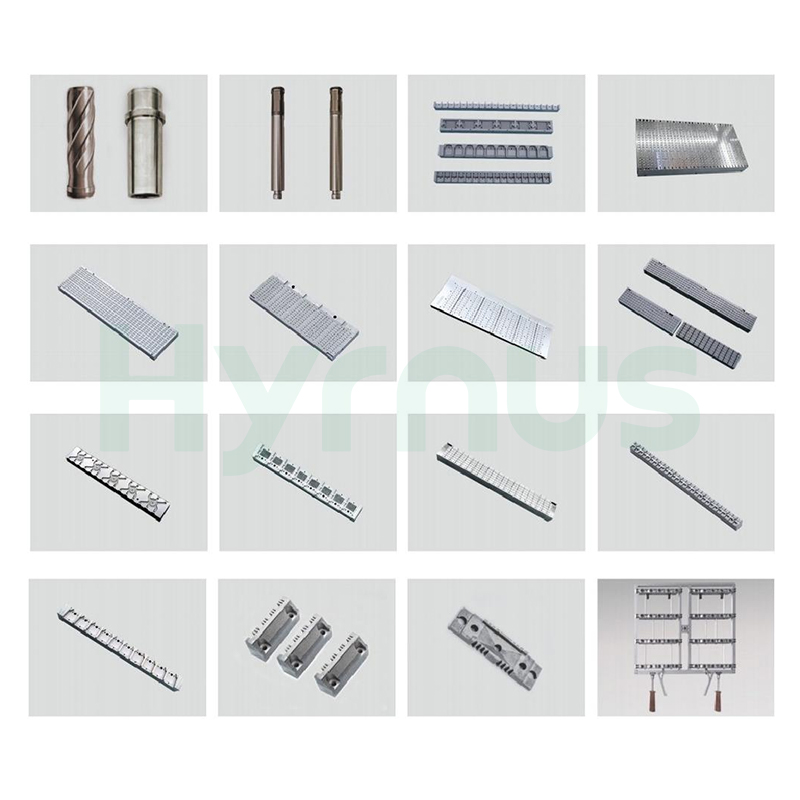

Precision Mold Spare Parts
Technical Specifications
| Item | Specification |
| Stamping System | Automatic Stamping System with Dual Lower Flywheel Power |
| Application | Trim, form and singulate pins and leads of molded semiconductor components |
| Compatible Package Types | SOT, TO, SOP, DIP |
| Stamping Speed (SPM) | 80–120 strokes per minute |
| Control System | Mitsubishi / Yonghong PLC + Touch Screen + Operation Buttons |
| Power System | Motor + Clutch |
| Mold Opening & Closing Mechanism | Servo Motor + Gear Set |
| Feeding Mechanism | Cam Feeding |
| Loading Mechanism | Dual independent spring jigs for non-stop cyclic feeding |
| Receiving Mechanism | Tube collection or bulk material box storage |
| Safety Configuration | Light curtain, door open sensor, full safety interlock & emergency stop button |
| Optional Accessory 1 | CCD Visual Inspection Device |
| Optional Accessory 2 | MES System Networking Function |
Product Details
HY-TF200U is specially designed for post-molding lead trimming, forming and separation of semiconductor packaging components. Compatible with SOT, TO, SOP, DIP, IPM, photovoltaic modules & optocouplers. Equipped with full servo drive system, dual magazine non-stop feeding, safety light curtain protection, optional CCD visual inspection and MES networking function, punching speed up to 30–60 SPM, stable high-efficiency mass production solution for IC packaging industry.
HY-TF100 is designed for post-mold semiconductor IC lead trimming, pin forming and singulation. Compatible with mainstream miniature packages including SOT, SOD, TSOT and PDFN, it delivers a punching speed of 120–200 SPM. Featuring servo feeding and dual non-stop spring clamps, this equipment significantly boosts throughput of semiconductor packaging lines. It is equipped with complete safety protection as standard, while optional CCD visual inspection and MES networking are available to support smart factory digital management.
HY-TFS210 Lead Cutting Machine is an automatic trim and form system specifically designed for SMA, SMB, and SMC package products. It features a simple structure with stable and reliable performance, a small footprint, fast and stable operation, low noise, and easy operation and maintenance, significantly reducing labor intensity.
HY-TF110 Semiconductor Post Mold Equipment is an automatic trim and form system specifically designed for SOT23-3L-20R package products.Achieving a remarkable 580K UPH with a punching stroke rate of 130 strokes per minute，maximizes throughput while maintaining tool life of 1.5 million strokes.
HY-TF221 IC Trim and Form Machine is an automatic trim and form system specifically designed for TO220 package products.it an efficient and cost-effective Trim and Form Machine for modern semiconductor packaging lines seeking higher throughput, superior product quality, and lower operating costs.
HY-TF210 Trim Roll Former is an automatic trim and form system specifically designed for TO252-6R package products. It delivers a throughput of ≥70k per hour with a punching stroke rate of 50–60 strokes per minute, and features MTBA of ≥40 minutes, MTBF of ≥120 hours, MTTA of ≤5 minutes, and downtime rate of ≤3%.
HY-DS30K is an high-speed integrated dicing saw developed for post-mold singulation of semiconductor molded substrates. It supports an integrated processing flow including substrate cutting, cleaning, vision inspection, sorting and tray binning, which greatly improves the production efficiency of standard semiconductor backend packaging processes.
