HY-PS8180 Fully Automatic Semiconductor Molding System is designed for efficient encapsulation of ICs and power devices, ensuring stable quality and reliable protection.
Brand :
HYRNUSItem No. :
HY-PS8180Order(MOQ) :
1 SetWarranty :
One-Year Warranty and Lifetime MaintenancePayment :
T/TLead Time :
7-35 DaysProduct Origin :

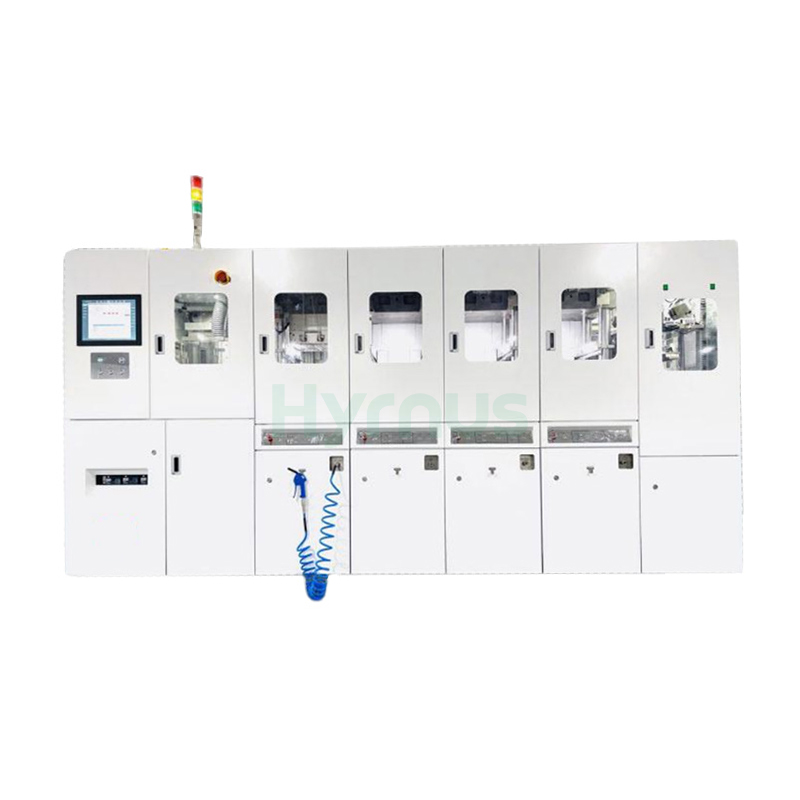

ChinaFully Automatic Semiconductor Molding System for IC Packaging
Product Introduction
HY-PS8180 Fully Automatic Semiconductor Molding System is designed to improve production output, yield, and process reliability for high-volume semiconductor packaging. Through automated operation and precise process control, it reduces manual intervention, minimizes production variability, and ensures consistent molding quality. The system also supports intelligent monitoring, production data recording, and process traceability, making quality management more efficient. With stable performance, easy maintenance, and lower operating costs, it is suitable for various package types, including SOT, SOP, TOLL, TO, QFN, DFN, and BGA.
Product Features
Application Fields
This fully automatic molding system is applicable for a wide range of semiconductor package types, including SOT, SOP, TOLL, TO, QFN, DFN, and BGA.
Applicable Industries
*Integrated circuit packaging and testing
*Discrete semiconductor devices
*Optoelectronic devices
Technical Parameter
| No | Parameter | Specification |
| 1. | Model | HY-PS8180 (180T) |
| 2. | Mold Quantity per Cycle | 2 leadframes per stroke per press |
| 3. | Number of Presses | 1 to 4 presses |
| 4. | Leadframe Size (L/F) | Width: 20–100mm / Length: 124–300mm / Thickness: 0.1–0.6mm |
| 5. | Resin Compound Size | Diameter: 11–20mm (±0.2mm) / L/D ratio: 1.2–1.7 (Max 35mm) |
| 6. | Clamping Force | 98–1764 kN (Max 180T) |
| 7. | Injection Pressure | 4.9–29.4 kN (Max 3T) |
| 8. | Cycle Time (Mechanical) | 28 sec (Min) |
| 9. | Machine Dimensions (4 Presses) | Width: 1833mm / Height: 2050mm / Length: 4663mm |
| 10. | Machine Weight (4 Presses) | 14500 kg |
| 11. | Power Supply | 3-phase 380VAC ±10% / Power: ≤51 KW (4 presses) |
| 12. | Compressed Air Supply | Pressure ≥0.5Mpa / Flow ≥350L/min / With air filter |
| 13. | Exhaust Requirement | ≥3000 L/min |
| 14. | Ambient Temperature | 0–40°C (non-freezing) |
| 15. | Ambient Humidity | ≤75% RH (non-condensing) |
| 16. | Auto Lubrication | Optional |
| 17. | Resin Weighing | Optional |
| 18. | Vacuum System | Optional |

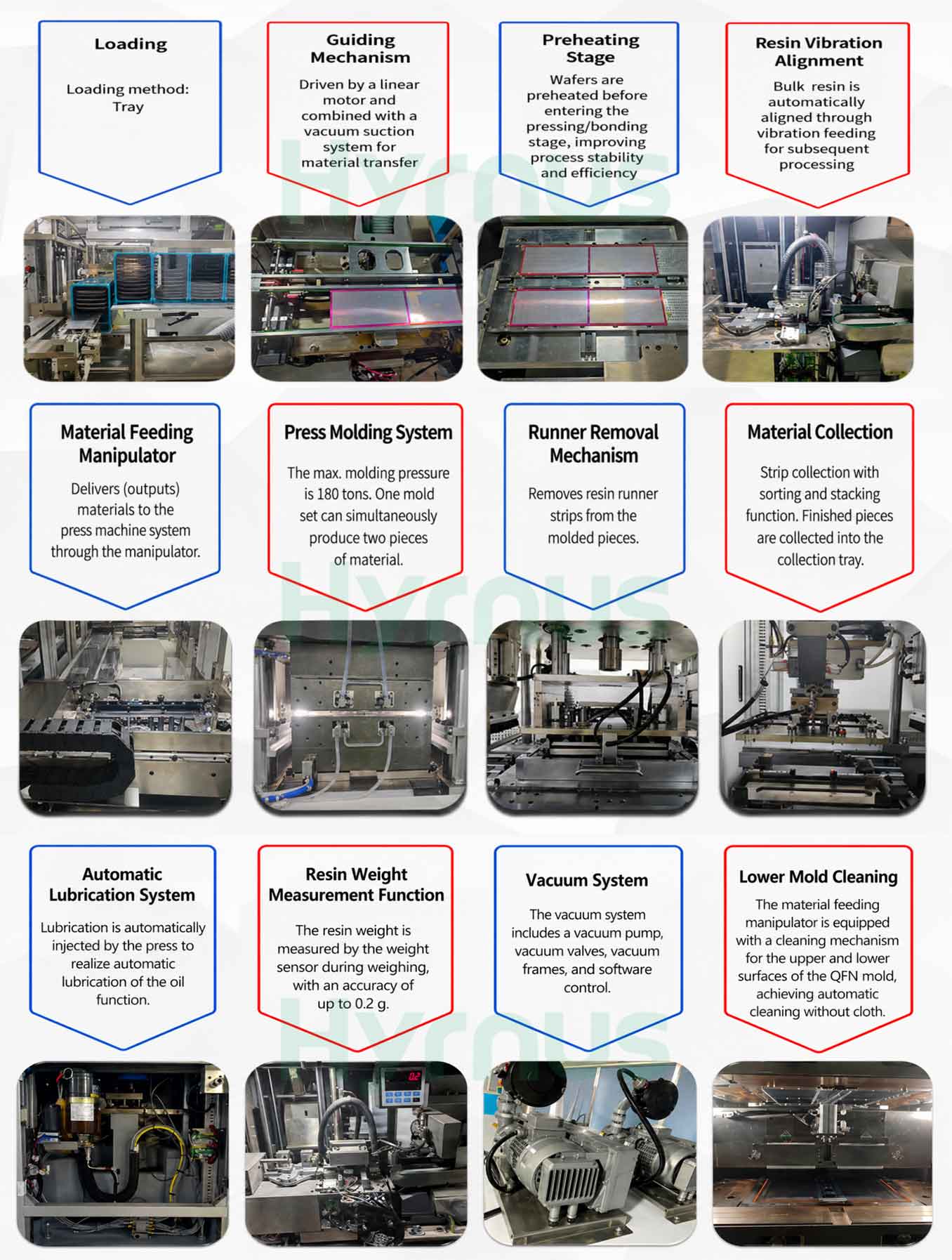

Process
Product Details
HY-PM23 MGP plastic molding die is customized for SOT23-20R semiconductor packaging. It is equipped with 6 mold boxes; each mold box holds 2 lead frames, with a total of 12 lead frames per full mold. All mold boxes and internal components are fully interchangeable and feature a quick disassembly and replacement structure.
HY-AU400 is an integrated machine serving as professional auxiliary equipment for IC plastic molding molds. It realizes automatic lead frame preheating and molding compound pellet arrangement. Fitted with robotic arms and multi-point temperature control, it adapts to all IC packaging varieties, reduces manual contamination, lifts production efficiency, and supports optional MES system networking.
HY-MF300 is auxiliary equipment for plastic packaging molds, capable of one-time removing runner and gate residual flash for all IC packages. Equipped with Mitsubishi/Yonghong PLC control and full safety interlocks including light curtain, door sensor, E-stop and two-hand buttons, it delivers stable performance and universal compatibility for all semiconductor packaging production lines.
HY-PM252-6R Molding is a high-precision molding mold designed for TO252-6R package products. The mold features a universal mold base capable of accommodating 6 mold boxes with quick mold box change design, utilizing a bottom-to-top multi-pot injection design driven by four built-in high-temperature-resistant, leak-proof hydraulic cylinders with a balanced injection head drive plate.
The HY-GD001/HY-GD803/HY-GD001A Automatic Degating Machine is designed for removing gates and runners from molded semiconductor leadframes. It combines precise punching, automatic air blowing and waste collection, while the mistake-proof mold and safety light curtain ensure reliable and safe operation.
HY-PS8120 Molding System is a fully automatic molding system designed for semiconductor packaging, supporting a wide range of package types including SOT, SOP, TOLL, TO, QFN, DFN, and BGA.
HY-LB200 Optoelectronic Drying Oven is designed for baking and drying electronic and hardware products at temperatures below 200°C. Equipped with PID temperature control, adjustable air circulation, timing settings, and multi-level over-temperature protection, it ensures stable and reliable operation. The stainless-steel chamber offers excellent durability and corrosion resistance, making the oven especially suitable for LED diodes, digital displays, backlights, and similar optoelectronic products.
