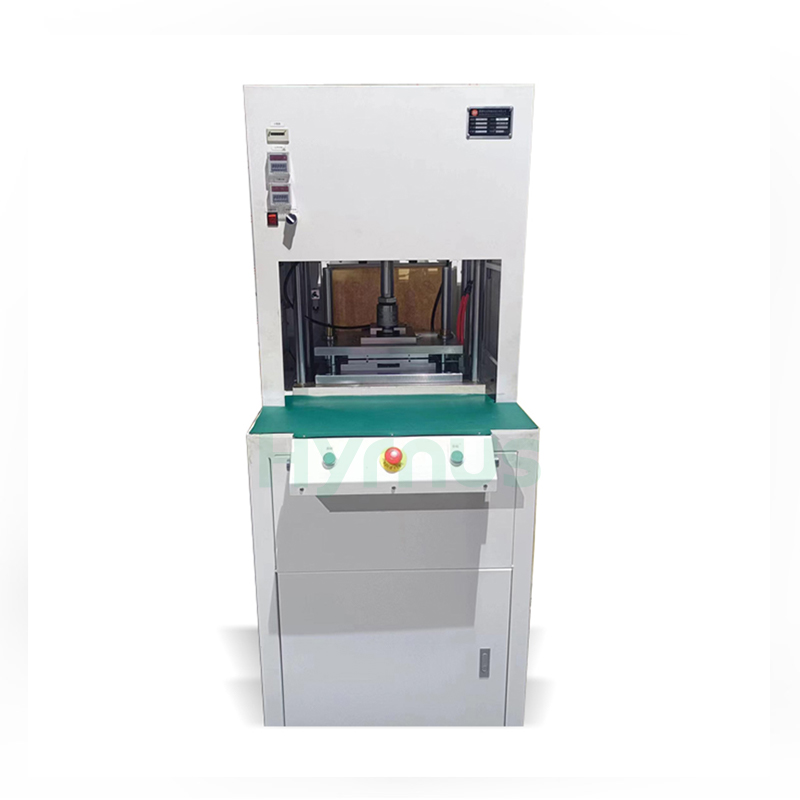

The HY-GD001/HY-GD803/HY-GD001A Automatic Degating Machine is designed for removing gates and runners from molded semiconductor leadframes. It combines precise punching, automatic air blowing and waste collection, while the mistake-proof mold and safety light curtain ensure reliable and safe operation.
Brand :
HYRNUSItem No. :
HY-GD001 / HY-GDS03 / HY-GD001AOrder(MOQ) :
1 SetWarranty :
One-Year Warranty and Lifetime MaintenancePayment :
T/TLead Time :
7-35 DaysProduct Origin :
ChinaSemiconductor Package Automatic Degating Machine
Product Introduction
The HY-GD001/HY-GD803/HY-GD001A Automatic Degating Machine is designed for gate and runner removal after semiconductor molding, with the standard configuration suitable for TO252-6R products. The operator manually loads and unloads the leadframe, while the machine automatically completes precision punching, air blowing and scrap collection.
Its mold features an anti-reverse positioning design, precision ball guide components and a 1-ton pneumatic cylinder to ensure stable processing. The residual flash after punching can be controlled within 0.1 mm without damaging the molded body or leadframe. A safety light curtain and durable tool structure further support safe, reliable and efficient production.
ProcessingManual loading of leadframe (mold is equipped with anti-reverse mistake-proofing design). During mold opening for deflashing, residual gate and runner waste are removed and fall into the scrap box below. Automatic air blowing. Manual removal of finished products.
Applicable Product
| Item | Applicable Product |
| HY-GD001 | TO220 |
| HY-GDS03 | SMA/SMB/SMC |
| HY-GD001A | TO252-6R |
| No | Item | Requirement |
| 1. | Mold Type | SMA/SMB/SMC runner degating mold, punching the gate and runner of 2 leadframes per stroke. |
| 2. | Operation Method | Manual loading. |
| 3. | Mold Structure | Under sufficient strength guarantee, the mold shall be lightweight, small in size, compact and reasonable in mechanism, with interchangeability of similar parts across all components. |
| 4. | Safety Device | Light curtain (safety grating) must be added. |
| 5. | Residual Flash Length | Residual flash length after punching shall be less than 0.1 mm. |
| 6. | Product & Leadframe Protection | Under normal leadframe positioning, after punching the gate of the molded body, no damage to the molded body or leadframe is allowed. |
| 7. | Tool Service Life | Each tool shall have a service life of 200,000 strokes or more. If the service life is insufficient due to non-human factors such as design, material, manufacturing, or process, the supplier shall provide free replacement. |
Mold Material Selection
| No | Item | Requirement |
| 1. | Degating Upper Blade Material | ASP-23, HRC62-64 |
| 2. | Upper and Lower Mold Plate Material | 55#, quenching and tempering treatment, HRC32-35 |
| 3. | Other Structural Components | SKD-11, HRC58-62 |
| 4. | Mold Surface Treatment | Hard chrome plating |
| 5. | Cylinder | 1T positive pressure cylinder |
| 6. | Guide Components | Precision ball guide posts and guide bushes |
Product Details
HY-PM23 MGP plastic molding die is customized for SOT23-20R semiconductor packaging. It is equipped with 6 mold boxes; each mold box holds 2 lead frames, with a total of 12 lead frames per full mold. All mold boxes and internal components are fully interchangeable and feature a quick disassembly and replacement structure.
HY-AU400 is an integrated machine serving as professional auxiliary equipment for IC plastic molding molds. It realizes automatic lead frame preheating and molding compound pellet arrangement. Fitted with robotic arms and multi-point temperature control, it adapts to all IC packaging varieties, reduces manual contamination, lifts production efficiency, and supports optional MES system networking.

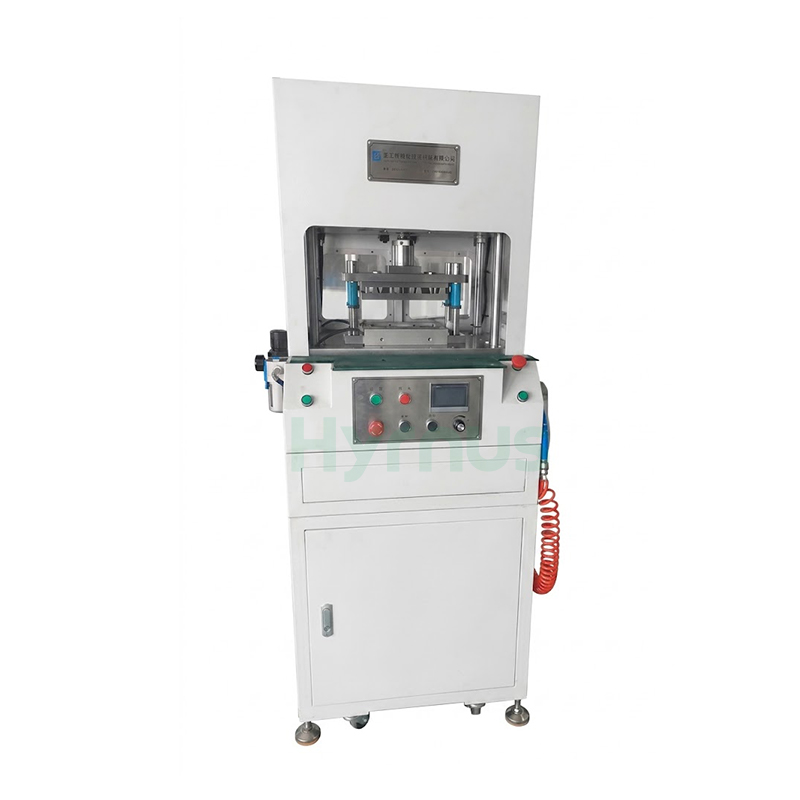

HY-MF300 is auxiliary equipment for plastic packaging molds, capable of one-time removing runner and gate residual flash for all IC packages. Equipped with Mitsubishi/Yonghong PLC control and full safety interlocks including light curtain, door sensor, E-stop and two-hand buttons, it delivers stable performance and universal compatibility for all semiconductor packaging production lines.
HY-PM252-6R Molding is a high-precision molding mold designed for TO252-6R package products. The mold features a universal mold base capable of accommodating 6 mold boxes with quick mold box change design, utilizing a bottom-to-top multi-pot injection design driven by four built-in high-temperature-resistant, leak-proof hydraulic cylinders with a balanced injection head drive plate.

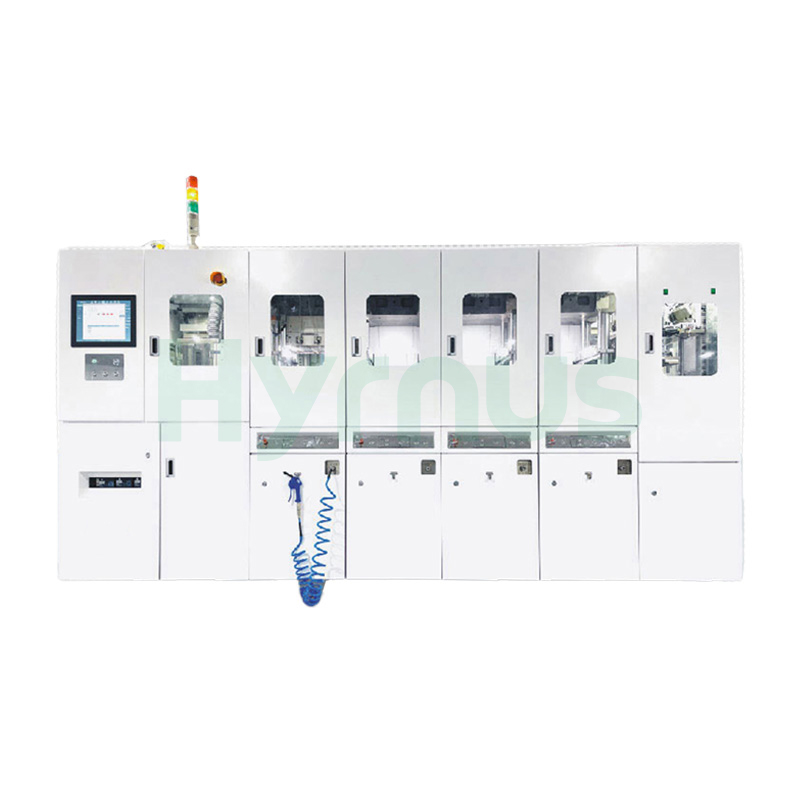

HY-PS8120 Molding System is a fully automatic molding system designed for semiconductor packaging, supporting a wide range of package types including SOT, SOP, TOLL, TO, QFN, DFN, and BGA.

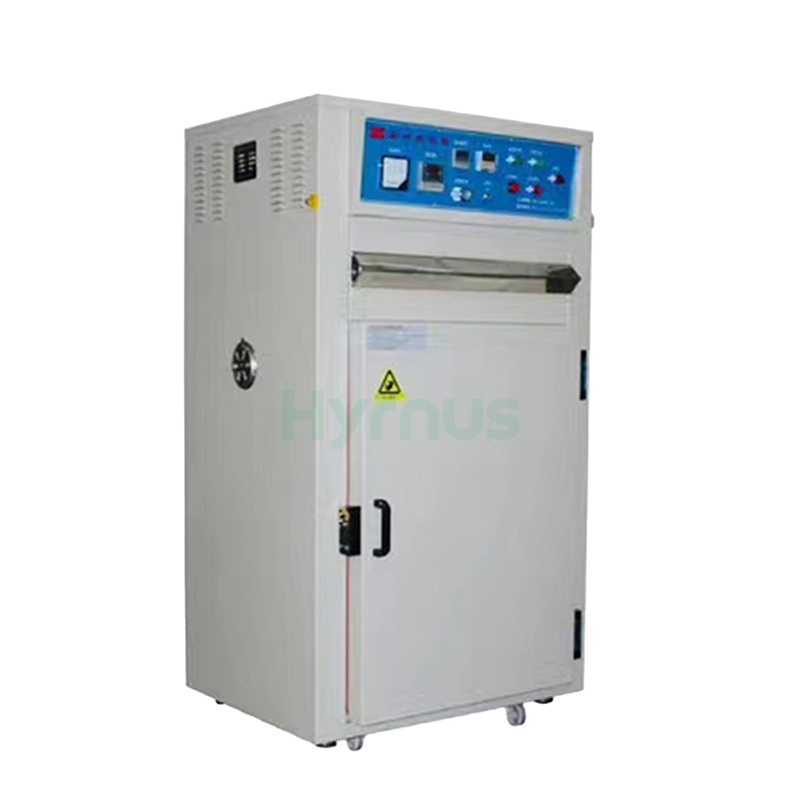

HY-LB200 Optoelectronic Drying Oven is designed for baking and drying electronic and hardware products at temperatures below 200°C. Equipped with PID temperature control, adjustable air circulation, timing settings, and multi-level over-temperature protection, it ensures stable and reliable operation. The stainless-steel chamber offers excellent durability and corrosion resistance, making the oven especially suitable for LED diodes, digital displays, backlights, and similar optoelectronic products.

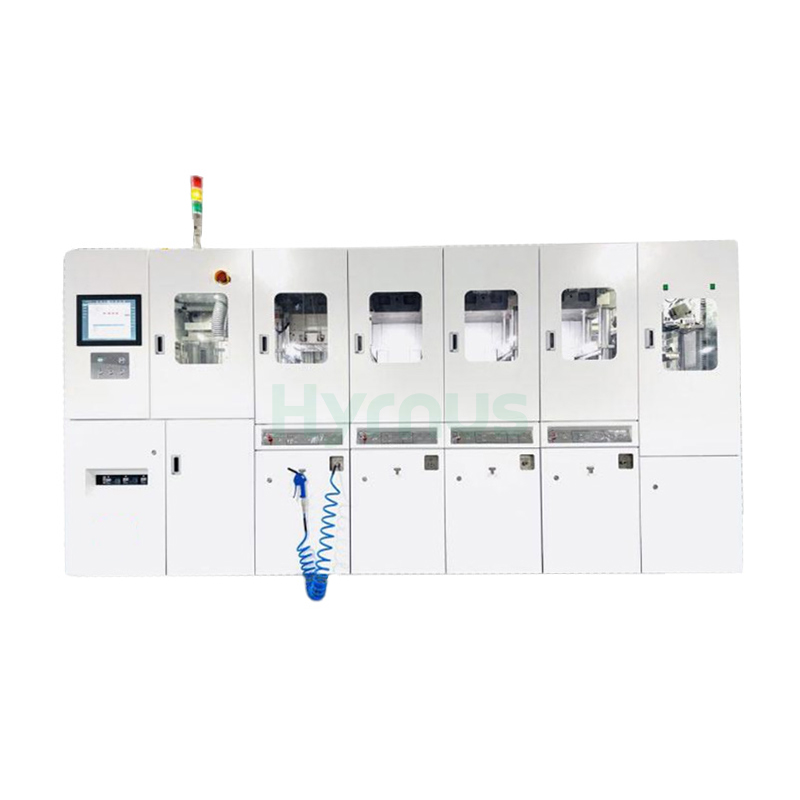

HY-PS8180 Fully Automatic Semiconductor Molding System is designed for efficient encapsulation of ICs and power devices, ensuring stable quality and reliable protection.
