HY-PM23 MGP plastic molding die is customized for SOT23-20R semiconductor packaging. It is equipped with 6 mold boxes; each mold box holds 2 lead frames, with a total of 12 lead frames per full mold. All mold boxes and internal components are fully interchangeable and feature a quick disassembly and replacement structure.
Brand :
HYRNUSItem No. :
HY-PM23Order(MOQ) :
1 SetWarranty :
One-Year Warranty and Lifetime MaintenancePayment :
T/TLead Time :
7-35 DaysProduct Origin :
ChinaMGP Plastic Molding Die for SOT23-20R Semiconductor Packaging
Product Introduction
HY-PM23 MGP Plastic Molding Die is a supporting mold for automatic lead frame and molding compound pellet arranging integrated machine, specially designed for SOT23-20R reel lead frame epoxy encapsulation.
This mold features symmetric double-row layout with 6 independent mold boxes. It can carry 12 lead frames in one molding cycle to improve mass production efficiency for semiconductor packaging lines.
Mold boxes are made of DC53 steel and cavity inserts adopt ASP23 high toughness steel, with hard chrome plating on cavity surface for long service life. The quick swap mold box design reduces machine downtime, and it fits most mainstream 450T MGP molding presses stably. Custom mold layout service is available for different lead frame sizes.
Product Application
1. Mass epoxy encapsulation of SOT23-20R reel lead frames for diodes, transistors and small signal ICs
2. Compatible with 450T automatic MGP molding equipment with automatic lead frame and molding compound pellet feeding system
3. Applied to semiconductor packaging & test factories and electronic component mass production lines
4. Manufacture discrete chips for consumer electronics, IoT devices and automotive control circuits

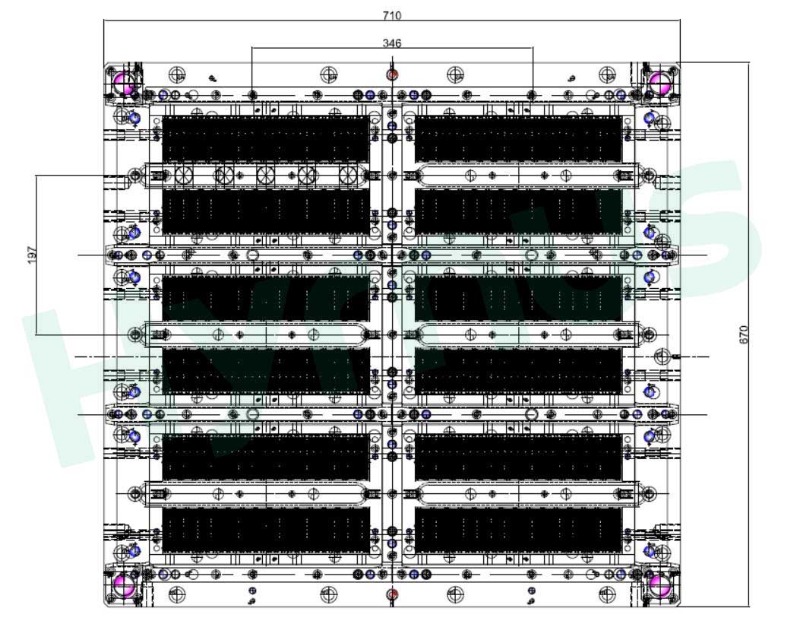

Schematic Layout
Quality Control & Acceptance Standard of MGP Molding Die
Note: All dimensions are in mm unless marked separately.
1. Molding Process Parameters
| Item | Factory Acceptance Standard |
| Mold Temperature | 160~190℃ |
| Injection Pressure | 1000~1600 psi |
| Molding Cycle Time | 8~25 s |
2. Dimensional & Flash Tolerance
| Inspection Item | Factory Acceptance Standard | Standard after 100,000 shots / 1 year |
| X/Y offset of molding compound body | ≤0.05 | - |
| Offset between compound center & lead frame center | ≤0.05 | - |
| Vertical thin flash thickness & height of insert joint surface | ≤0.05 | ≤0.05 |
| Flash thickness & width of central residual cull | ≤0.05 | Thickness ＜0.05, Width ＜2 |
| Flash thickness & width on both sides of runner | ≤0.05 | Thickness ＜0.05, Width ＜1 |
3. Surface Defect Control Standard
| Defect Type | Acceptance Requirement |
| Cavity scratches & ripple marks | None |
| Surface bubbles & pinholes on molding compound | Diameter ＜0.1 |
| Cracks & chipping on molding compound | None |
| Smoke-shaped flash protrusion on ejector pin top | None |
4. Lead Frame & Flash Specification
| Inspection Item | Factory Acceptance Standard | Standard after 100,000 shots / 1 year |
| Flash on runner, vent slot and feed port | Residue shall not affect automatic post-transmission; No raised waste at feed port edge | Residue shall not affect automatic post-transmission |
| Flash on component pins | No black flash (gate area excluded) | No black flash on pins |
| Lead frame after mold opening & demolding | No deformation or positioning hole cracking | No deformation or positioning hole cracking |
5. Internal Void & Incomplete Filling Standard
| Inspection Item | Acceptance Requirement |
| Voids & delamination above chips, bonding pads and die islands | None |
| Voids in other molding compound areas | ≤0.01mm |
| Incomplete filling defects | Not allowed |
6. Demolding Performance & Cavity Hard Chrome Coating Life
| Inspection Item | Factory Acceptance Standard | Standard after 100,000 shots / 1 year |
| Demolding Performance | Smooth demolding; runner & cull without breakage | Smooth demolding; runner & cull without breakage |
| Hard Chrome Coating Service Life | Green molding compound ≥250,000 shots; Standard molding compound ≥300,000 shots, no coating peeling | Free of easily damaged inserts |
MGP Molding Die Configuration & Technical Specifications
| Inspection Item | Technical Standard |
| Compatible Equipment | Fits customer’s 450-ton molding press |
| Mold Base Frame | Universal frame for 6 mold inserts, quick mold insert replacement design |
| Injection System | Bottom-up multi-barrel injection; driven by 2 built-in high-temperature leak-proof hydraulic cylinders with balancer injection drive plate |
| Interchangeability of Mold Inserts | 100% interchangeable all mold inserts, no fixed position limit required |
| Internal Component Interchangeability | All spare parts & inserts inside mold inserts are mutually replaceable |
| Mold Insert Mechanism | Built-in ejector pin plate structure, slide rail design for fast disassembly & replacement |
| Core Mold Material & Hardness | 1. Mold insert: DC53 (HRC59~60) |
| 2. Cavity & inserts: ASP23 (HRC61~63) | |
| 3. Center block: ASP23 (HRC61~63) | |
| 4. Injection barrel: ASP23 | |
| 5. Injection tip: Tungsten steel | |
| Lead Frame Feeding Rack | High-strength floating aluminum alloy rack, lightweight & anti-deformation, smooth feeding without interference |
| Temperature Control System | 24 independent temperature control points; temp deviation between upper & lower mold ≤±5℃; 4 spare thermocouple ports for multi-zone press matching |
| Safety Protection | Built-in over-temperature cut-off sensor on upper & lower mold bases |
| Installation Auxiliary Design | Air-cushion lower base plate; L-shaped fixed pressing plate for multi-model press platforms |
| Insulation & Heat Preservation | Fixed upper insulation cover, quick-detachable lower insulation plates; high-strength thermal insulation plates resistant to long clamping impact |
| Standard Hardware & Interface | Metric screws & nuts; quick slide rail connector for injection drive plate; thermocouple & thermal protection ports matched with customer’s packaging presses |
| Mold Plate Thickness | Upper & lower mold plates thickness ≥40mm |
