ChinaFully Automatic Wafer Grinder with Air-Bearing Spindle and Chuck Table
Product Introduction
HY-WT9530 Fully Automatic Wafer Grinder is equipped with two 9.5kW air-bearing grinding spindles, three workpiece air-bearing spindles and porous vacuum chuck tables, processing hard brittle substrates up to 8-inch, while its maximum mechanical workpiece capacity reaches Ø300mm. Operators only need to load cassettes manually; multiple robotic arms automatically finish positioning, rough grinding, fine grinding, spin cleaning and unloading for continuous unmanned production. The grinding Z-axis has a 120mm travel with a minimum feed of 0.1μm for stable thickness control. Post-grinding wafer TTV≤1.5μm, inter-wafer thickness deviation ±3μm, and surface roughness Ra＜10nm, delivering outstanding flatness and surface finish for backside thinning of various semiconductor wafers.
Product Application
The machine processes substrates up to Ø300mm mechanically, and handles ultra-hard brittle materials including SiC, LN, LT and sapphire within 8-inch. It is widely adopted for precision backside thinning of semiconductor wafers, catering to mass production of wide bandgap semiconductors and optoelectronic materials.

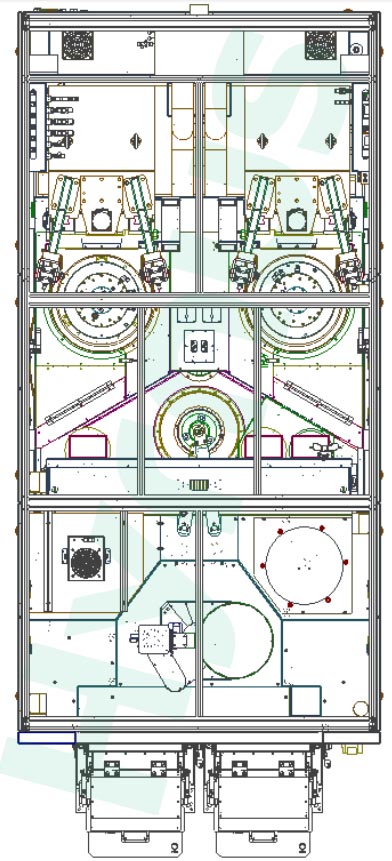

Machine Structure Diagram
Machine Operation Process
| Step | Operation Steps |
| 1 | Manually load wafers into the cassette |
| 2 | The robotic arm takes wafers from the cassette and transfers them to the alignment stage |
| 3 | Arm T1 absorbs wafers from the alignment stage and places them on the chuck table |
| 4 | Wafers undergo Z2 rough grinding and Z1 fine grinding; Arm T2 transfers wafers from the chuck table to the spin cleaning station |
| 5 | The robotic arm picks up wafers from the spin cleaning station and puts them back into the cassette to repeat the whole process |
Specifications
| No. | Item | Parameter |
| 1 | Max Workpiece Size | Ø300 mm |
| 2 | Air-bearing Grinding Spindle | Quantity: 2 |
| Power: 9.5 kW | ||
| Speed: 1000~4000 r/min | ||
| 3 | Workpiece Air-bearing Spindle | Quantity: 3 |
| Speed: 10~300 r/min | ||
| 4 | Grinding Z-Axis | Travel: 120 mm |
| Grinding Feed Rate: 0.0001~0.08 mm/s | ||
| Minimum Feed Step: 0.1μm | ||
| 5 | Holding Method | Porous Vacuum Chuck Table |
| 6 | Post-grinding TTV | 1.5μm |
| 7 | Wafer-to-Wafer Thickness Deviation after Grinding | ±3μm |
| 8 | Surface Roughness after Fine Grinding | Ra＜10 nm |
| 9 | Overall Dimension | 1430×3300×1900 mm |
| 10 | Machine Weight | 5000kg |
Main Frame
| No. | Item | Description |
| 1 | Frame | Lower frame: 50×100 square tube welded support (Standard) |
| Upper frame: 30×60 aluminum profile | ||
| 2 | Cover Plate | Cold rolled sheet with plastic spraying surface (Standard) |
| 3 | Structural Components | 45# steel with chrome plating, aluminum alloy with anodic oxidation |
| 4 | Power Supply | 3-phase 380 V, 50 Hz |
| 5 | Air Supply | ≥0.5 MPa, 400 L/min |
Product Details
Equipped with dual 9.5kW air-bearing spindles and 3 chuck tables for ultra-low vibration. It delivers post-grinding TTV ≤1.5μm, wafer-to-wafer thickness deviation ±3μm and surface roughness Ra＜10nm, greatly lowering chipping rate of SiC substrates.
It supports processing of SiC, LN, LT and sapphire substrates up to 8 inches, compatible with silicon wafers, ceramics and LED substrates. Custom grinding process recipes can be saved in the system.
The Z-axis features a minimum feed increment of 0.1μm for ultra-thin silicon wafer thinning. It maintains stable thickness control on hard brittle materials like SiC without deep subsurface damage.
Air-bearing spindles and grinding wheels are self-developed. Key parts adopt top brands including Tokyo Seimitsu, Mitsubishi, THK, SMC and Schneider. Standard spare parts are in stock for easy daily maintenance.
HY-WT9330 is equipped with one air-bearing grinding spindle and two air-bearing workpiece spindles. It can process various ultra-hard, brittle and hard-to-grind substrates up to 12 inches, enabling high-efficiency, damage-free and ultra-precise mirror grinding with outstanding thickness accuracy, suitable for the back thinning process of all types of chip wafers.
HY-WT9730 supports wafers up to 12-inch. Equipped with 3 grinding air-bearing spindles and 4 workpiece air-bearing spindles, it integrates rough grinding, fine grinding and polishing processes. The full robotic workflow automatically completes wafer transfer, processing, cleaning and unloading; only manual cassette feeding is needed. Ultra-precise Z-axis feed delivers superior wafer flatness and damage-free mirror polishing, while its sturdy frame guarantees stable mass production.
HY-WT9230 is developed for ultra-hard brittle semiconductor materials up to 12 inches. Built with dual air-bearing spindles and a high-precision grinding Z-axis, it supports fully automatic mirror thinning with high efficiency and damage-free processing. Equipped with a porous vacuum chuck and ultra-fine feed control, the machine ensures superior flatness and thickness uniformity for semiconductor wafer thinning processes.
HY-IS1000 is dual-station SiC ingot laser slicing and grinding equipment combining laser modification and wafer delamination processes. It uses ultra-short pulse laser to form internal modified layers inside SiC ingots for saw-mark-free wafer splitting, delivering high throughput with ground wafer TTV ≤1.1 μm. It is essential mass-production equipment for third-generation semiconductor substrate manufacturing.
HY-WC615 double-side wafer chamfering machine is equipped with CCD vision positioning & online thickness measurement modules, self-developed core mechanical components and full auto loading/unloading system, delivering outstanding machining precision and user-friendly touch operation for wafer chamfer processing.
The HY-ST3005 handles 4–12 inch hard brittle semiconductor substrates for high-precision back thinning. Iteratively upgraded for superior accuracy and long-term stability, it features premium core assemblies (hydrostatic air-bearing grinding spindle, high-precision wafer spindle, high-rigidity large-diameter rotary table) and high automation for mass production of silicon and compound semiconductor wafers.
The HY-ST3002 handles 4–12 inch wafers for precision thinning and grinding of hard brittle semiconductors. Fully upgraded with mature processes, it features enhanced accuracy and stable long-run performance, with refined automatic thinning architecture and premium key parts: hydrostatic air-bearing grinding spindle, hydrostatic air-bearing wafer holding spindle, high-rigidity large-diameter rotary table.
