HY-IS1000 is dual-station SiC ingot laser slicing and grinding equipment combining laser modification and wafer delamination processes. It uses ultra-short pulse laser to form internal modified layers inside SiC ingots for saw-mark-free wafer splitting, delivering high throughput with ground wafer TTV ≤1.1 μm. It is essential mass-production equipment for third-generation semiconductor substrate manufacturing.
Brand :
HYRNUSItem No. :
HY-IS1000Order(MOQ) :
1 SetWarranty :
One-Year Warranty and Lifetime MaintenancePayment :
T/TLead Time :
7-35 DaysProduct Origin :
ChinaSiC Ingot Laser Stealth Slicing and Grinding Machine for 6/8/12 Inch Wafers
Product Introduction
HY-IS1000 SiC Ingot Laser Stealth Slicing and Grinding Machine is two-station SiC ingot laser slicing and grinding equipment that integrates a laser modification station and a wafer delamination station. At the laser modification station, an ultra-short pulse laser with wafer-matched transmission wavelength is focused to a designated internal depth of the ingot via a high-precision optical system to trigger multi-photon absorption, break material chemical bonds and create a modified layer with high dislocation density zones. After modification, the wafer delamination station carries out delamination along preset crystal fracture planes to realize saw-mark-free wafer separation from the ingot. Boasting high processing efficiency (single 8-inch wafer processed within 25 minutes) and ground surface TTV no more than 1.1 μm, this machine serves as vital manufacturing machinery for mass production of third-generation semiconductor substrates.

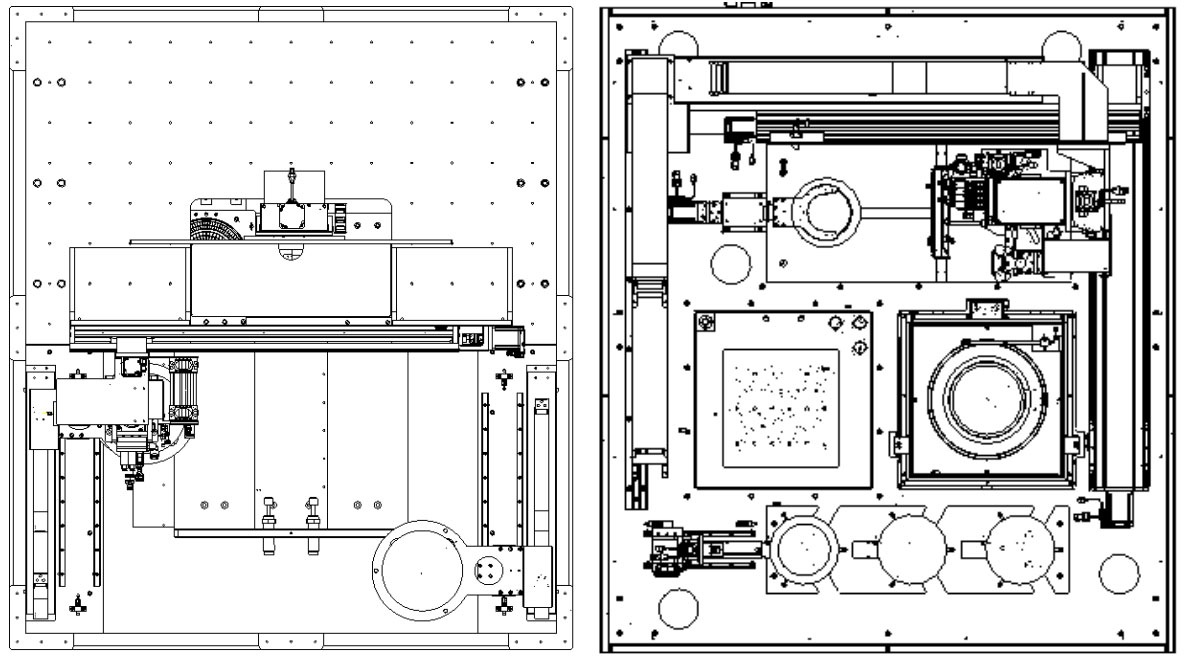

Machine Structure Diagram
Machine Operation Process
| No. | Operation Steps |
| 1 | Place SiC ingot at loading station |
| 2 | Perform ingot measurement |
| 3 | Transfer ingot to laser modification platform |
| 4 | Laser modification processing |
| 5 | Robotic arm picks up the ingot |
| 6 | Conduct secondary ingot measurement |
| 7 | Transfer mechanism absorbs the ingot |
| 8 | Transfer to delamination platform for wafer separation |
| 9 | Transfer ingot to turnover station for bottom surface cleaning |
| 10 | Transfer ingot to cleaning station for top surface cleaning and spin drying |
| 11 | Place the ingot at unloading station |
| 12 | Transfer separated wafer to turnover station for bottom surface cleaning |
| 13 | Transfer wafer to cleaning station for top surface cleaning and spin drying |
| 14 | Place the wafer at unloading station |
Specifications
1. Inspection Standards
| Parameter | X-axis | Y-axis | Z-axis | Measuring Instrument |
| Straightness | 1 μm/100 mm | 1 μm/100 mm | — | Autocollimator |
| Flatness | 1 μm/210 mm | 1 μm/210 mm | — | Autocollimator |
| Orthogonality | 5 μm @ XY Axes | — | — | Ceramic Square Ruler |
| Repeatability | ±1 μm | ±2 μm | ±1 μm | Laser Interferometer |
| Positioning Accuracy | ±2 μm | ±3 μm | ±2 μm | Laser Interferometer |
| Load Capacity | 5 kg | X+5 kg | 10 kg | Standard Weights |
2. Advantages and Features
| Parameter | Specification |
| Ingot Diameter | Compatible with 6/8/12-inch |
| Ingot Thickness | ≤50 mm (customizable) |
| Slicing Thickness | Supports standard thicknesses of 150/700 μm (customizable) |
| Single Line Throughput | UPH ≥ 3 |
| Laser Cutting Accuracy | Repeat accuracy ≤ ±1 μm, Positioning accuracy ≤ ±2 μm |
| Separated Wafer Thickness | ≤500 μm |
3. Accuracy Specifications
| Section Name | Parameter Item | X-axis | Y-axis | Z-axis | Specification |
| Modification Station – Mechanical Geometric Accuracy | Straightness | 1 μm/100 mm | 1 μm/100 mm | — | — |
| Flatness | 1 μm/210 mm | 1 μm/210 mm | — | — | |
| Orthogonality | — | — | — | 5 μm @ XY axes | |
| Modification Station – Static Performance | Repeatability | ±1 μm | ±2 μm | ±1 μm | — |
| Positioning Accuracy | ±2 μm | ±3 μm | ±2 μm | — | |
| Load Capacity | 5 kg | X+5 kg | 10 kg | — | |
| Separation Station – Servo Module | Axis Repeatability | — | — | — | ≤ ±0.02 mm |
| Separation Station – Ball Screw | Axis Repeatability | — | — | — | ≤ ±0.02 mm |
| Separation Station – Pick & Place Accuracy | XY Position Accuracy | — | — | — | ±0.02 mm |
| Angular Accuracy | — | — | — | ±0.1° |
Main Frame
| Category | Components & Specifications |
| Modification Station Scope | Granite base, linear motor air-bearing Y-axis, linear motor air-bearing X-axis, servo motor Z-axis, servo motor transfer axis, axis drive controller, transportation packaging & insurance |
| Separation Station Scope | 1. Frame Upper/Lower Frame: Welded frame main body + sheet metal cladding |
| 2. Cover Plates Top cover plate: Cold rolled steel sheet with plastic spraying surface (Standard Configuration) Bottom cover plate: Cold rolled steel sheet with plastic spraying surface (Standard Configuration) |
|
| 3. Structural Parts 45# steel with chromium plating & aluminum alloy with anodic oxidation |
|
| 4. Power Supply Single-phase 220V, 80A |
|
| 5. Air Source ≥0.5 MPa, 150 L/min |
|
