High-Performance Series Test & Taping Integrated Handler

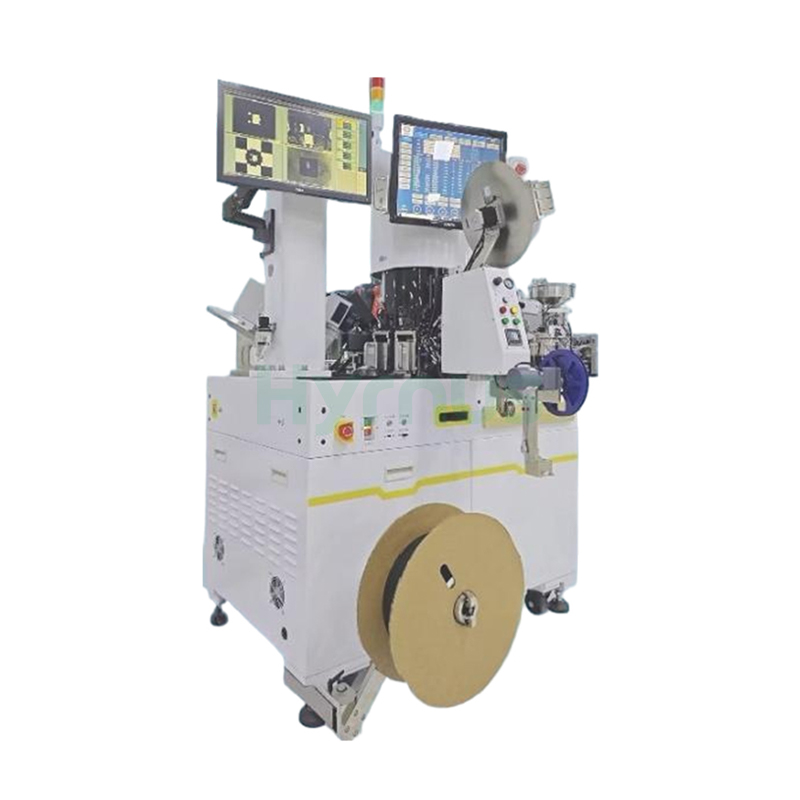

HY-TT2401 Chip Sorting Machine delivers a maximum throughput of 45,000 UPH with a positioning accuracy of ±5 µm and directional accuracy of ±0.1°, ensuring precision and efficiency across a wide range of package types including SOT, SOD, SC, SON, SOP, BGA, QFN, DFN, TSSOP, MSOP, WLCSP, as well as magnetic, optical, and proximity sensors. The system features a 480×640 pixel image recognition system with 256-level grayscale and recognition accuracy of RA 0.02–0.03, supports 2 to 8 test stations, and includes integrated optical inspection and laser marking functions. Operating on 220V AC ±5% / 50 Hz with a power range of 800–1500 W, it requires a minimum pressurized air supply of 0.5 MPa and consumes 50 L/min. With compact dimensions of 1470 mm × 1340 mm × 1900 mm and a weight of 800 kg, the HY-TT2401 offers a reliable, space-saving solution for high-volume, high-accuracy device testing and packaging.

Key Technical Specifications

HY-TT2401 Series Specifications
System Function
Throughput (UPH)	Max. 45,000 UPH (varies based on product size and test time)
Positioning Accuracy	±5 µm
Directional Accuracy	±0.1°
Applicable Package Types	SOT, SOD, SC, SON, SOP, BGA, OIC, TSSOP, MSOP, QFN, DFN, WLCSP, Magnetic Sensor, Optical Sensor, Proximity Sensor, etc.
Device Configuration
Feeding Method	Vibrating disc
Discharging Method	Taping
Optical Inspection	Yes
Laser Marking	Yes
Test Base Stations	2~8 stations
Image Recognition System
Grayscale Levels	256-level gray scale
Resolution	480 × 640 pixels
Recognition Accuracy	Pixel accuracy: PA 0.01; Recognition accuracy: RA 0.02-0.03
Electrical Parameters
Voltage / Frequency	220V AC ±5% / 50 Hz
Rated Power	800~1500 W
Pressurized Air Requirement	0.5 MPa (minimum)
Air Consumption	50 L/min
Mechanical Dimensions
Dimensions (L × W × H)	L 1470 × W 1340 × H 1900 mm
Weight	800 kg
