HY-TT1801 Test Sorter is applied to taping of discrete devices, ICs, DFN components and rectifier bridges.
Brand :
HYRNUSItem No. :
HY-TT1801Order(MOQ) :
1 SetWarranty :
One-Year Warranty and Lifetime MaintenancePayment :
T/TLead Time :
7-35 DaysProduct Origin :
ChinaHigh-Speed Series Test & Taping Integrated Machine
Product Introduction

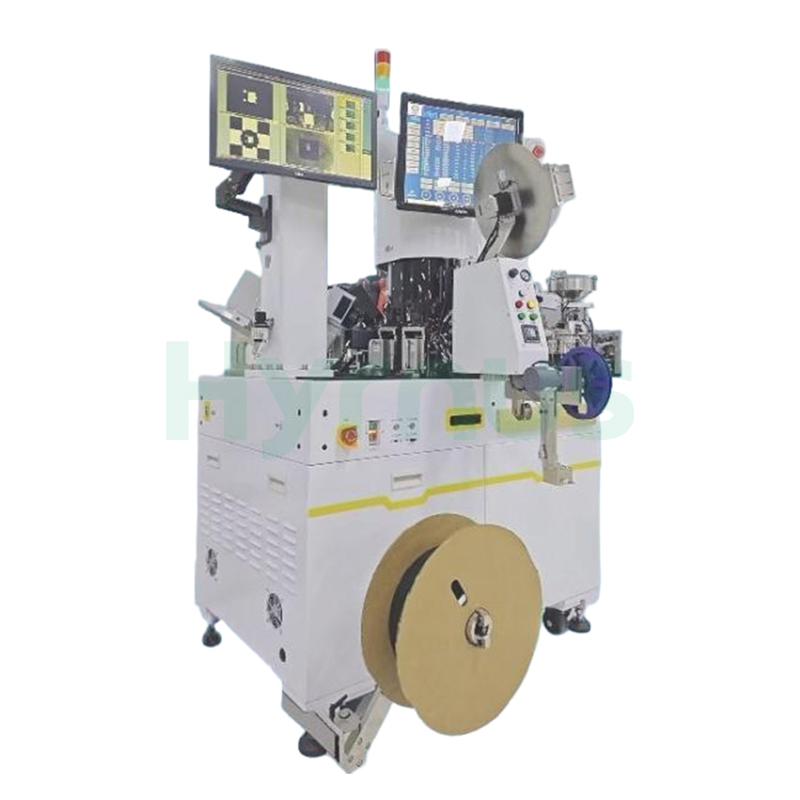

HY-TT1801 Turret Type Test Sorter integrates high-speed testing, marking and taping functions. Equipped with Japan imported DD motors, the equipment ensures stable operation and high UPH. Combined with integrated marking and vision systems, it delivers high-quality taping output for customers.
Hardware System
Self-developed motors
In-house designed test circuit boards
Optimized structure with enhanced precision
High speed and high efficiency
Maximum throughput up to 55K/H
Multi-functional design suitable for cross-industry applications
Vision System
The vision system supports multiple configuration options.
Compatible with various product sizes: 1.0×1.0, 3.5×3.5, 4×4, and 6×6 mm.
Visual recognition technology is independently developed in-house.
Equipment Features
Automatic height calibration function
Automatic feeding: Vibratory bowl feeder for fast and stable material supply
Testing: Equipped with 2–8 electrical test stations and 4 CCD inspection stations for efficient orientation verification, optical inspection, and electrical performance testing, greatly improving yield rate
Main turret: 18 or 24 servo-driven vacuum nozzles to precisely transfer products to each station center
Rotation unit: High-precision positioning and product orientation adjustment with a positioning error of 0.005 mm and angular accuracy of 0.1°
Marking turret: Integrated with laser marking, dust extraction, and marking vision inspection to significantly improve marking speed
Taping module: Supports automatic taping with an additional automatic material replenishment function
Key Technical Specifications
| HY-TT1801 Series Specifications | |
| System Function | |
| Throughput (UPH) | Max. 55,000 UPH (varies based on product size and test time) |
| Positioning Accuracy | ±5 µm |
| Directional Accuracy | ±0.1° |
| Applicable Package Types | SOT, SOD, SC, SON, SOP, BGA, OIC, TSSOP, MSOP, QFN, DFN, WLCSP, Magnetic Sensor, Optical Sensor, Proximity Sensor, etc. |
| Device Configuration | |
| Feeding Method | Vibrating disc / Tube |
| Discharging Method | Carrier Tape / Tube |
| Optical Inspection | Yes |
| Laser Marking | Yes |
| Test Base Stations | 2~8 stations |
| Image Recognition System | |
| Grayscale Levels | 256-level gray scale |
| Resolution | 480 × 640 pixels |
| Recognition Accuracy | Pixel accuracy: PA 0.01; Recognition accuracy: RA 0.02-0.03 |
| Electrical Parameters | |
| Voltage / Frequency | 220V AC ±5% / 50 Hz |
| Rated Power | 800~1500 W |
| Pressurized Air Requirement | 0.5 MPa (minimum) |
| Air Consumption | 50 L/min |
| Mechanical Dimensions | |
| Dimensions (L × W × H) | L 1470 × W 1340 × H 2020 mm |
| Weight | 800 kg |

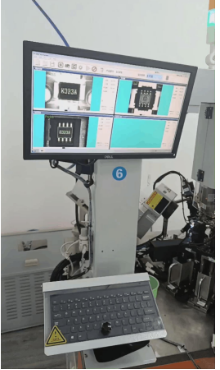

Customer Application Cases（Sorting Machine Operation）
Product Details
HY-BT12 Blue Tape Taping Machine is a high-speed blue tape taping machine designed to precisely pick chips from blue tape wafers and load them into carrier tapes for IC and LED devices.
HY-TT2401 Handler is a high-performance integrated handler that combines electrical testing, optical inspection, and taping packaging into a single automated system, designed for semiconductor packaging and test applications.
HY-CS3025 Semiconductor Handler is dedicated to visual defect inspection, electrical performance testing, and finished product packaging of chip tantalum capacitors and multi-layer aluminum capacitors.
HY-CS3021 Chip Sorter is designed for visual defect inspection, electrical performance testing, and finished product packaging of miniature active and passive components.
HY-CS900 Semiconductor Handler Automated Test and Sorting Equipment for Process Automation.
HY-CS800 Sorter is Fully Automated High-Precision Sorting Equipment for the Final Test (FT) Stage
HY-WS600 Chip Sorting Machine integrates wafer-level inspection, high-precision sorting, automated loading/unloading, and data traceability in a single system.
