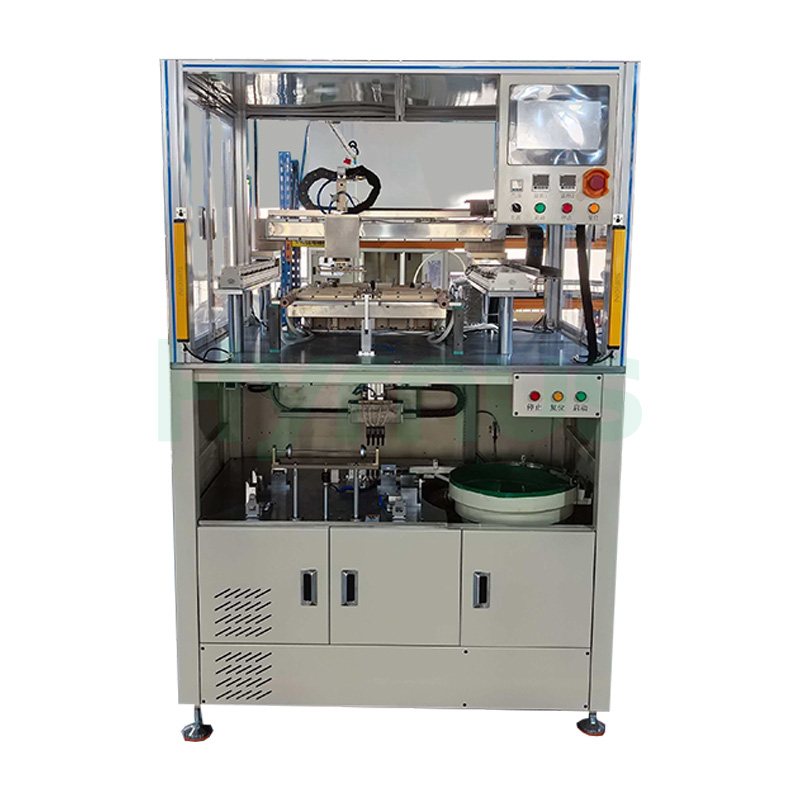

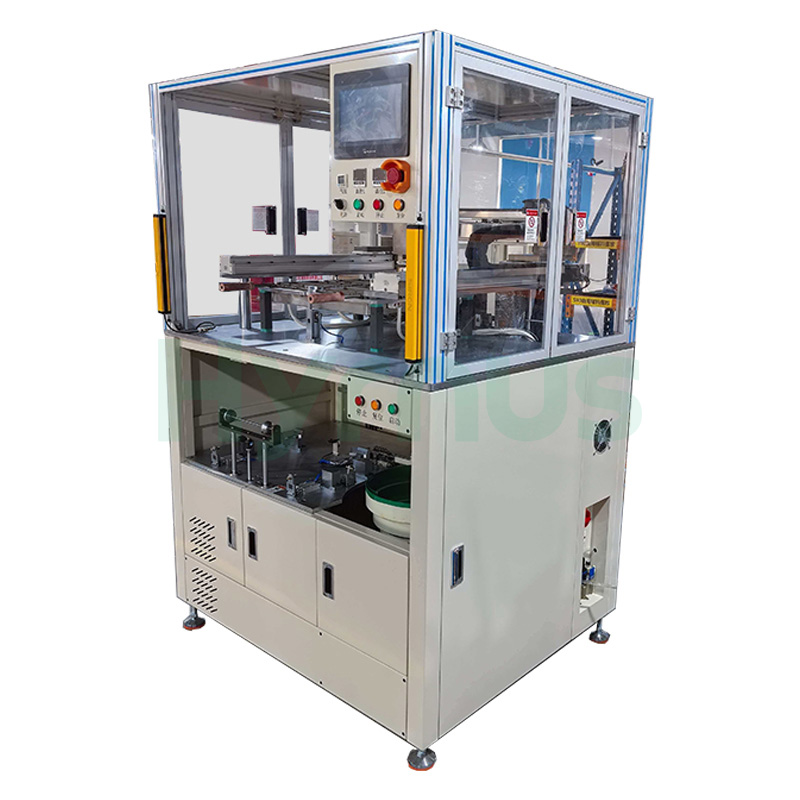

HY-PU001 Sealant Dispensing Machine processing machine is an automatic push-pull glue dispensing and sorting system specifically designed for TO252-6R package products.
Brand :
HYRNUSItem No. :
HY-PU001Order(MOQ) :
1 SetWarranty :
One-Year Warranty and Lifetime MaintenancePayment :
T/TLead Time :
7-35 DaysProduct Origin :
ChinaAutomatic Epoxy Dispenser and Sorting System for TO252
Product Introduction
HY-PU001 Glue Applicator Machine delivers a sorting speed of 12 pieces per minute and a glue dispensing speed of 24 units per minute, with MTBA of ≥40 minutes, MTBF of ≥120 hours, MTTA of ≤5 minutes, and downtime rate of ≤3%. It features multi-magazine loading driven by linear module and gear motor, push rod feeding with stepper motor with parameterized position setting and product presence confirmation functions, and a pushing section powered by linear module and servo motor with home and over-travel protection via limit switch. Key external components include SMC/AIRTAC pneumatic components, MISUMI/HIWIN FA parts, Inovance servo motors, Weinview touch screens, and Keyence/Inovance/FATEK PLCs. The system comes with a user manual including circuit diagrams and maintenance instructions, with monthly maintenance (cleaning and lubrication of moving parts, sensor cleaning) required.
Product Specification
| Item | Specification |
| Output & Reliability | |
| Sorting Speed | 12 pieces / minute |
| Glue Dispensing Speed | 24 units / minute |
| MTBA (Mean Time Between Assistance) | ≥ 40 minutes |
| MTBF (Mean Time Between Failures) | ≥ 120 hours |
| MTTA (Mean Time To Resolve) | ≤ 5 minutes |
| Downtime Rate | ≤ 3% |
| Loading Section | |
| Loading Method | Multi-magazine loading |
| Drive Method | Linear module + gear motor |
| Feeding Section | |
| Feeding Power | Stepper motor |
| Feeding Method | Push rod feeding |
| Parameterized Position Setting Function | Yes |
| Product Presence Confirmation Function | Yes |
| Pushing Section | |
| Pushing Power | Linear module + servo motor |
| Leadframe Presence Detection | No |
| Leadframe Orientation Detection | No |
| Drop Detection During Pushing | No |
| Home & Over-travel Protection | Limit switch |
| Parameterized Position Setting Function | Yes |
| Documentation | |
| User Manual (including circuit diagram and maintenance instructions) | 1 copy |
| External Component Quality Assurance | |
| Pneumatic Components | SMC, AirTAC |
| FA Parts | MISUMI, HIWIN |
| Servo Motor | Inovance |
| Touch Screen | Weinview |
| PLC | Keyence, Inovance, FATEK |
| Maintenance Item | Maintenance Cycle |
| Cleaning and lubrication of moving parts | Once per month |
| Sensor surface cleaning | Once per month |
