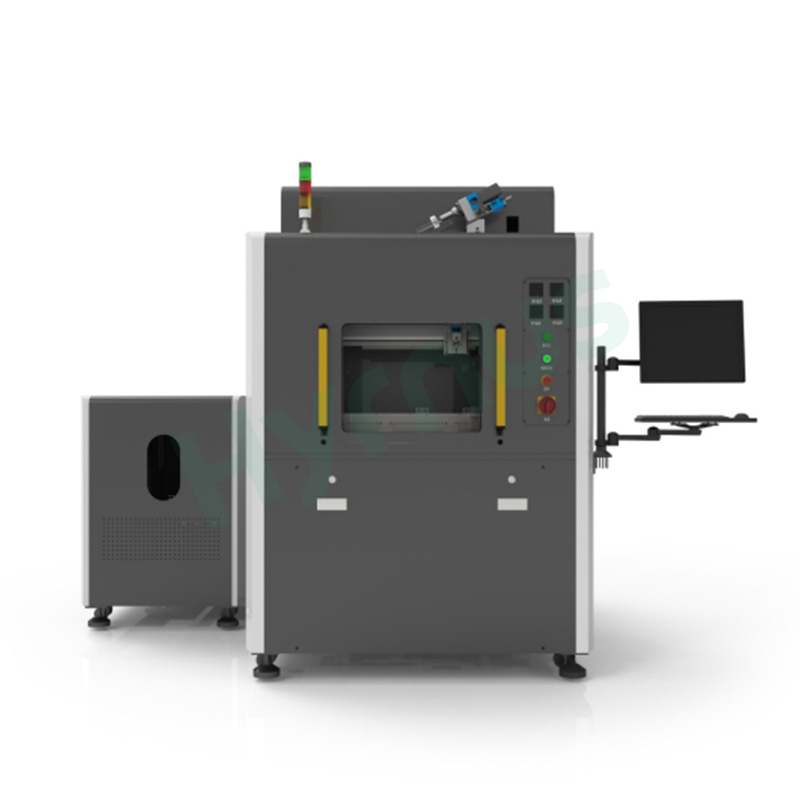

HY-PM400 Fully Automatic Vacuum Potting Machine combines vacuum degassing, precision metering, dynamic mixing, three-axis dispensing and automatic cleaning. It automatically dispenses two-component adhesives under adjustable vacuum conditions to reduce bubbles and voids, making it suitable for automotive electronics, capacitors, coils, transformers, relays and power modules.
Brand :
HYRNUSItem No. :
HY-PM400Order(MOQ) :
1 SetWarranty :
One-Year Warranty and Lifetime MaintenancePayment :
T/TLead Time :
7-35 DaysProduct Origin :
ChinaFully Automatic AB Glue Precision Vacuum Potting Machine
Product Overview
HY-PM400 is a Fully Automatic Vacuum Potting Machine integrating vacuum processing, precision two-component metering, dynamic mixing, three-axis dispensing, automatic fixture transfer and automatic cleaning.
Potting is performed inside an adjustable vacuum chamber to reduce trapped air, bubbles and voids in the adhesive and product cavities. It is designed for products requiring high potting quality, electrical insulation and long-term sealing reliability.
The potting machine is controlled by an industrial computer, display and motion control card. A high-precision three-axis robotic system performs stable and accurate dispensing along programmed three-dimensional paths. Components A and B are stored in separate 30 L tanks with automatic vacuum loading, degassing and stirring functions. A two-stage material feeding and metering system ensures accurate mixing ratios, uniform mixing and controlled dispensing.
Product Features
Applications
*Automotive electronic module potting
*Automotive sensor and controller potting
*Capacitor and coil potting
*Transformer vacuum potting
*Relay potting
*Power supply and power module potting
*Inductor and coil encapsulation
*Electronic control module potting
*Products requiring low void levels and reliable electrical insulation
Technical Parameter
| Item | Specification |
| Model | HY-PM400 |
| Machine Type | Fully automatic two-component vacuum potting machine |
| Effective Working Range per Head | 400(X) × 300(Y) × 100(Z) mm |
| X-Y Axis Movement Speed | 0–500 mm/s |
| Z Axis Movement Speed | 0–200 mm/s |
| Mixing Ratio Accuracy | ±2% |
| Dispensing Accuracy | ±2% |
| Adjustable Mixing Ratio | 100:100–100:20 or 100:20–100:10 |
| Dispensing Rate | 1–10 g/s, 5–20 g/s or 10–30 g/s, depending on configuration |
| Applicable Adhesive Viscosity | ＜100,000 cP |
| Component A Tank Capacity | 30 L |
| Component B Tank Capacity | 30 L |
| Control System | Industrial computer, display and motion control card |
| Control Software | Proprietary potting control software |
| Operating Mode | Fully automatic |
| Anti-Curing Time Setting | 0–9999 s, adjustable |
| Metering Method | Stepper motor with gear pump/screw pump, or servo motor with piston pump |
| Transmission System | Servo motor and ball screw |
| Conveyor System | Stepper motor and accumulation chain conveyor |
| Vacuum Pump Ultimate Pressure | 50 Pa（0.5 mbar） |
| Vacuum Chamber Ultimate Pressure | 200 Pa（2 mbar） |
| Power Supply | AC 380 V |
| Vacuum Machine Dimensions | 1250(L) × 1020(W) × 2200(H) mm |
| Machine Weight | Approx. 1000 kg |
| Operating Humidity | 20%–90% RH |
