Precision AB Glue Dispenser Two-component Glue Filling Machine

Product Overview

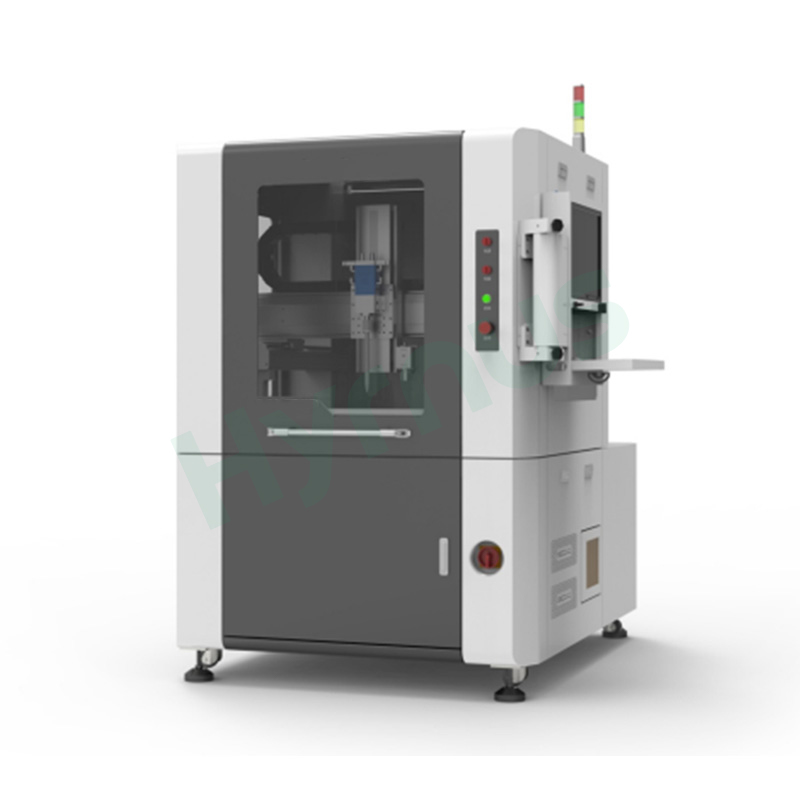

HY-TP700 Precision AB Glue Dispenser is designed for precise metering, mixing and quantitative dispensing of various A/B adhesives. It is widely used in PCB manufacturing, electronic components, automotive accessories, small home appliances, lighting products, filters and other industries.

The machine adopts an industrial PC, advanced motion control system and high-precision three-axis robotic arm to achieve fast and accurate dispensing paths. It supports automatic proportioning, mixing and dispensing, with vacuum material loading and vacuum degassing functions. Optional heating, stirring, automatic cleaning and pressure monitoring can also be configured to meet different adhesive process requirements.

Product Features

Applications

*PCB (printed circuit board) industry

*Electronic components industry

*Electric light source industry

*Small home appliance industry

*Igniter industry

*Automotive accessories industry

*Vacuum cleaner industry

*Filter industry, and many others.



Equipments Parameter

No	Category	Parameter
1.	Model	HY-TP700
2.	Mixing Ratio (by weight)	65.5 : 34.5
3.	Ratio Control System	Metering pump
4.	Ratio Accuracy	±2% (based on 10g)
5.	Operation Mode	Start switch
6.	Dispensing Accuracy	±2% (based on 10g)
7.	Flow Control Method	Digital input
8.	Dispensing Speed	Adjusted according to actual requirements
9.	Automation Control System	Motion control card + industrial PC + monitor (Chinese interface)
10.	Material Loading Method	Automatic vacuum suction / manual pouring
11.	Interface Display System	Windows 10
12.	Cleaning Method	Manual cleaning
13.	Mixing Method	Dynamic mixing
14.	Anti-Curing Time	0-9999 sec
15.	Operable Viscosity	100 – 20,000 CPS
16.	Air Supply	0.5 ~ 0.7 MPa
17.	Power Supply	AC380V / 220V, 50Hz
18.	Machine Dimensions	L1300mm × W1900mm × H2550mm





Working Process

No	Discription

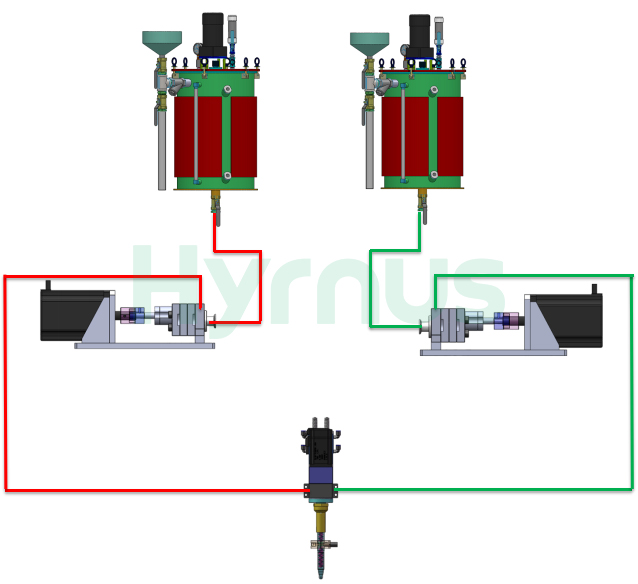

1	Two-component A and B adhesives have independent storage tanks. The storage tanks can be loaded manually or via vacuum, enabling functions such as stirring, heating, and degassing of the adhesives.
2	The processed single-component adhesives flow through separate delivery pipes into the A and B metering pumps. Under software control, the adhesives are delivered at a set ratio and flow rate through the dispensing pipelines to the outlet of the mixing valve.
3	The dynamic mixing valve thoroughly mixes the A and B adhesive components into a uniform blended adhesive to achieve proper curing. The dispensing time is set according to program parameters, making the operation simple and convenient.
4	Since the A and B adhesives are mixed only inside the mixing tube, the automatic cleaning device only needs to clean the valve and the mixing tube section.
