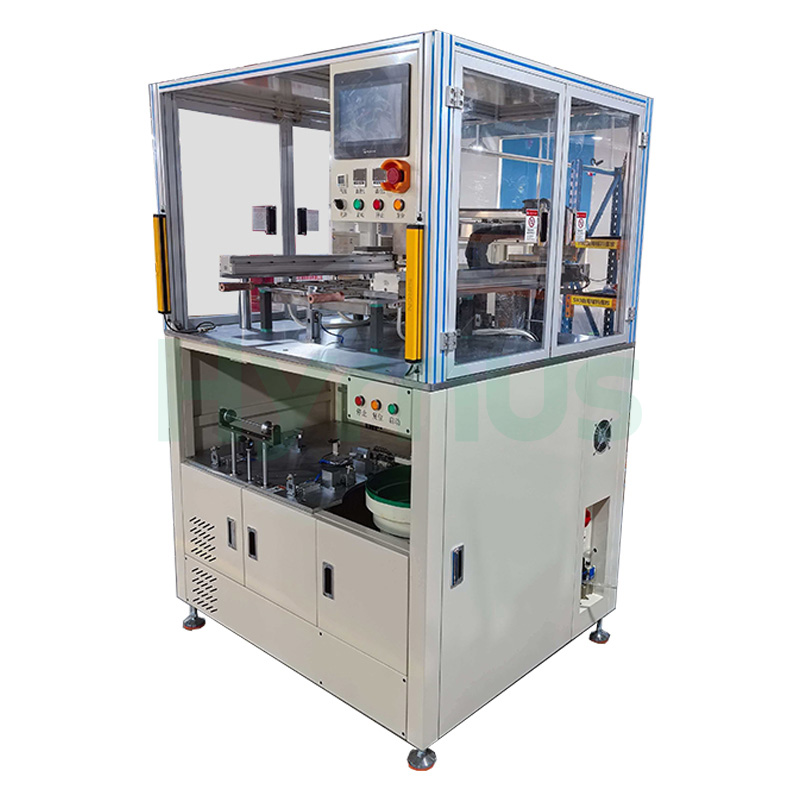

HY-CUS03 Automatic Push-Pull Glue Dispensing and Sorting System is an automatic push-pull glue dispensing and sorting system specifically designed for SMA, SMB, and SMC package products.
Brand :
HYRNUSItem No. :
HY-CUS03Order(MOQ) :
1 SetWarranty :
One-Year Warranty and Lifetime MaintenancePayment :
T/TLead Time :
7-35 DaysProduct Origin :
ChinaHigh Precion Automatic Epoxy Dispensing Machine for SMA
Product Introduction
HY-CUS03 Glue Machine delivers is designed for the automated handling of SMA, SMB, and SMC package leadframes, delivering stable, accurate, and efficient material transfer for semiconductor packaging applications. Equipped with a servo-driven linear motion system, round-belt feeding mechanism, and precision dispensing unit, the system provides smooth product transportation and reliable dispensing performance while minimizing manual intervention. Its compact design, intelligent PLC control, and user-friendly touchscreen interface allow for easy operation, consistent process control, and enhanced production efficiency. The HY-CUS03 is an ideal choice for manufacturers seeking a dependable automation solution for high-volume diode and rectifier package production.
Product Specification
| Item | Specification | Remarks |
| System Performance Indicators | ||
| Sorting Speed | ≥ 8 pieces / minute | |
| Glue Dispensing Speed | ≥ 32 units / minute | |
| MTBA (Mean Time Between Assistance) | ≥ 40 minutes | |
| MTBF (Mean Time Between Failures) | ≥ 120 hours | |
| MTTA (Mean Time To Resolve) | ≤ 5 minutes | |
| Downtime Rate | ≤ 3% | |
| Loading Section | ||
| Loading Method | Multi-magazine loading | |
| Drive Method | Linear module + servo motor | |
| Feeding Section | ||
| Feeding Power | Electric motor | |
| Feeding Method | Round belt | |
| Parameterized Position Setting Function | Yes | |
| Product Presence Confirmation Function | Yes | |
| Pick-up Section | ||
| Pick-up Power | Linear module + servo motor | |
| Leadframe Presence Detection | No | |
| Leadframe Orientation Detection | No | |
| Drop Detection During Pick-up | No | |
| Home & Over-travel Protection | Limit switch | |
| Parameterized Position Setting Function | Yes | |
| Rotation Method | Servo motor | |
| Dispensing Section | ||
| Power | Linear module + servo motor | |
| Loading | Vibratory bowl feeder | |
| Dust Treatment | Negative pressure fan | |
| Control Section | ||
| Control Component | PLC | |
| HMI | 7" touch screen | |
| Interface Language | Simplified Chinese | |
| Control Mode | Automatic / Manual | |
| Control Program | Not provided | |
| Operation Interface | ||
| User Permissions | Operator / Technician / Administrator | |
| Parameter Initialization Function | Provided | |
| Parameterized Setting Function | Yes | |
| Documentation | ||
| User Manual (including circuit diagram and maintenance instructions) | 1 copy | |
| External Component Quality Assurance | ||
| Pneumatic Components | SMC, AIRTAC, CKD | |
| FA Parts | MISUMI, HIWIN | |
| Servo Motor | Inovance, DELTA | |
| Touch Screen | Weinview, PROFACE | |
| PLC | KEYENCE, Inovance, FATEK | |
| Maintenance Item | Maintenance Cycle | Performed By |
| Cleaning and lubrication of moving parts | Once per month | Customer |
| Sensor surface cleaning | Once per month | Customer |
