HY-VI8 Vacuum Soldering Furnace is a fully automatic inline vacuum soldering furnace specially optimized for lead frame products and power devices in the semiconductor industry, supporting PDFN, QFN, SMA, TO220, and TO3P packages.
Brand :
HYRNUSItem No. :
HY-VI8Order(MOQ) :
1 SetWarranty :
One-Year Warranty and Lifetime MaintenancePayment :
T/TLead Time :
7-35 DaysProduct Origin :
ChinaFully Automatic Inline Vacuum Soldering Furnace for Power Devices SMT
Product Introduction
HY-VI8 Solder Paste Inspection features a dual vacuum chamber design with an original Bosch vacuum pump from Germany, significantly reducing void rate to below 1% with proper solder paste. The system enables fully automatic loading and unloading without manual intervention, delivering high productivity with low energy consumption, low nitrogen usage, and a compact footprint of less than 3 meters in length. Equipped with 8 heating zones, 1 vacuum zone, and 2 cooling zones, it reaches a maximum temperature of 400°C with vacuum pressure of 1–12 Pa. Key technologies include a high-efficiency gas control system ensuring uniform distribution and ultra-low oxygen content, plus an advanced ionized flux recovery system with multi-stage separation for clean exhaust emission.

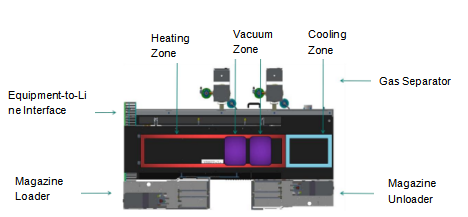

Structure
Key Technologies
German vacuum pump ensures stable vacuum performance
Advanced design ensures uniform gas distribution and ultra-low oxygen content
High-efficiency exhaust system minimizes flux residue and reduces cleaning frequency

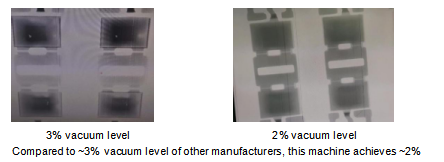

Performance Comparison
Specifications
| Heating Zones | 8 |
| Vacuum Zone | 1 |
| Cooling Zones | 2 |
| Power Supply | 380 V |
| Start-up Power | 32.6 kW |
| Operating Power | 10.9 kW |
| Max. Temperature | 400 °C |
| Vacuum Pressure | 1–12 Pa |
Terms of Use
Temperature：Below 28°C
Humidity:30% – 70%
Cleanroom:Class 10,000 or better
Voltage:220V for all equipment except the vacuum reflow oven (380V)
Product Details
