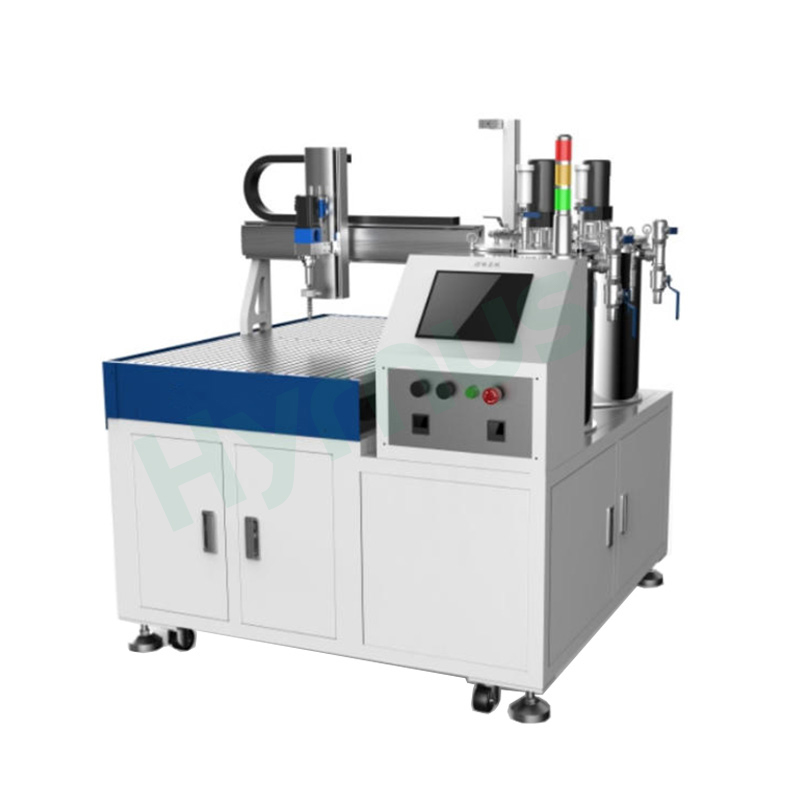

HY-TP3030 Automatic Two-component Potting Machine combines a precision metering system with a high-accuracy three-axis motion platform to automatically meter, mix and dispense two-component adhesives. With vacuum feeding and degassing functions, it is suitable for automatic dispensing, potting and sealing of various electronic products.
Brand :
HYRNUSItem No. :
HY-TP3030Order(MOQ) :
1 SetWarranty :
One-Year Warranty and Lifetime MaintenancePayment :
T/TLead Time :
7-35 DaysProduct Origin :
ChinaAutomatic Two-Component Glue Mixing And Potting Machine
Product Overview
HY-TP3030 is an Automatic Glue Potting Machine integrating precision metering, automatic mixing, quantitative dispensing and three-axis motion control.
A dedicated motion controller with advanced algorithms works together with a high-precision three-axis robotic system to perform fast, stable and accurate three-dimensional dispensing along programmed paths.
The machine supports vacuum material feeding and vacuum degassing. Optional heating, stirring, automatic cleaning and pressure monitoring functions are available for different adhesive properties and production requirements. It is suitable for potting, sealing, insulation and protection of circuit boards, electronic components, lighting products, small appliances, automotive electronics and filters.
Product Features
Applications
*PCB and circuit board dispensing and potting
*Electronic component potting
*Power supply and control module potting
*LED and lighting product potting
*Small appliance electronic module potting
*Ignition device potting
*Automotive electronics and in-vehicle product potting
*Vacuum cleaner electronic component potting
*Filter and filter element dispensing
*Sealing, insulation and protection of other electronic products
Technical Parameter
| Item | Specification |
| Model | HY-TP3030 |
| Machine Type | Automatic two-component potting machine |
| Effective Working Range per Head | 500(X) × 700(Y) × 100(Z) mm |
| X-Y Axis Movement Speed | 0–300 mm/s |
| Z Axis Movement Speed | 0–100 mm/s |
| Mixing Ratio Accuracy | ±2% |
| Dispensing Accuracy | ±2% |
| Adjustable Mixing Ratio | 100:100–100:20 or 100:20–100:10 |
| Dispensing Rate | 1–10 g/s, 5–20 g/s or 10–30 g/s, depending on configuration |
| Applicable Adhesive Viscosity | ＜100,000 cP |
| Control System | Motion controller with touchscreen, or PC with motion control card |
| Metering Method | Stepper motor with gear pump/screw pump, or servo motor with piston pump |
| Operating Method | Start switch |
| Anti-Curing Time Setting | 0–9999 s, adjustable |
| Transmission System | Micro-stepping motor and timing belt |
| Power Supply | AC 220 V |
| Machine Dimensions | 1300(L) × 1250(W) × 1600(H) mm |
| Machine Weight | Approx. 450 kg |
| Operating Temperature | 0–40°C |
| Operating Humidity | 20%–90% RH |
