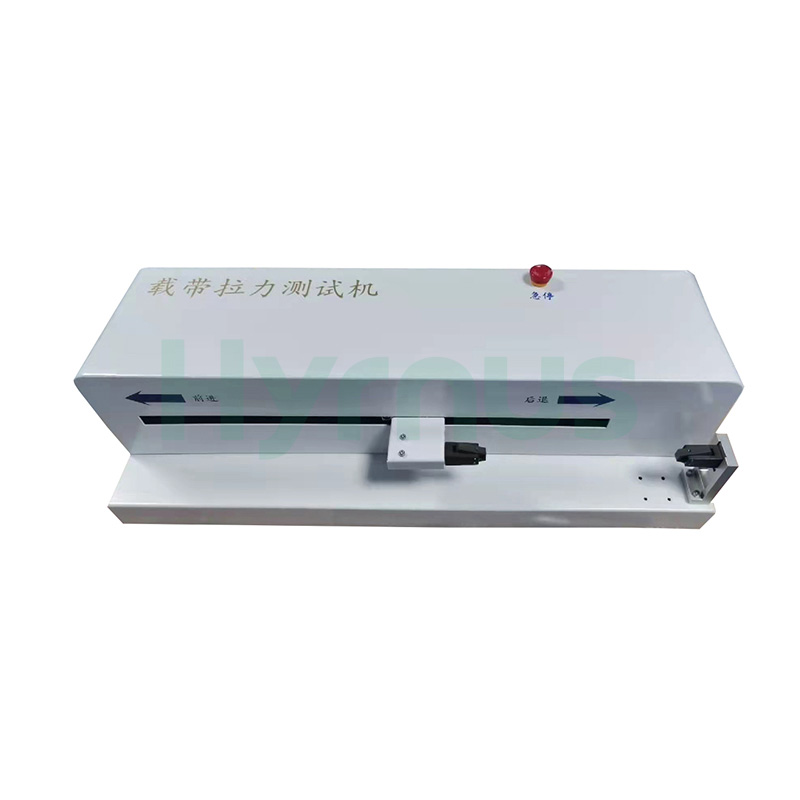

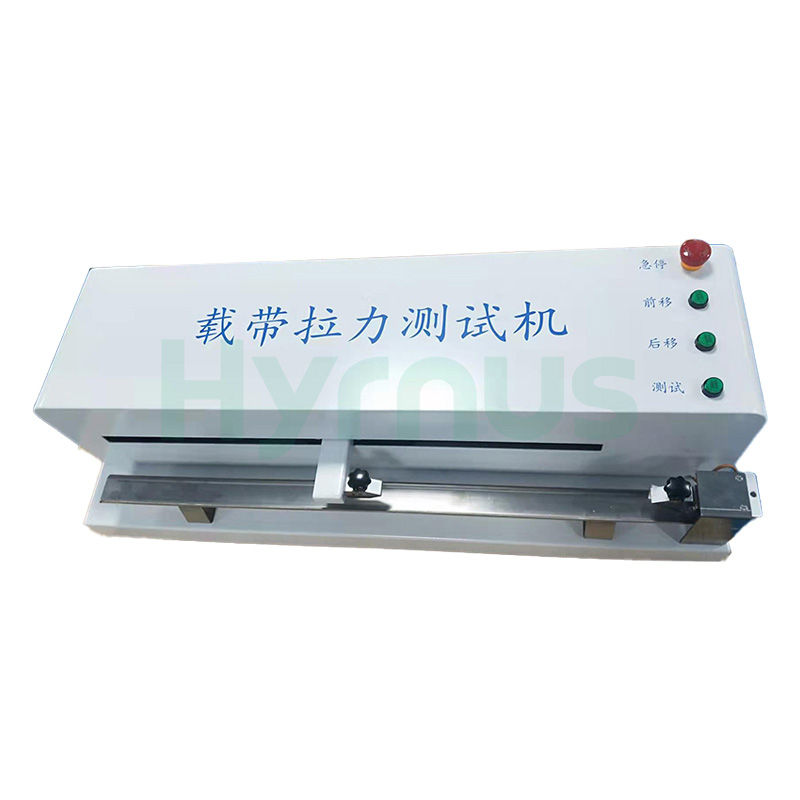

Carrier Tape Adhesion Force Tester with real-time monitoring

HY-PT800 Bond Tester is a carrier tape adhesion force tester designed for real-time monitoring of tape loading processes, featuring a high-precision dynamic sensing system with testing accuracy of ±0.25% and a sensor range of 0–500g (customizable with other ranges upon request).

Brand :
HYRNUS
Item No. :
HY-PT800
Order(MOQ) :
1 Set
Warranty :
One-Year Warranty and Lifetime Maintenance
Payment :
T/T
Lead Time :
7-35 Days
Product Origin :
China

Inquiry Now

Carrier Tape Adhesion Force Tester with real-time monitoring

Product Introduction

HY-PT800 Wire Pull Tester offers effective travel of 500mm with 0.002mm resolution, driven by a servo motor for high-speed, long-term stable operation. The system integrates a Windows-based control computer with user-friendly software that displays multiple test data and force curves simultaneously, supporting real-time data export and storage. Key features include adjustable test speed, automatic break stop, peak hold, auto stop at preset distance for efficient testing, one-button return to test position, and comprehensive data management functions including test result saving, curve display, data query, and automatic calculation of max, min, and average force.

Equipment Specifications

Item	Specification
Model	HY-PT800
Testing Accuracy	±0.25%
Sensor Range	0–500g (customizable with other ranges upon request)
Workbench	Effective travel: 500mm; Resolution: 0.002mm
Dimensions	600mm × 220mm × 220mm
Operating Platform	Servo motor drive for high-speed, long-term stable operation

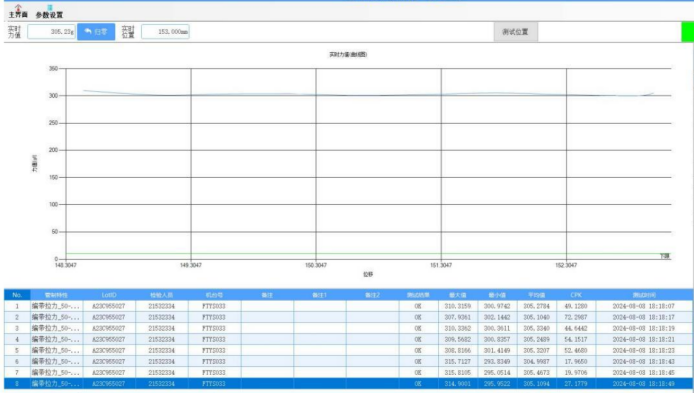

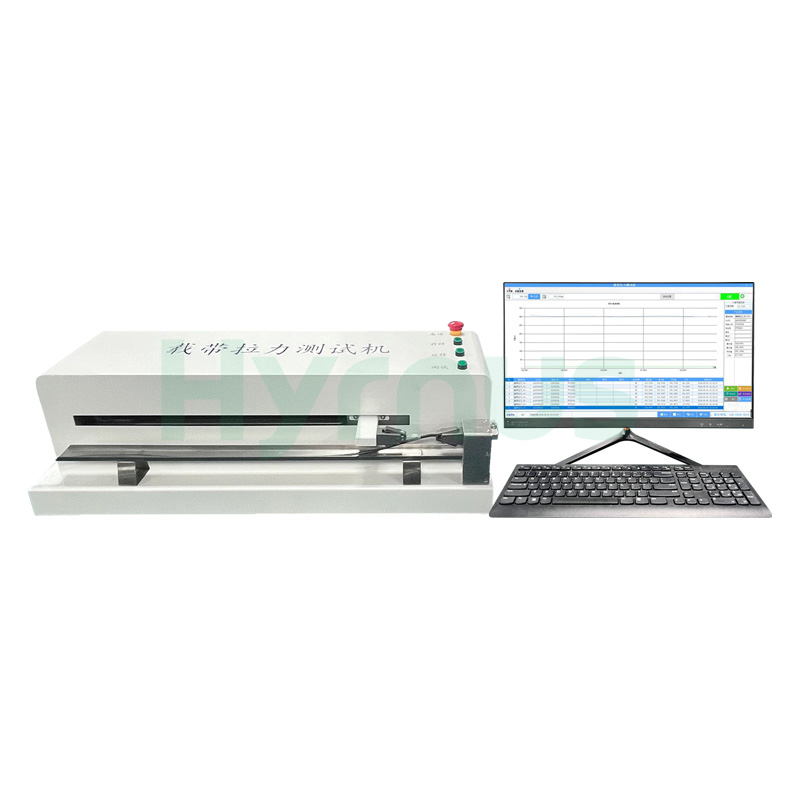

Control Computer	Integrated Windows system; user-friendly software displays multiple test data and force curves simultaneously; supports real-time data export and storage
Power Supply	220V ±5%
Power Consumption	150W (MAX)

Key Product Features

Utilizes high-precision dynamic sensing system for real-time monitoring of tape loading processes.

Software enables real-time entry of product information.

Test results are automatically recorded and can be exported in real time.

Advantages

Data Management	Complete functions including test data & result saving, curve display and data query.
Data Analysis	Automatically records force changes in horizontal peeling and calculates max, min and average force after testing.
Test Efficiency	Adjustable test speed, automatic break stop, peak hold and auto stop at preset distance (max stroke 500mm) for efficient testing.
Operation Convenience	One-button return to test position without manual step-by-step adjustment.
Quality & Safety	Improves product quality and ensures safety and reliability for enterprises and manufacturers.
