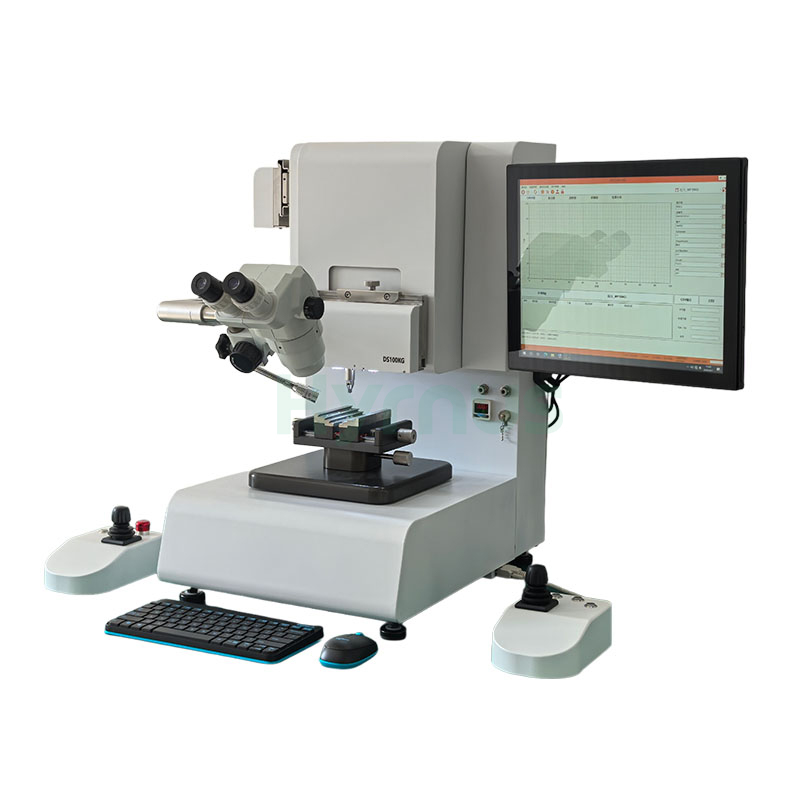

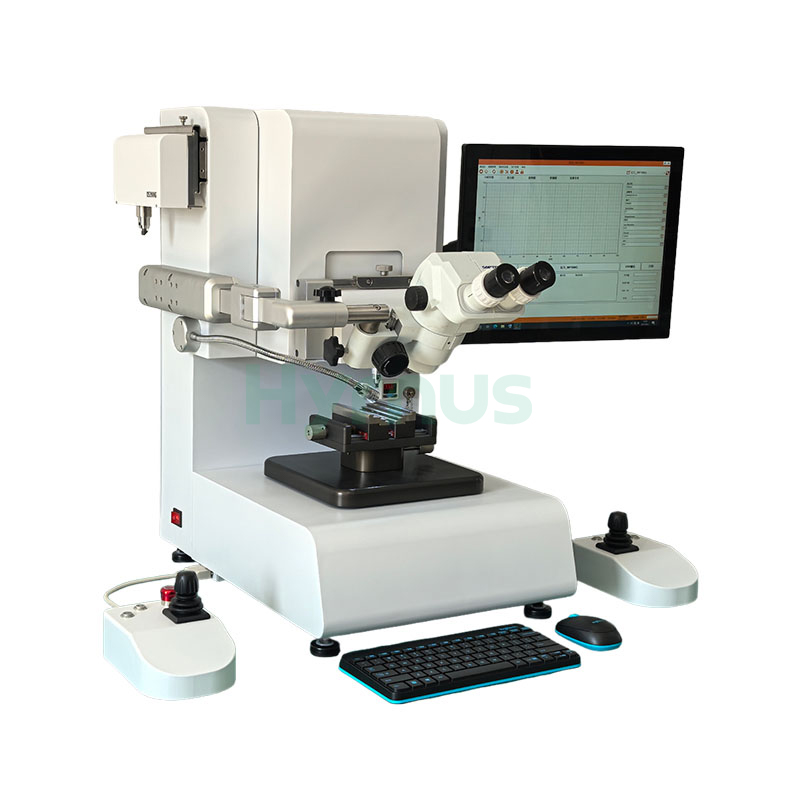

Multifunctional Wire Bond Pull Tester Semiconductor Bond Testing Equipment

HY-PT6000 Wire Bond Pull Tester is designed for dynamic mechanical testing in semiconductor packaging, LED, SMT, BGA, automotive electronics, and sensor manufacturing. It supports pull, shear, and pull-out testing of bonding wires, solder balls, chips, ribbons, and pins, providing reliable evaluation of bonding strength and process quality.

Brand :
HYRNUS
Item No. :
HY-PT6000
Order(MOQ) :
1 Set
Warranty :
One-Year Warranty and Lifetime Maintenance
Payment :
T/T
Lead Time :
7-35 Days
Product Origin :
China

Inquiry Now

Multifunctional Wire Bond Pull Tester Semiconductor Bond Testing Equipment

Product Introduction

HY-PT6000 multifunctional Wire Bond Pull Tester is widely used in numerous fields, including semiconductor and LED packaging, new energy automotive industry, camera and sensor manufacturing, mechanical testing in universities and military research institutes, and reliability testing for advanced packaging processes. It is the standard dynamic mechanical testing instrument for bonding processes, COB/COG processes, SMT processes, and BGA ball mounting processes. It can meet the requirements for pull testing of gold wire, copper wire, aluminum wire, aluminum ribbon, etc., shear testing of gold balls, solder balls, chip components, etc., as well as pull-out testing of solder-free pins, BGA solder balls, etc.

Workflow

No.	Test Item	Workflow Description
1	Thrust (Shear Force) Test	Move the test head to a position directly above the product under test using the left and right joysticks. Press the test key; the Z-axis will automatically move downward for height detection. The descent stops when the test head touches the surface of the test substrate, then the head rises to the preset shear height and pauses. Next, the Y-axis pushes the test target according to the parameters set in the software and stops upon completion of movement. The software displays the force profile during the test in the form of a curve, analyzes the peak force value in the process, then shows and saves the test result.
2	Hook Pull Test	Move the pull test head to below the test target using the left and right joysticks, then press the test key. The Z-axis automatically moves upward per the set distance parameter and stops upon completion. The software displays the force distribution during the test in the form of a curve, analyzes the peak force value in the process, then shows and saves the test result.
3	Clamp PullOut Force Test	Move the clamp test head to both sides of the test target (BGA solder balls, pin headers, etc.) using the left and right joysticks, then press the test key. The clamp automatically grips the test target and pulls upward. The software displays the force distribution during the test in the form of a curve, analyzes the peak force value in the process, then shows and saves the test result.

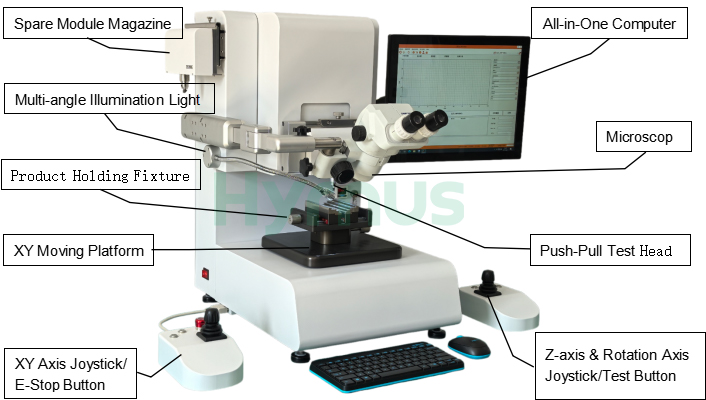

Equipment Features

No.	Item	Description
1	Multi-function test heads	Supports multiple functional test heads including thrust, pull, pressure and clamp pull-out force, which can be selected according to testing requirements.
2	High-precision acquisition system	The system adopts high-precision and high-speed acquisition modules and advanced signal processing algorithms to optimize accuracy.
3	Hot-swappable test modules	Supports hot-swappable test modules; the software automatically recognizes the test head type and measuring range.
4	Independent channel protection	Independent bottom-touch and edge-touch protection for each channel to prevent damage to the machine caused by collision and over-range operation.
5	Simple and user-friendly software	Simple software interface for fast and direct parameter configuration and test data review, with easy operation and learning.
6	Offline data storage & export	Test results are saved offline with selectable data output formats and methods for convenient traceability and query.
7	MES system connectivity	MES system docking module is optional for remote sharing of test data.
8	Adjustable protective lighting	Each channel is equipped with an independent adjustable protective light source to ensure brightness and improve operating comfort.
9	HD binocular microscope	Standard high-definition binocular microscope is equipped to assist manual alignment and reduce operator visual fatigue.
10	Imported core components	Core components are imported from well-known international brands to better ensure accuracy, stability and service life.
11	Precise four-direction control	Dual Hall joysticks for four-direction control combined with precise mechatronic structure enable convenient and accurate positioning.
12	Universal rotatable fixture base	Universal fixture base allows quick replacement of fixtures and calibration tools, and supports 360° rotation.
13	Stable & high-load body	Sturdy and stable body design and materials, capable of withstanding thrust tests over 200KG.
14	Motorized mechanism design	All general mechanisms are fully motorized and can operate normally without air supply (except pneumatic test heads).
15	Reserved upgrade interfaces	Reserved circuit and air supply interfaces to facilitate future automated fixture upgrades.
16	Customizable R&D capability	Strong R&D capability enables fast response and support for various non-standard customized testing requirements.
17	Professional after-sales service	Professional and efficient after-sales service with full-life cycle support to ensure worry-free operation for users.

Technical Specification

Item	Specification	Remarks
(I) Main Equipment Parameters
1	Test Method	Destructive / Non-destructive testing
2	Equipment Type	Desktop type (for use on workbench)
3	Loading Method	Manual loading
4	Alignment Method	Manual alignment
5	Test Module Switching Method	Manual switching
6	Test Module Plugging Method	Hot-swappable (plug/unplug while powered on)
7	Microscope	Standard binocular continuously variable magnification microscope (6.7–45×)	Optional trinocular imaging microscope with observation CCD
8	Air Supply Requirement	0.4–0.6 MPa (4.0–6.0 Bar) dry air
9	Gas Supply Connection	φ6 air tube with quick-connect fitting
10	Power Rating	AC 220V, 50Hz, 1.2kW (max)
11	Equipment Dimensions	750(W) × 680(D) × 700(H) mm (including left/right control boxes and monitor)
12	Equipment Weight	90 kg
(II) Test Module Range & Accuracy
1	Thrust Test Head(for gold/copper/tin ball, aluminum wire pad, wafer testing)	BS250G, BS1KG, DS5KG, DS10KG, DS50KG, DS100KG, DS200KG	Select as needed and fill in Equipment Factory Main Parts List
2	Hook Pull Test Head(for gold/copper/alloy/aluminum wire testing)	WP100G, WP200G, WP1KG, WP5KG, WP10KG, WP20KG	Select as needed and fill in Equipment Factory Main Parts List
3	Pressure Test Head(for material pressure resistance, press-fit process testing)	PP100G, PP5KG, PP50KG	Select as needed and fill in Equipment Factory Main Parts List
4	Clamp Pull Test Head(for BGA solder ball, pin pull testing)	TP100G, TP1KG, TP5KG, TP20KG, TP50KG (manual clamping)	Select as needed and fill in Equipment Factory Main Parts List
5	Comprehensive Test Accuracy	±0.25% FS
6	Force Unit Selection	Kg, g, N (selectable as needed)
(III) Axis (XYZ Axes)
1	XY Axis Travel	100 mm × 100 mm
2	XY Axis Full-Stroke Positioning Accuracy	±10 μm
3	XY Axis Resolution	0.3 μm
4	XY Axis Maximum Speed	5 mm/s
5	Y Axis Maximum Thrust Force	200 kg
6	Z Axis Travel	80 mm
7	Z Axis Full-Stroke Positioning Accuracy	±10 μm
8	Z Axis Positioning Accuracy (within 2 mm travel)	±1 μm
9	Z Axis Resolution	0.2 μm
10	Z Axis Maximum Speed	5 mm/s
11	Z Axis Maximum Pull Force	50 kg
12	Z Axis Shear Height Setting Unit	1 μm
(IV) Fixture Section
1	Fixture Type	Manual (customized for product)	One set of fixtures as standard
2	Fixture Fixing Method	Screw fixing (compatible with vacuum adsorption fixing)
3	Fixture Angle Adjustment Range	360° rotation
4	Fixture Quick-Change Function	Yes
5	Maximum Fixture Base Load Capacity	300 kg
(V) Computer & Control System
1	Computer Configuration	Dedicated all-in-one industrial PC: 5th Gen i5 CPU / 8G RAM / 128G SSD / Win10 OS / 17-inch screen
2	Interface & Language	17-inch LCD screen, Simplified Chinese
3	Control Hardware	Self-developed main control board
4	Control Software	Self-developed
5	User Authority (3 levels)	Operator / Technician / Administrator
6	Parameter Initialization Function	Yes
7	Parameter Input Method	Input via computer interface
8	Data Statistics Function	Yes (extremum, average, CPK value, etc.)
9	Test Result Judgment	Automatic judgment of test results
10	External Connection	Connectable to factory MES system	Optional function
11	Data Export	Fixed format export (Excel, etc.)
12	Emergency Stop Function	Yes
(VI) Purchased Parts Quality Assurance
1	Pneumatic Components	SMC / Airtac
2	FA Parts	MISUMI, Yiheda
3	Motors	Meiji, Leadshine
4	Transmission Parts	THK, GMT
5	Microcontroller	Foreign brand MCU
(VII) Installation Environment Requirements
1	Power Supply Requirement	Voltage: AC220V±5%; 50Hz
2	Air Supply Requirement	0.4–0.6 MPa (4.0–6.0 Bar) dry air	Not mandatory; connect only when required for certain tests
3	Workshop Requirements	(1) Clean or dust-free workshop;(2) Temperature: 18°C–32°C;(3) Humidity: ≤70%
4	Workbench Requirement	Horizontal, stable, sturdy and anti-vibration work surface
5	Other External Requirements	(1) Grounding wire;(2) Lightning protection equipment installed;(3) No strong wind, avoid direct fan blowing on test head
(VIII) Maintenance & Care
1	Test Head Factory Calibration Service Times	Once (round-trip freight borne by customer)
2	Hook Replacement Interval	Recommended after 500 tests	Customer operator
3	Push Blade Replacement Interval	Recommended after 500 tests	Customer operator
4	Calibration Interval	At least once per year	Customer operator
5	Microscope Lens Cleaning	Once per month	Customer operator
6	Air Supply Filter Drainage	Once every six months	Customer operator
