HY-PT8100 Bond Tester is a multi-function manual push-pull force tester designed for comprehensive mechanical testing in semiconductor and electronic packaging applications.
Brand :
HYRNUSItem No. :
HY-PT8100Order(MOQ) :
1 SetWarranty :
One-Year Warranty and Lifetime MaintenancePayment :
T/TLead Time :
7-35 DaysProduct Origin :
ChinaMulti-Function Manual Push-Pull Force Tester for Diverse Device
Product Introduction

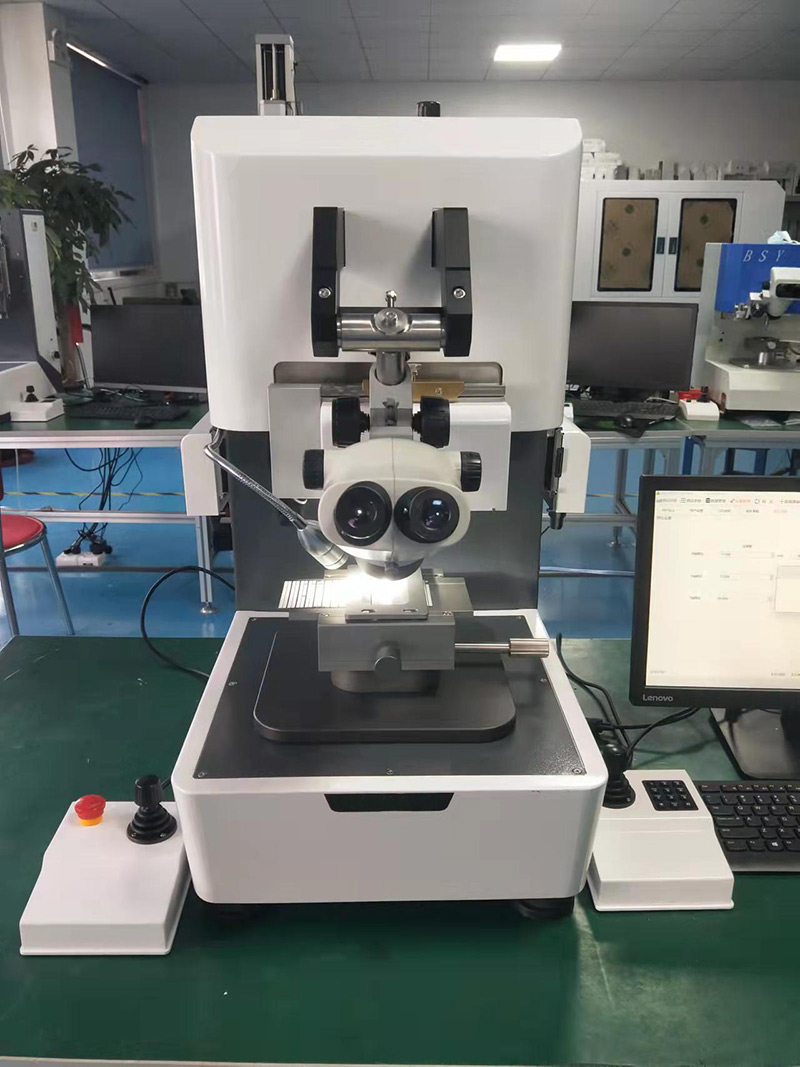

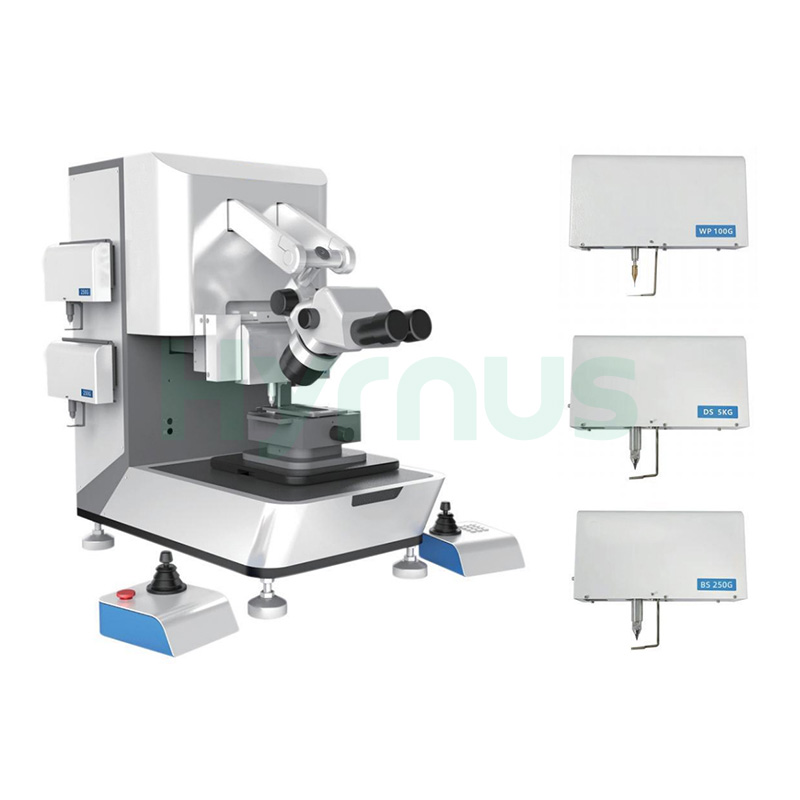

HY-PT8100 supports multiple test types including push testing (gold ball/chip), pull testing (bond wire), compression testing, and tweezer pull testing, with a wide range of interchangeable sensor modules from 25g up to 200kg (customizable upon request). The system achieves comprehensive test accuracy of ±0.1% and sensor accuracy of ±0.003%, featuring a 360° rotatable platform with XY-axis effective travel of 100×100mm, repeat positioning accuracy of ±5μm, and precision of ±2μm within 2mm range, along with Z-axis effective travel of 100mm and shear accuracy of ±1μm within 2mm range. Equipped with a high-definition continuous zoom microscope (optional trinocular with CCD camera), dual joystick four-way operation, proprietary high-resolution 24BitPlus data acquisition system, intelligent lighting control, and safety limit/speed control technology, the system operates on 110V–220V, 3A, 50/60Hz with air supply of 4.5–6 Bar. The instrument measures 650 × 600 × 760 mm, weighs approximately 80 kg, and includes a Lenovo/HP PC with genuine Windows 10/11, offering comprehensive equipment protection, ergonomic design, and customizable fixtures based on samples or drawings. With a 2-year warranty, free software upgrades, and standard calibration tools and weights provided
Product Features & Benefits
| Feature Category | Benefit Description |
| Test Versatility | Multiple specification test modules to meet diverse testing requirements. |
| Testing Precision | All sensors employ high-speed dynamic sensing and rapid data acquisition systems, ensuring precise and error-free test data. |
| Data Acquisition | Features the company's uniquely developed high-resolution (24BitPlus ultra-high resolution) data acquisition system. |
| Operational Safety | Incorporates proprietary safety limit and speed control technology for effortless operation. |
| Lighting System | Features proprietary intelligent lighting control and adjustment system to minimize visual strain from light sources. |
| Observation Comfort | Standard high-definition observation microscope reduces operator eye fatigue. |
| Operational Convenience | Dual joystick four-way operation and user-friendly software configuration ensure straightforward, convenient operation. |
| Ergonomics | Ergonomic design enhances comfort during use. |
| Equipment Protection | Comprehensive equipment protection prevents damage from operator misoperation. |
| Customization Capability | Robust R&D capabilities enable customised products tailored to client requirements. |
| After-sales Support | Comprehensive after-sales support ensures worry-free operation. |
Equipment Specifications
| Model | HY-PT8100 |

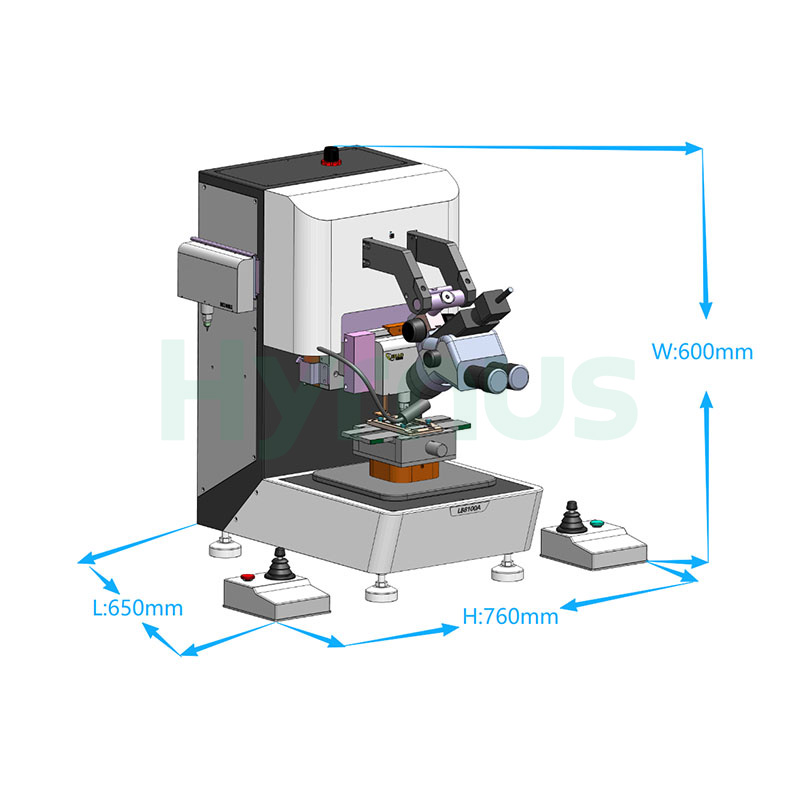

| Dimensions | 650mm (L) × 600mm (W) × 760mm (H) (including left/right control handles) |
| Weight | Approx. 80KG |
| Power Supply | 110V-220V, 3A, 50/60Hz (dual voltage compatible) |
| Air Supply | 4.5-6 Bar |
| Control Computer | Original Lenovo/HP PC |
| Operating System | Genuine Windows 10/11 |
| Microscope | High-definition continuous zoom microscope; optional trinocular microscope with high-definition CCD camera |
| Sensor Replacement | Manual replacement; software automatically identifies module range; supports custom test modules and weights |
| Platform & Fixtures | 360° rotatable platform; compatible with various test fixtures; 1 set of standard fixtures provided (customizable based on samples/drawings) |
| XY-axis | Effective travel: 100mm×100mm (expandable with vacuum platform); repeat positioning accuracy: ±5μm; movement speed: controlled by Hall joystick, max 6mm/s; precision: ±2μm within 2mm range |
| Z-axis | Effective travel: 100mm; resolution: high-precision; movement speed: controlled by Hall joystick; shear accuracy: ±1μm (within 2mm range) |
| Sensor Accuracy | Comprehensive test accuracy: ±0.1%; sensor accuracy: ±0.003% |
| Quality Assurance | 2-year warranty (excluding human-induced damage); free software upgrades; standard calibration tools and weights provided |
| Testing Types | Destructive and Non-destructive |
Test Module Specifications
| Push Testing - Gold Ball/Chip | Linear Calibration Points | Pull Testing - Bond Wire | Linear Calibration Points |

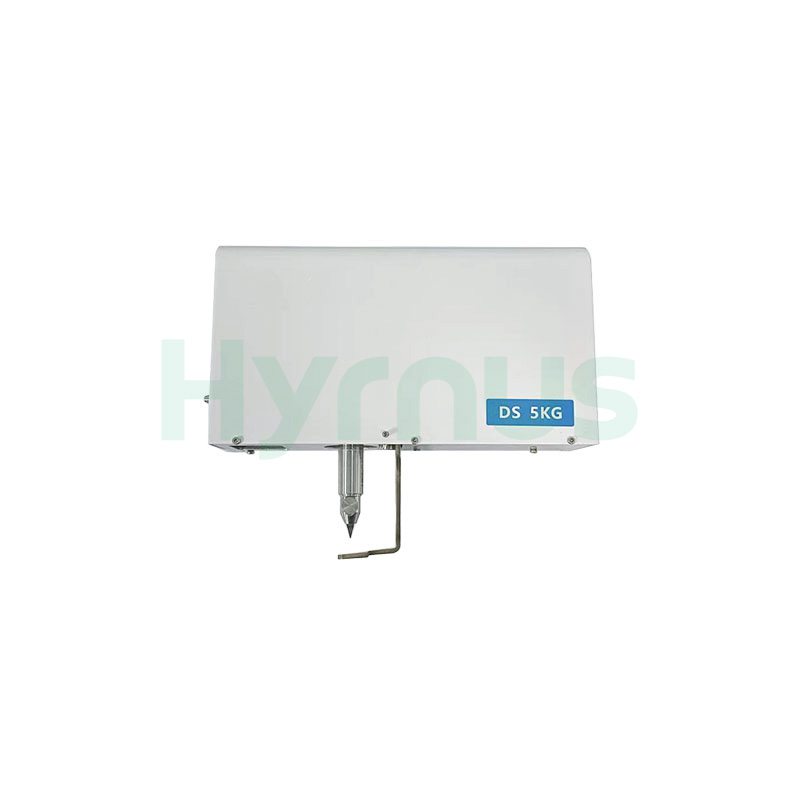

| BS250G | 25g, 50g, 100g, 250g | WP25G | 2.5g, 5g, 10g, 25g |
| BS1KG | 100g, 200g, 500g, 1kg | WP50G | 5g, 10g, 25g, 50g |
| DS5KG | 500g, 1kg, 2.5kg, 5kg | WP100G | 10g, 25g, 50g, 100g |
| DS10KG | 2.5kg, 5kg, 7.5kg, 10kg | WP200G | 25g, 50g, 100g, 200g |
| DS20KG | 2kg, 4kg, 10kg, 20kg | WP1KG | 100g, 250g, 500g, 1kg |
| DS50KG | 10kg, 20kg, 40kg, 50kg | WP5KG | 500g, 1.25kg, 2.5kg, 5kg |
| DS100KG | 10kg, 20kg, 50kg, 100kg | WP10KG | 1kg, 2.5kg, 5kg, 10kg |
| DS200KG | 20kg, 40kg, 100kg, 200kg | WP20KG | 2.5kg, 5kg, 10kg, 20kg |
| Compression Testing | Linear Calibration Points | Tweezer Pull Testing | Linear Calibration Points |
| PP100G | 10g, 25g, 50g, 100g | TP100G | 10g, 25g, 50g, 100g |
| PP5KG | 500g, 1.25kg, 2.5kg, 5kg | TP1KG | 100g, 250g, 500g, 1kg |
| PP50KG | 5kg, 10kg, 25kg, 50kg | TP5KG | 500g, 1.25kg, 2.5kg, 5kg |
| Custom test modules with different ranges are available upon request | |||
-
Product Details
HY-PT800 Bond Tester is a carrier tape adhesion force tester designed for real-time monitoring of tape loading processes, featuring a high-precision dynamic sensing system with testing accuracy of ±0.25% and a sensor range of 0–500g (customizable with other ranges upon request).
HY-WE2002M Manual Wafer Expander machine is designed for die expansion processes in LED, transistor, integrated circuit, and other semiconductor device production. It integrates heating, film stretching, wafer expansion, and film fixing into one process, with adjustable temperature, expansion time, and return speed for stable and efficient operation.
HY-WE1130 Semi-automatic Wafer Expander is designed for 6-inch dicing tape processing. It uses electric heating to soften the tape and achieve uniform, flat wafer expansion. Manual loading, automatic waste film cutting and collection, safety light curtain protection, and dual-button operation ensure efficient and safe production.
HY-PT6000 Wire Bond Pull Tester is designed for dynamic mechanical testing in semiconductor packaging, LED, SMT, BGA, automotive electronics, and sensor manufacturing. It supports pull, shear, and pull-out testing of bonding wires, solder balls, chips, ribbons, and pins, providing reliable evaluation of bonding strength and process quality.
HY-HW3018 Ultrasonic Heavy Wire Bonder is used for internal lead bonding of medium- and high-power transistors, MOSFETs, various power modules, high-current fast recovery diodes, Schottky diodes, thyristors, IGBTs, and other special semiconductor power devices.
HY-GB2012 Gold Ball Wire Bonder is mainly used for internal lead bonding of high-power LEDs, laser diodes, small and medium power diodes, transistors, integrated circuits, sensors, and special semiconductor devices. It is especially suitable for wire bonding of high-power LED devices.
HY-WB2000 ultrasonic wire bonder uses fine aluminum wire, pressure, and ultrasonic energy to create reliable electrical connections between chips and substrates. It is suitable for microwave devices, RF modules, hybrid circuits, MEMS, optoelectronic devices, sensors, semiconductor devices, radar devices, COB/SOB packaging, and other microelectronic applications.
