HY-HW3018 Ultrasonic Heavy Wire Bonder is used for internal lead bonding of medium- and high-power transistors, MOSFETs, various power modules, high-current fast recovery diodes, Schottky diodes, thyristors, IGBTs, and other special semiconductor power devices.
Brand :
HYRNUSItem No. :
HY-HW3018Order(MOQ) :
1 SetWarranty :
One-Year Warranty and Lifetime MaintenancePayment :
T/TLead Time :
7-35 DaysProduct Origin :
ChinaUltrasonic Heavy Wire Bonder Aluminum Gold Ribbon Bonding Machine

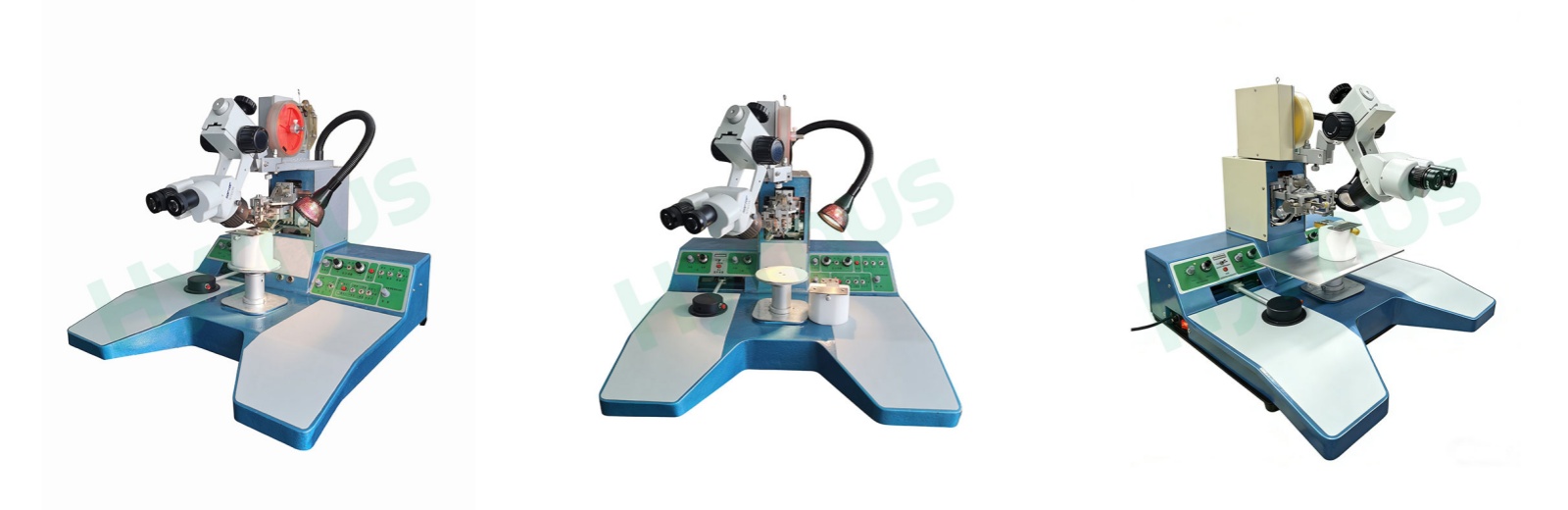

Product Introduction

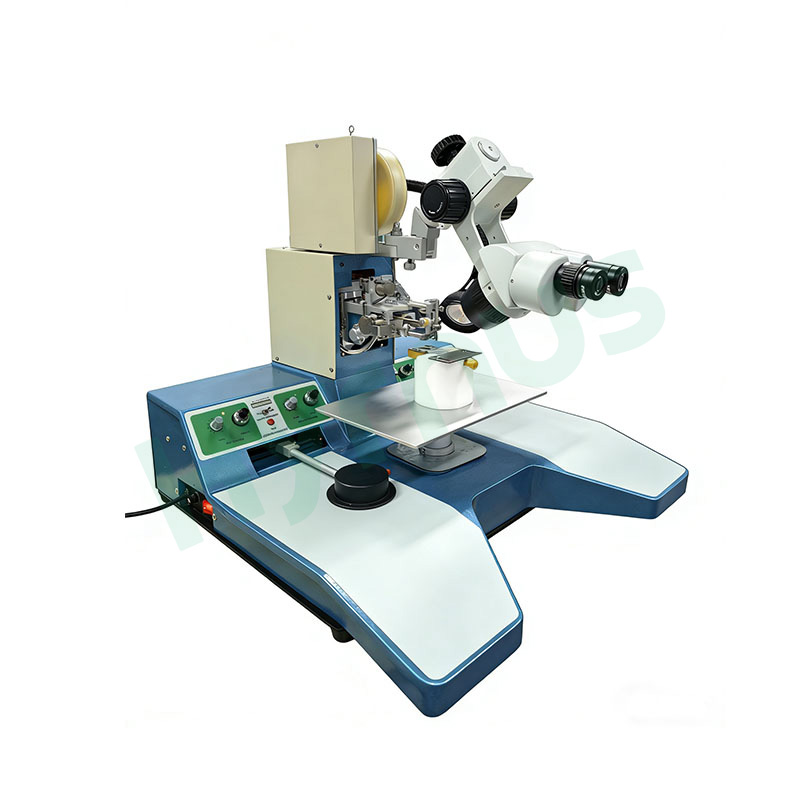

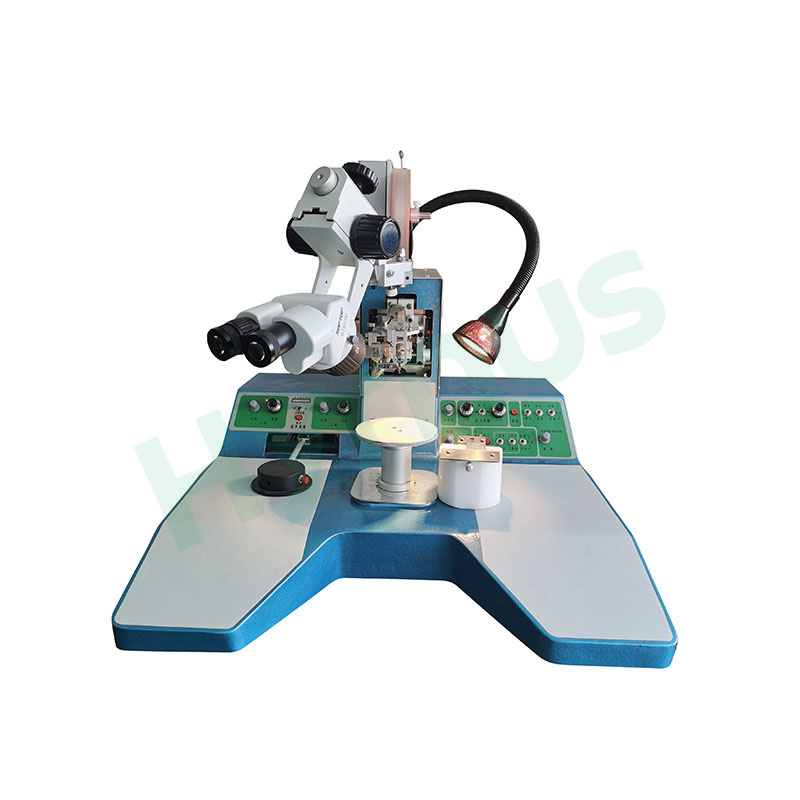

HY-HW3018 Ultrasonic Heavy Aluminum Wire Bonder is designed for internal lead bonding of medium- and high-power semiconductor power devices, including transistors, MOSFETs, power modules, high-current fast recovery diodes, Schottky diodes, thyristors, and IGBTs.
It is suitable for TO-3, TO-3P, TO-3PF, TO-3PN, TO-3PL, TO-220F, TO-126, TO-12F, TO-66, TO-251, TO-202 and other package types. It can also be used for automotive sensors, high-power pressure sensors, and other special semiconductor power devices.
The machine features stable performance, easy operation, simple maintenance, and a compact desktop structure. It is especially suitable for laboratory use, R&D applications, and small-batch production.
Features
*Stepper motor-driven Y-axis and Z-axis movement with precision screw and guide rail transmission, ensuring flexible motion, accurate positioning, and fast bonding speed.
*High ultrasonic power margin and newly designed transducer provide stable and reliable performance under high-power and long-time operation.
*Capillary installation detection function helps check whether the capillary is correctly installed, improving bonding reliability.
*Electromagnetic bonding pressure with automatic pressure control ensures stable and accurate pressure throughout the bonding process.
*Excellent ultrasonic, pressure, and motion control systems help achieve strong bond points, consistent bond quality, and good wire loop appearance.
*Supports dual bond points for the first bond and second bond, reducing bond resistance and improving reliability for large-area power devices.
*Can store wire span, loop height, and aiming height data for two wires, improving operation efficiency for power device bonding.
*Convenient parameter adjustment for ultrasonic power, bonding time, pressure, loop height, wire span, aiming height, and tail wire length.
*Capable of bonding aluminum ribbon, gold ribbon, copper wire, and other metal wires.

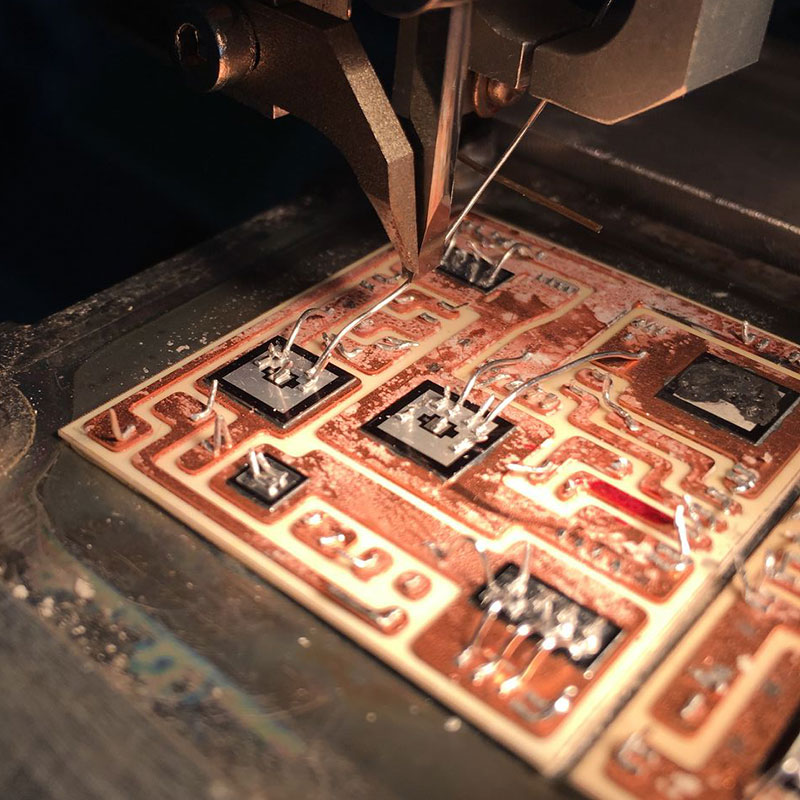

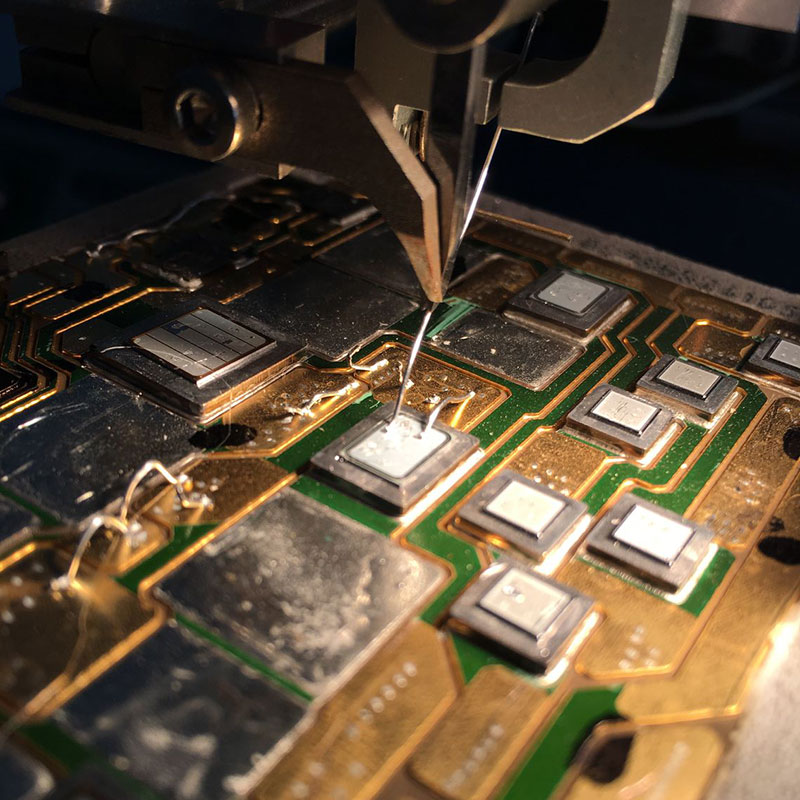

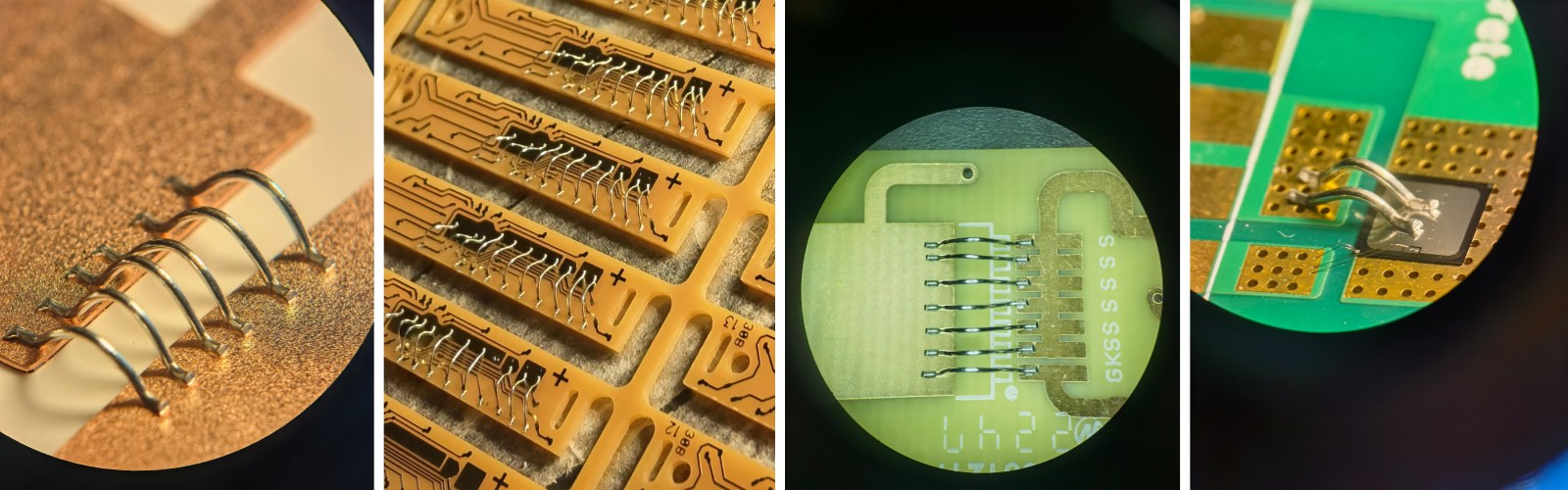

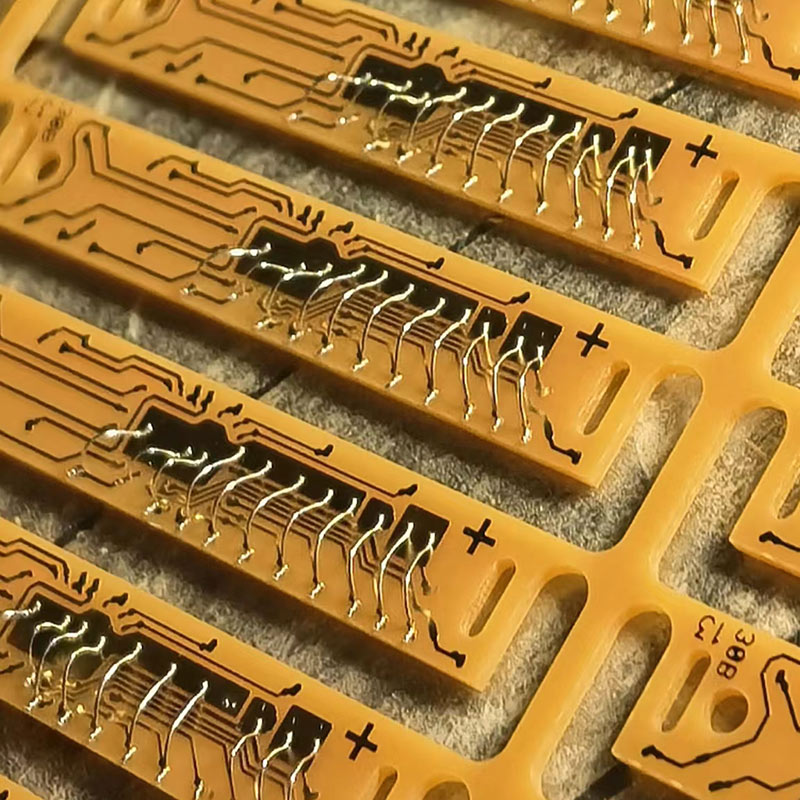

Applications
*Medium- and high-power transistors
*MOSFETs
*IGBTs
*Various semiconductor power modules
*High-current fast recovery diodes
*Schottky diodes
*Thyristors

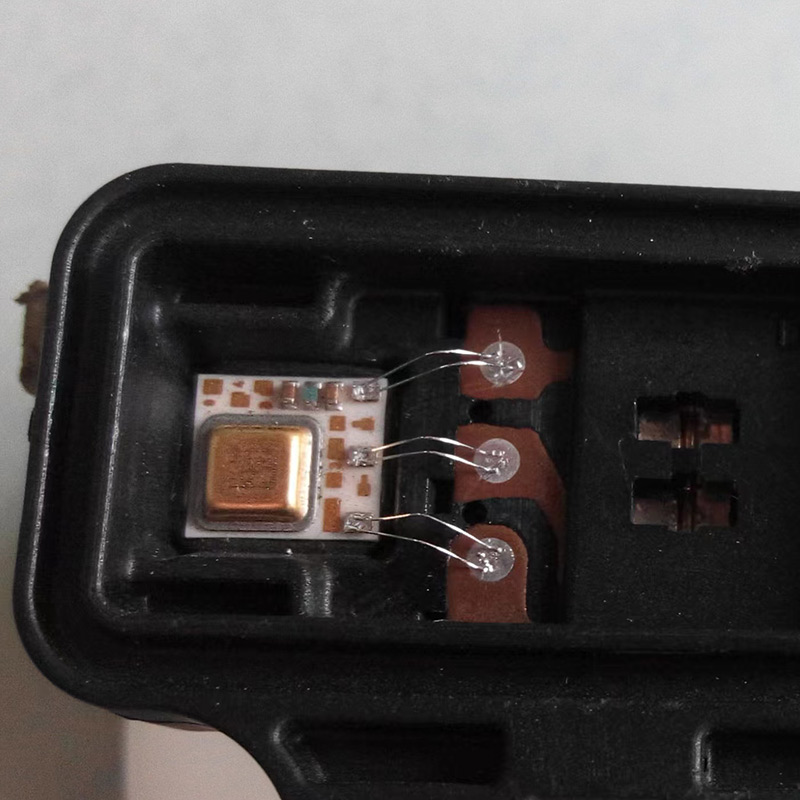

*Automotive sensors
*High-power pressure sensors
*Special semiconductor power devices
Applications with Customized Fixtures
*TO-3、TO-3P、TO-3PF、TO-3PN、TO-3PL、TO-220、TO-220F、TO-126、TO-66、TO-251、TO-202, Other customized package types
Technical Parameters
| Item | Specification |
| Power Supply | 220 V AC ±10%, 50 Hz, reliable grounding required |
| Max. Power Consumption | 200 W |
| Applicable Aluminum Wire Diameter | 100–500 μm / 4–20 mil |
| Ultrasonic Power | 0–30 W, 2 ranges, 2 channels; first and second bond can be adjusted separately |
| Bonding Time | 10–500 ms, 2 channels |
| Bonding Pressure | 30–1200 g, 2 channels, precise adjustment |
| Automatic Span from First Bond to Second Bond | 0–18 mm |
| Microscope | 15× / 30× two-step magnification |
| Worktable Movement Range | Φ25 mm |
| Lighting | Adjustable brightness |
| Overall Dimensions | 620 × 610 × 560 mm |
| Weight | Approx. 40 kg |
Product Details
HY-PT8100 Bond Tester is a multi-function manual push-pull force tester designed for comprehensive mechanical testing in semiconductor and electronic packaging applications.
HY-PT800 Bond Tester is a carrier tape adhesion force tester designed for real-time monitoring of tape loading processes, featuring a high-precision dynamic sensing system with testing accuracy of ±0.25% and a sensor range of 0–500g (customizable with other ranges upon request).
HY-WE2002M Manual Wafer Expander machine is designed for die expansion processes in LED, transistor, integrated circuit, and other semiconductor device production. It integrates heating, film stretching, wafer expansion, and film fixing into one process, with adjustable temperature, expansion time, and return speed for stable and efficient operation.
HY-WE1130 Semi-automatic Wafer Expander is designed for 6-inch dicing tape processing. It uses electric heating to soften the tape and achieve uniform, flat wafer expansion. Manual loading, automatic waste film cutting and collection, safety light curtain protection, and dual-button operation ensure efficient and safe production.
HY-PT6000 Wire Bond Pull Tester is designed for dynamic mechanical testing in semiconductor packaging, LED, SMT, BGA, automotive electronics, and sensor manufacturing. It supports pull, shear, and pull-out testing of bonding wires, solder balls, chips, ribbons, and pins, providing reliable evaluation of bonding strength and process quality.
HY-GB2012 Gold Ball Wire Bonder is mainly used for internal lead bonding of high-power LEDs, laser diodes, small and medium power diodes, transistors, integrated circuits, sensors, and special semiconductor devices. It is especially suitable for wire bonding of high-power LED devices.
HY-WB2000 ultrasonic wire bonder uses fine aluminum wire, pressure, and ultrasonic energy to create reliable electrical connections between chips and substrates. It is suitable for microwave devices, RF modules, hybrid circuits, MEMS, optoelectronic devices, sensors, semiconductor devices, radar devices, COB/SOB packaging, and other microelectronic applications.
