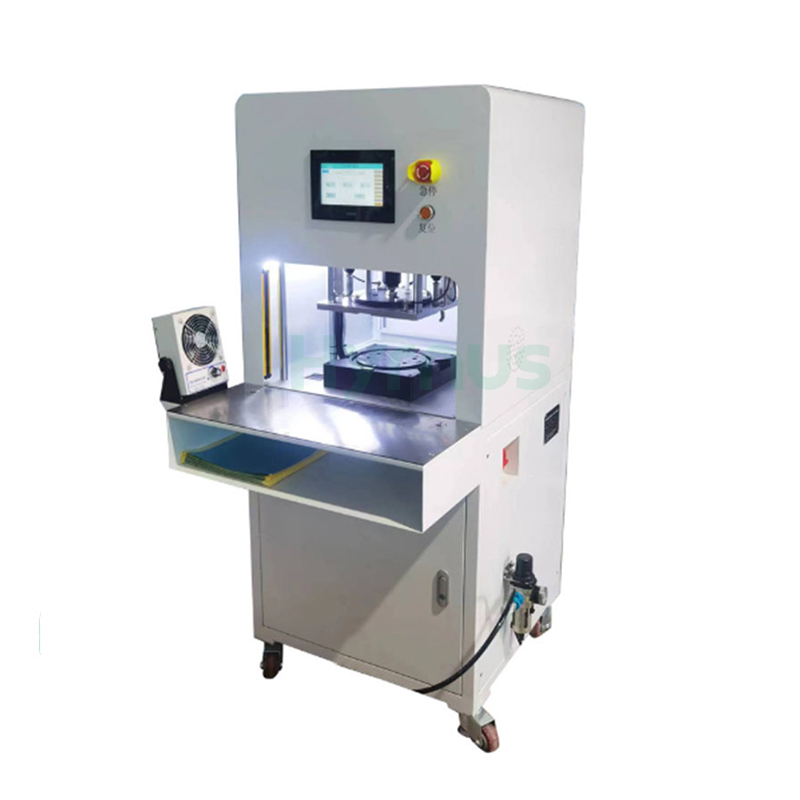

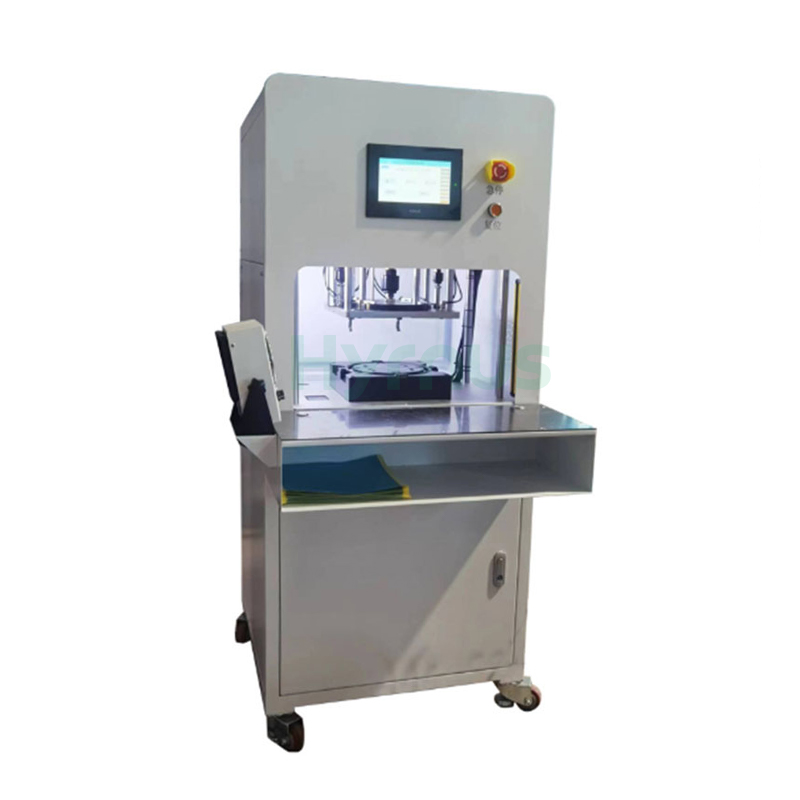

HY-WE1130 Semi-automatic Wafer Expander is designed for 6-inch dicing tape processing. It uses electric heating to soften the tape and achieve uniform, flat wafer expansion. Manual loading, automatic waste film cutting and collection, safety light curtain protection, and dual-button operation ensure efficient and safe production.
Brand :
HYRNUSItem No. :
HY-WE1130Order(MOQ) :
1 SetWarranty :
One-Year Warranty and Lifetime MaintenancePayment :
T/TLead Time :
7-35 DaysProduct Origin :
ChinaSemi-automatic Wafer Expander Wafer Film Expansion Machine for 6-inch Dicing Tape
Product Introduction
HY-WE1130 Semi-automatic Wafer Expander is designed for the expansion of 6-inch dicing tape after wafer cutting. The operator manually loads the dicing tape and installs the wafer ring, while the electrically heated expansion system softens the tape and controls the wafer temperature to ensure uniform spacing and a flat expansion result.
For improved operational safety, the machine is equipped with a full-coverage safety light curtain and a dual-button interlock start system. After expansion, the waste film is automatically cut and collected, simplifying operation and improving processing efficiency. It is suitable for semiconductor wafer, LED chip, and other precision chip packaging processes.
Main Functions
|
No. |
Details |
|
1 |
Designed for processing 6-inch dicing tape expansion |
|
2 |
Manual loading of dicing tape and mounting of the wafer ring |
|
3 |
Equipped with fully effective safety light curtain protection |
|
4 |
Dual-button interlock start function for enhanced operational safety |
|
5 |
Electrically heated expansion process, which softens the dicing tape while controlling wafer temperature, resulting in uniform and flat expansion |
|
6 |
Automatic waste film cutting and automatic waste film collection system |
Technical Specification
| Parameter | Specification |
| Name | Semi-automatic Wafer Expander |
| Model | HY-WE1130 |
| Applicable Wafer Film | 6-inch dicing tape / wafer film |
| Operating Voltage | AC220V |
| Operating Air Pressure | 0.5~0.7 MPa |
| Dimensions (L×W×H) | 560 × 820 × 1360 mm |
| Power Supply | 220V / 50Hz |
| Power Rating | 300W |
| Weight | 120 kg |
| Operating Environment | 10~35 ℃, 35~85% RH |
