Atmospheric Direct Jet Plasma Cleaner for IC Packaging Pre-treatment Surface Activation

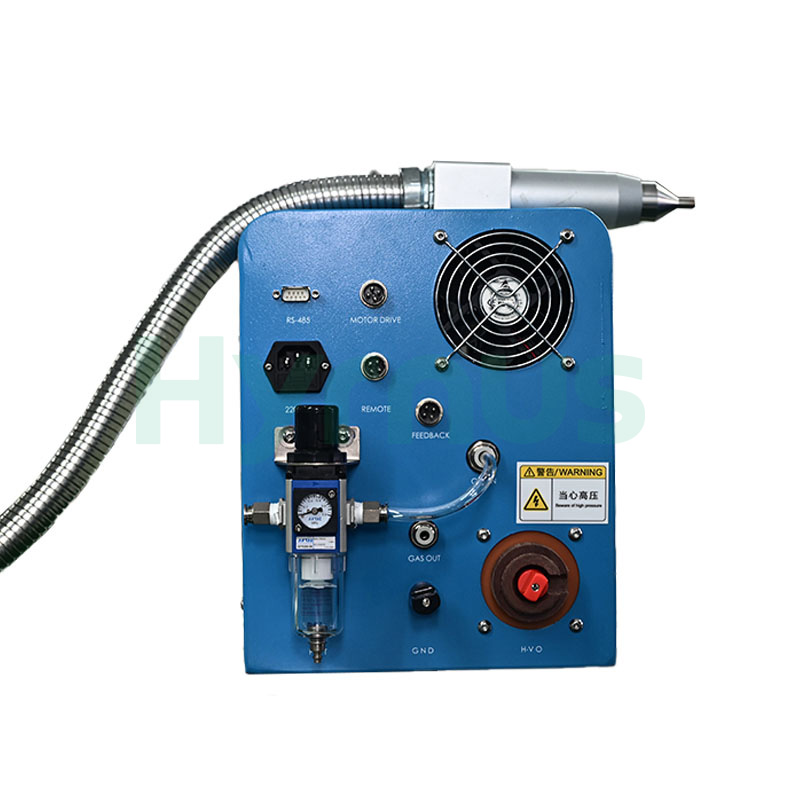

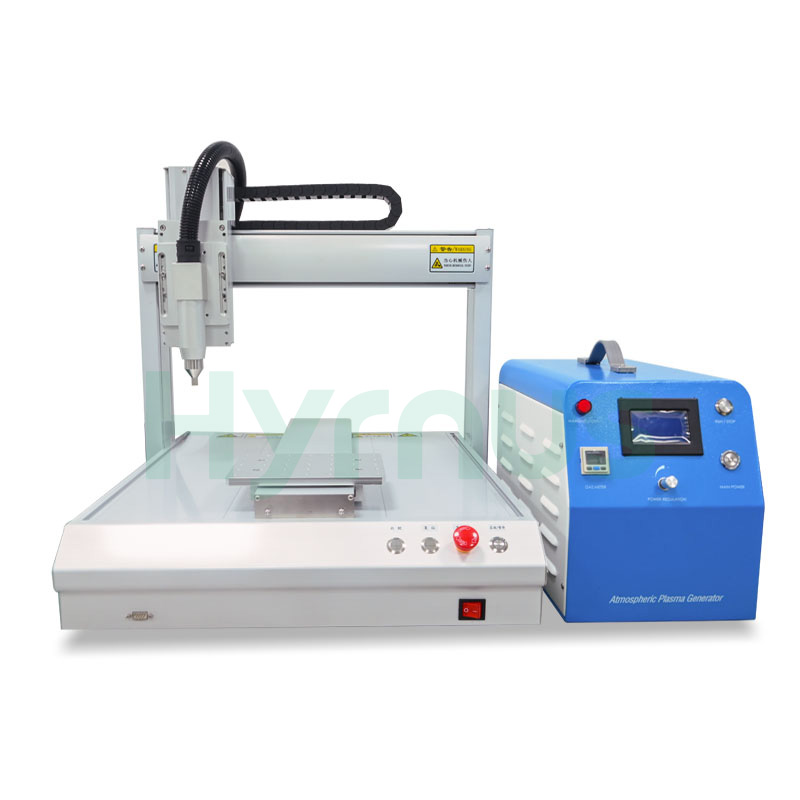

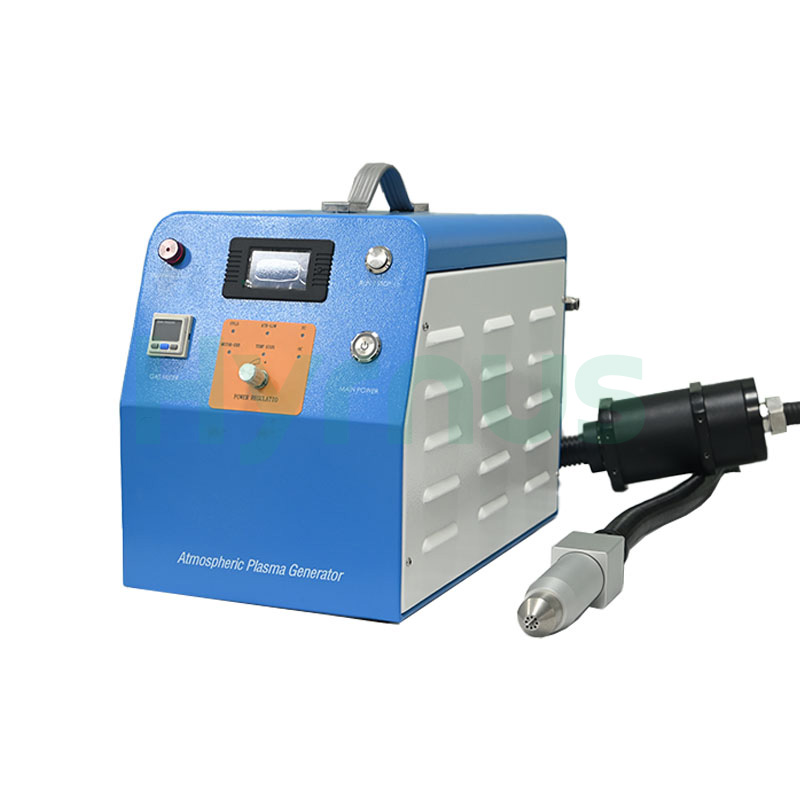

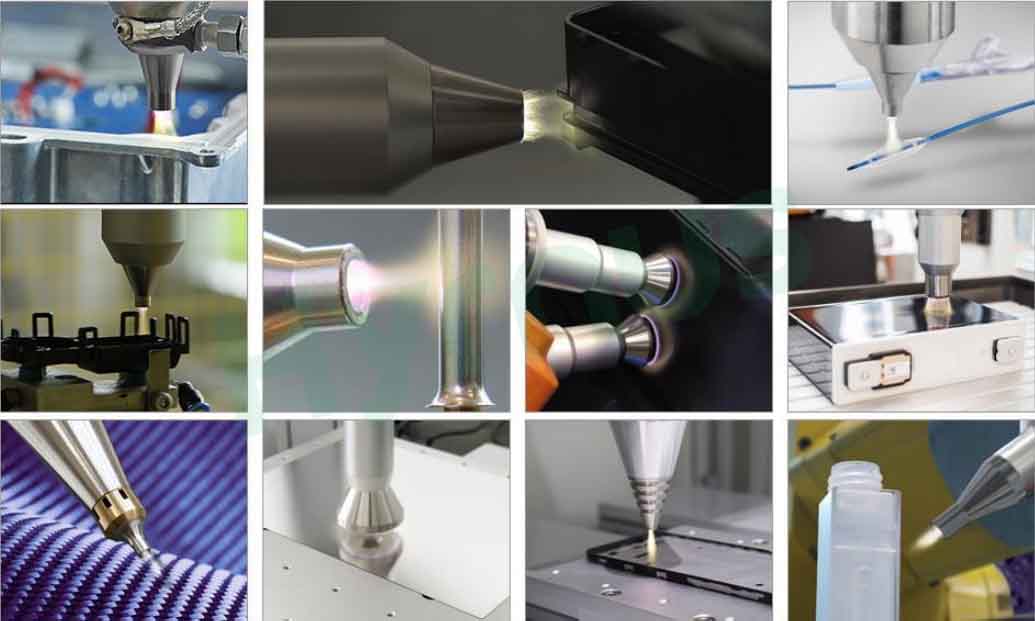

Product Features

1. Military-grade hardware design with a wide operating temperature range of -25℃ to 50℃. Complying with MIL-HDBK-217F standard, its MTBF reaches ≥190,000 hours at 25℃, suitable for various harsh production environments.

2. Digital control system with display screen for real-time monitoring and strong anti-interference performance.

3. Equipped with ST ARM chip, it supports remote debugging & communication for seamless integration into diverse production lines. Self-developed intelligent software enables automatic power matching for stable operation.

4. Supports analog communication interface and RS485 remote communication.

5. Multi-dimensional real-time detection: temperature, air pressure, transformer arc voltage, transformer primary peak current and grid current.

6. Comprehensive protection functions: over-temperature, overload, short-circuit, open-circuit, electric leakage and misoperation protection.

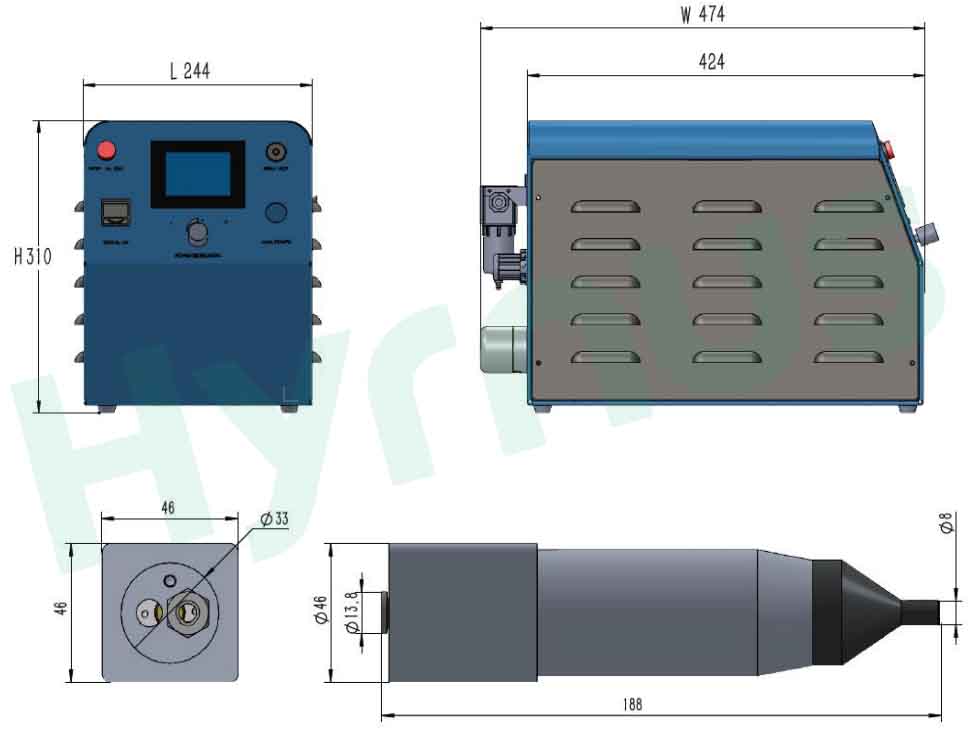

Product Dimension Diagram

Technical Specifications

Item	Parameter
Product Name	Atmospheric Direct Jet Plasma Cleaner
Model No.	HY-AD03
Power Output Range	300~1200W (adjustable), precise power control with outstanding stability
Treatment Width	2–10 mm
Treatment Height	5–15 mm
Processing Speed	10–300 mm/s
Air Consumption	50 L/min @ 0.1MPa; 85 L/min @ 0.2MPa
High-Voltage Cable Length	3.5 m
Power Output Accuracy	±1%
Control Type	Digital Control
Overall Dimension	WDH: 244mm479mm310mm
Torch Weight	2 KG
Machine Weight	20 KG
Input Power Supply	220VAC±20%, 50–60Hz
Operation Control Mode	Local Control & Remote Control
Remote Communication Interface	Analog signal interface, RS485 remote communication
Power Factor	95%
Input Air Pressure Range	0.4MPa ~ 0.6MPa, tolerance ±20%
Output Air Pressure Range	0.1MPa ~ 0.2MPa, tolerance ±20%
Power Board Design	Modularized
Anti-interference Performance	Excellent
Data Monitoring Items	Air pressure, mainboard temperature, transformer arc voltage, operating current, operating voltage, actual output power, power consumption, operating frequency, power factor
Alarm Fault Types	Short circuit, open circuit, over-temperature, air pressure failure, system overcurrent, system undervoltage, system overvoltage, high-voltage output open circuit, high-voltage output short circuit, AC input fault, torch abnormality
Alarm Notification Modes	Audible buzzer alarm + touch screen pop-up reminder



Factory Utility Specifications



Item	Requirement
AC Power Supply Specs	Power Source: Single-phase AC220V, 50/60Hz, 11A; Grounding resistance less than 4 Ω
Factory Exhaust System	Flow Rate: 5 m³/min
	Material: Corrosion-resistant material
Factory Compressed Air Requirement	Dry, oil-free and water-free compressed air
	Pipe Diameter: 8 mm
	Pipe Material: PU tube
	Pressure Range: 0.4–0.6 MPa
