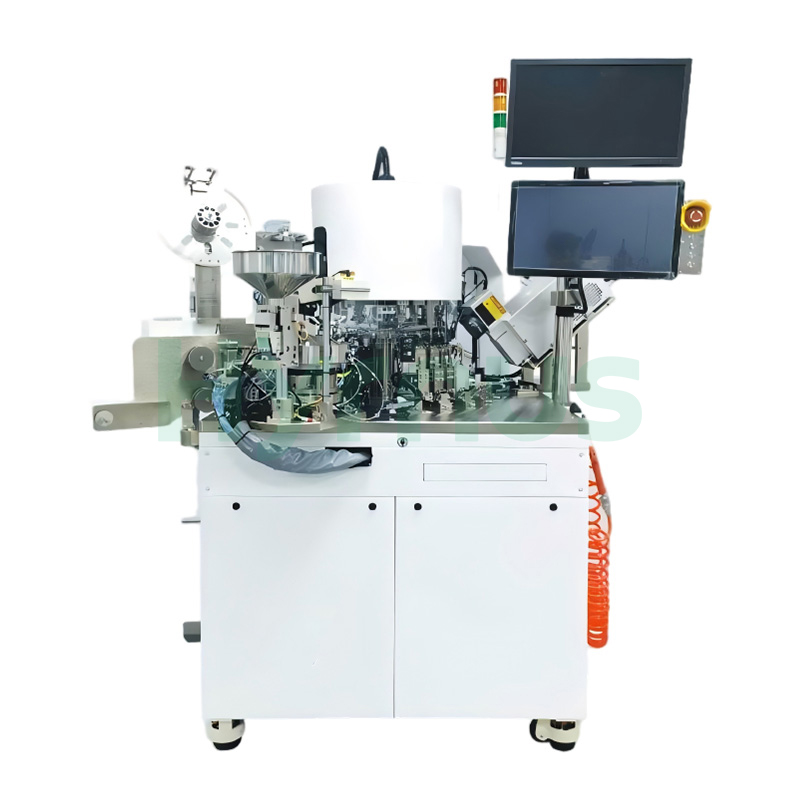

HY-TH800 Chip Sorting Machineis is a high-performance turret-style integrated test handler engineered for semiconductor final test applications across SOD, SOT, SOP, SMA, QFN, DFN, TO252, and TOLL package families.
Brand :
HYRNUSItem No. :
HY-TH800Order(MOQ) :
1 SetWarranty :
One-Year Warranty and Lifetime MaintenancePayment :
T/TLead Time :
7-35 DaysProduct Origin :
ChinaHigh Speed Turret-Style Integrated Test System for Semiconductor Final Test
Product Introduction
HY-TH800 Semiconductor Handler delivers from 35,000 to 50,000 units per hour, this system combines precision mechanics with robust bowl feeder material supply to sustain continuous, high-volume production. Four test stations with TTL interface enable parallel testing, maximizing efficiency while maintaining stringent quality control at each stage. The turret accommodates 20 to 32 interchangeable nozzles, providing configuration flexibility for diverse device geometries. With MTBA exceeding 60 minutes and MTBF surpassing 168 hours, the HY-TH800 delivers exceptional uptime for demanding 24/7 manufacturing environments. Its compact 1000×1100×1600 mm footprint and 900 kg weight optimize floor space utilization without compromising performance. This system serves IC packaging foundries, discrete component lines, and optoelectronic assembly operations seeking dependable, high-speed final test handling with minimal operator intervention and consistent output quality.
Target Industries
IC packaging and testing
Discrete device manufacturing
Optoelectronic device manufacturing
R&D and production facilities in related fields
Technical Specifications
| Parameter | Specification |
| UPH | 35,000 – 50,000 PCS |
| Feeding Method | Bowl feeder |
| Test Stations & Interface | 4 test stations, TTL interface |
| Number of Nozzles | 20 / 24 / 25 / 30 / 32 PCS |
| MTBA | ≥ 60 min |
| MTBF | ≥ 168 hr |
| Dimensions (L×W×H) | 1000 × 1100 × 1600 mm |
| Weight | 900 kg |
| Compressed Air | 5 kgf/cm² |
| Power Supply | 3-phase 380V or single-phase 220V |
| Power | 3000 W |
Process
