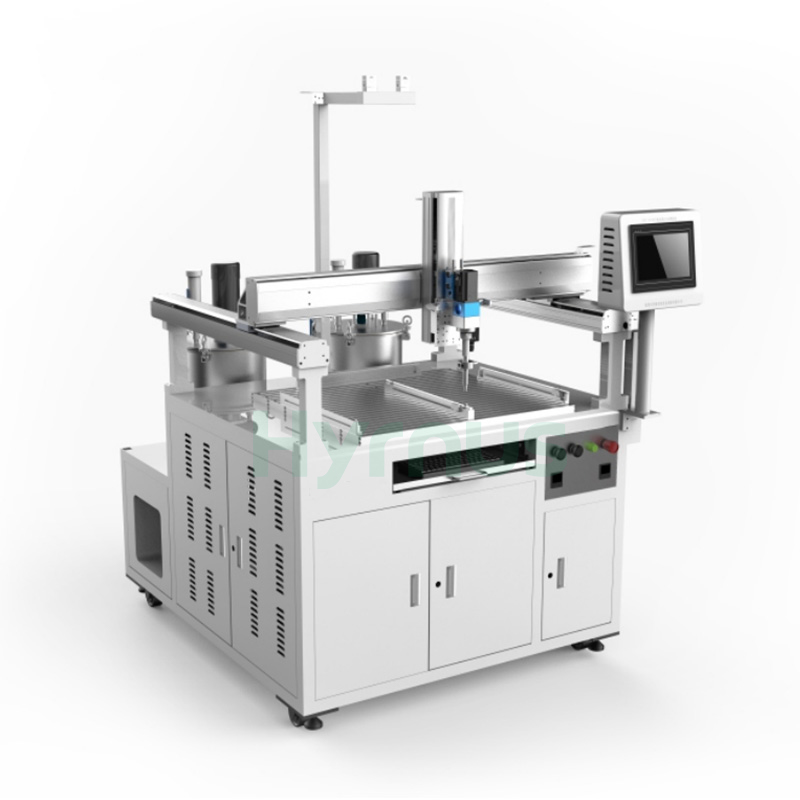

HY-AP3030 Auto Glue Dispenser is designed for precise A/B glue proportioning, mixing and quantitative dispensing. Equipped with a proprietary motion controller and high-precision three-axis manipulator, it delivers stable, accurate and efficient dispensing performance for PCB, electronic components, lighting, automotive accessories and other industries.
Brand :
HYRNUSItem No. :
HY-AP3030Order(MOQ) :
1 SetWarranty :
One-Year Warranty and Lifetime MaintenancePayment :
T/TLead Time :
7-35 DaysProduct Origin :
ChinaAuto Glue Dispenser Liquid Glue Dispensing Equipment
Product Overview
HY-AP3030 Auto Glue Dispenser is suitable for precise dispensing of various A/B adhesives in PCB manufacturing, electronic components, lighting products, small home appliances, automotive accessories, filters and other applications.
The machine adopts a proprietary motion controller with advanced algorithms and a high-precision three-axis manipulator to achieve fast and accurate 3D dispensing motion. Precise metering motor control ensures accurate mixing ratio, automatic mixing and quantitative dispensing. It also supports vacuum loading and vacuum degassing, with optional heating, stirring, automatic cleaning and pressure monitoring functions to meet different adhesive process requirements. The stable operating system and user-friendly interface make the machine easy to operate and cost-effective for production use.
Product Features
| No | Discription |
| 1 | Proprietary motion controller with advanced algorithms, combined with a high-precision three-axis manipulator, achieves high-speed and precise 3D motion |
| 2 | Precise control of metering motors ensures accurate ratio mixing of two-component adhesives, automatic mixing, and automatic quantitative dispensing |
| 3 | Equipped with vacuum loading and vacuum degassing; optional functions such as heating, stirring, automatic cleaning, and pressure monitoring are available to handle various complex adhesive environments |
| 4 | Stable operating system with user-friendly interface and high cost-effectiveness |
Applications
*PCB (printed circuit board) industry
*Electronic components industry
*Electric light source industry
*Small home appliance industry
*Igniter industry
*Automotive accessories industry
*Filter industry, and many others.
Equipments Parameter
| No | Category | Parameter |
| 1. | Model | HY-AP3030 |
| 2. | Effective Working Travel | 700 (X) × 500 (Y) × 100 (Z) mm (dual-head travel) |
| 3. | Max. Speed | X/Y: 300 mm/sec, Z: 150 mm/sec |
| 4. | Mixing Ratio (by weight) | 30 : 100 |
| 5. | Ratio Control System | Metering pump |
| 6. | Ratio Accuracy | ±2% (based on 100g) |
| 7. | Operation Mode | Start switch |
| 8. | Dispensing Accuracy | ±2% (based on 100g) |
| 9. | Flow Control Method | Digital input |
| 10. | Dispensing Speed | Adjustable according to actual requirements |
| 11. | Automation Control System | Industrial PC + Motion control card |
| 12. | Loading Method | Vacuum automatic suction / manual pouring |
| 13. | Interface Display System | Windows 7 |
| 14. | Cleaning Method | Semi-automatic cleaning |
| 15. | Mixing Method | Dynamic mixing |
| 16. | Anti-curing Time | 0–10000 sec |
| 17. | Applicable Viscosity | 100–30000 CPS |
| 18. | Air Supply | 0.5–0.7 MPa |
| 19. | Power Supply | AC220V, 50 Hz |
| 20. | Machine Dimensions (L×W×H) | 1320 × 1450 × 2200 mm |
Working Process
| No | Discription |
| 1 | Separate storage tanks for Component A and Component B, supporting manual or vacuum material loading |
| 2 | Storage tanks provide functions such as stirring, heating, and degassing |
| 3 | Processed single-component adhesive flows through discharge pipes into metering pumps A and B respectively |
| 4 | Software-controlled ratio and flow rate deliver the adhesive through supply pipes to the mixing valve outlet |
| 5 | Dynamic mixing valve thoroughly mixes Component A and Component B into a uniform adhesive for curing |
| 6 | Dispensing time is programmable via system parameters, simple and convenient |
| 7 | Since mixing occurs only inside the mixing tube, automatic cleaning is applied only to the valve and the mixing tube section |
