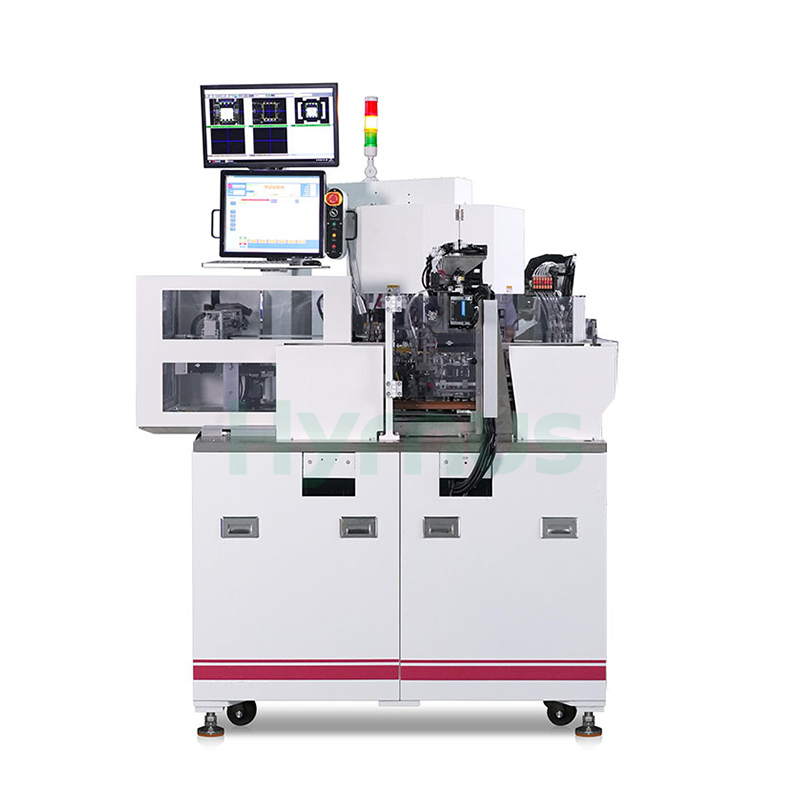

HY-TS936T Turret Sorting Machine is designed for tray-based handling of discrete devices and IC components.
Brand :
HYRNUSItem No. :
HY-TS936TOrder(MOQ) :
1 SetWarranty :
One-Year Warranty and Lifetime MaintenancePayment :
T/TLead Time :
7-35 DaysProduct Origin :
ChinaTray Transfer Turret Sorting Machine for Discrete Devices and IC Components
Product Overview
HY-TS936T Turret Sorting Machine supports tray loading and unloading, appearance inspection, tape-and-reel output, and high-speed testing and laser marking. Equipped with a high-precision DDR drive system and integrating the laser marking system with the vision system, the machine ensures stable performance and delivers high-quality product output.
Product Advantage
| No. | Advantage Description |
| 1 | Supports multiple loading and binning configurations, including Tray to Reel, Bowl to Tray, and Tray BIN sorting. |

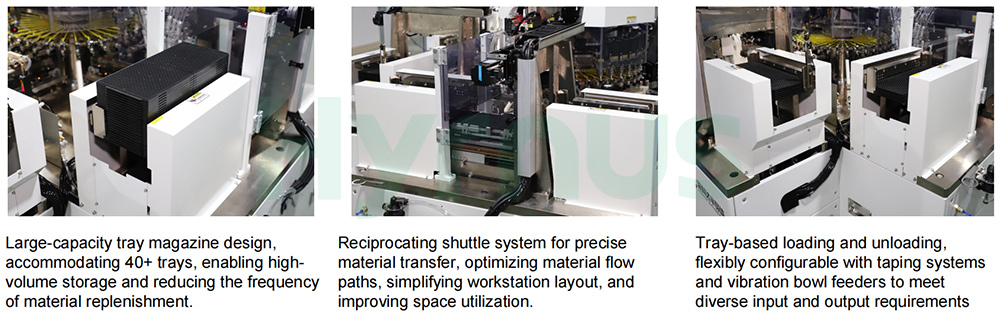

| 2 | Tray transfer mechanism: automatic tray exchange with smooth and stable positioning, ensuring high accuracy during product movement. |
| 3 | Main turret: the main turret is equipped with 36 pickheads driven by independent motor, which can accurately send the product to the center of each station through the adsorption of the pickhead. |
| 4 | Orientation aligner: accurate positioning and commutation of the product, positioning tolerance ≤0.005mm, directional accuracy up to 0.1 degrees. |
| 5 | Marking station: integrates laser marking, dust extraction, and marking vision inspection, significantly improving marking speed. |
| 6 | Tape-and-reel module: supports automatic taping as well as automatic material replenishment. |
| 7 | Post-sealing vision inspection available as an option. |
Technical Parameters
| Parameter | Specification |
| Suitable components | DFN/QFN3X3-11X11、PDFN3X3-5X6、LGA |
| UPH | Max 10K (test time less than 200ms) |
| Test station | Supports 6 station testing |
| Contact type | Pop-up type |
| Classification | 2-Tray+1 |
| Loading / Unloading | Tray to reel(tape) / Bowl to Tray/ Tray to Tray |
| Press-down mode | Servo motor+CAM / Imported linear motor / Domestic linear motor |
| Force control accuracy | Force control can achieve ±10%(≥10N) / ±5%(2-10N, support adaptive calibration) |
| Stability | MTBA>60min, MTTA<3min, MTBF>168H |
| Air pressure | Compressed air: 0.4-0.7MPa, Vacuum: >65KPa |
| Power supply | AC220V 50/60Hz |
| Laser marker | 10W laser maker: |
| HYCW10Y-S minimum letter height: 0.3mm line width: 0.045mm-0.06mm | |
| HYCW10Y-H minimum letter height: 0.2mm line width: 0.02mm-0.03mm | |
| Image parameter | Camera and resolution: 1.6 million CCD camera, resolution H1280*V1080 pixelsAccuracy: 0.013 mm/pixel; Cycle period: <35ms |
| Bus Program | High precision, high speed, with all servo parameters open for setting, facilitating equipment debugging and monitoring. Permanent storage of various raw MTBA data, equipment operation logs, machine fault alarm codes and messages, and other data. |
| Dimension | 1600*1600*1900(mm) |
| Pickheads | 36 |
| Important components | Imported DDR |
Product Structure and Working Principle
With a total of 18 to 24 module stations, any configuration can be changed according to market needs. HY automatic high-speed test sorting machine Features:
| No. | Item | Description |
| 1 | UPH up to 45K to 50K per hour | 1. Turret design is adopted |
| 2. Using Keens PLC + PC system | ||
| 3. Servo motor system is widely used | ||
| 4. Equipped with the industry's optical system | ||
| 2 | High Flexibility | 1. Supports various feeding systems |
| 2. Equipped with modular system for easy debugging and maintenance | ||
| 3. Equipped with dual displays to cover the whole machine 360 degrees for easy debugging and maintenance | ||
| 3 | Iconic multi-language user interface | Win7 operating system |
| 4 | Design | Standardized designs |
Workflow
Working Principle Diagram: Components from the vibration plate feeding to the completion of the whole cycle of the process, machine working principle DDR motor for the rotation of the suction nozzle driven action 50ms a cycle, PLC control servo motors, solenoid valves, cylinders, inductors to complete a series of workstations with the completion of the components associated with the action of detection. The following figure:
Powerful Software Functions
Built on IoT technology, our software platform connects production, process, and environmental data to support smarter factory operations. With proven algorithmic models, it helps optimize efficiency, improve quality management, and enable predictive maintenance, reducing downtime, defects, and yield losses.
Quality Control Process
Product Details
FAQs
HY-BT12 Blue Tape Taping Machine is a high-speed blue tape taping machine designed to precisely pick chips from blue tape wafers and load them into carrier tapes for IC and LED devices.
HY-TT2401 Handler is a high-performance integrated handler that combines electrical testing, optical inspection, and taping packaging into a single automated system, designed for semiconductor packaging and test applications.
HY-TT1801 Test Sorter is applied to taping of discrete devices, ICs, DFN components and rectifier bridges.
HY-CS3025 Semiconductor Handler is dedicated to visual defect inspection, electrical performance testing, and finished product packaging of chip tantalum capacitors and multi-layer aluminum capacitors.
HY-CS3021 Chip Sorter is designed for visual defect inspection, electrical performance testing, and finished product packaging of miniature active and passive components.
HY-CS900 Semiconductor Handler Automated Test and Sorting Equipment for Process Automation.
HY-CS800 Sorter is Fully Automated High-Precision Sorting Equipment for the Final Test (FT) Stage
HY-WS600 Chip Sorting Machine integrates wafer-level inspection, high-precision sorting, automated loading/unloading, and data traceability in a single system.
