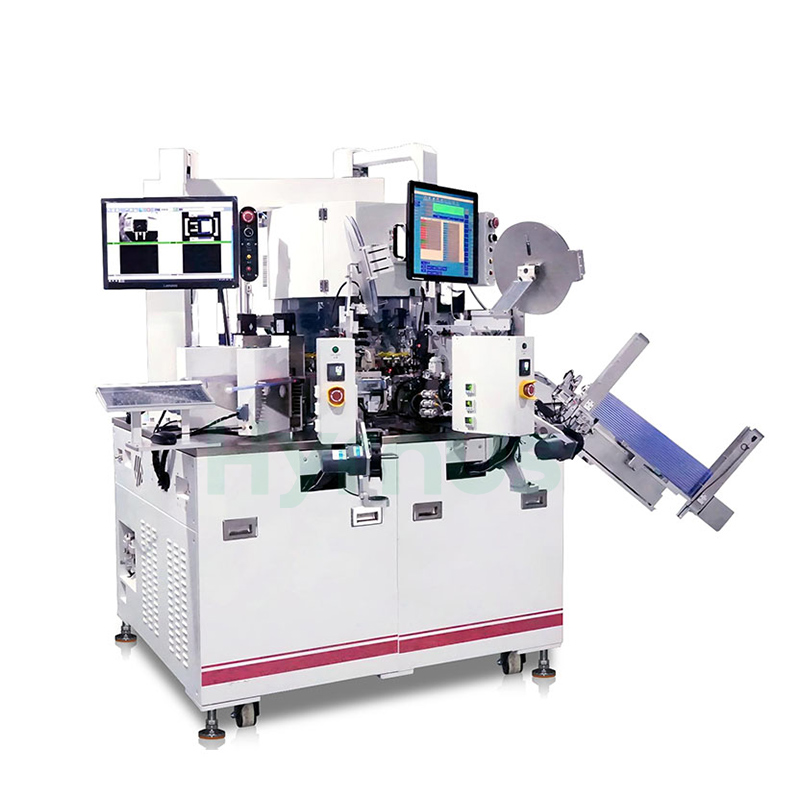

Tureet Test Handler Semiconductor for Large Package Size

HY-TS936P Turret Test Handler is designed for flexible testing and sorting applications. It supports multiple test stations, feeding methods and unloading configurations to meet diverse binning requirements and production capacity needs.

Brand :
HYRNUS
Item No. :
HY-TS936P
Order(MOQ) :
1 Set
Warranty :
One-Year Warranty and Lifetime Maintenance
Payment :
T/T
Lead Time :
7-35 Days
Product Origin :
China

Inquiry Now

Tureet Test Handler Semiconductor for Large Package Size

Product Overview

HY-TS936P Turret Test Handler is designed for multi-functional testing and sorting applications. It supports a wider selection of test stations and flexible combinations of feeding methods, as well as multiple unloading configurations to meet diverse binning and capacity requirements. The system also accommodates larger package sizes, including TO220/263/247, TO251, TOLL6R, LFPAK, PPAK 8×8, XJ836, and other straight-lead clamp-type packages.

Product Advantage

No.	Advantage Description
1	Mark Inspection Vision (2D marking inspection): Detects missing marks, double marks, broken strokes, extra strokes, and markings exceeding the molding area.
2	3D5S Inspection: Measures product dimensions and integrity; also inspects lead length, standoff height, lead tilt, lead width, and lead pitch.
3	In-Pocket Vision (tape pocket inspection): Detects defects such as package damage, contamination, and cracks inside the tape pocket (visually detectable defects).
4	Product Transfer: Main turret equipped with 36 vacuum pick heads; sub turret equipped with 20 clamp-type handlers.
5	Pick Head Functions: Shielding capability and automatic height calibration.
6	Tester Compatibility: Supports multiple brands of tester. Software is independently developed.
7	Operated via push-button switches and a standard keyboard for operation and data input, with workstation interlock functionality.
8	Orientation Turret: Automatically orients products according to material direction.
9	Number of Test Sites: Supports up to 8 spring-loaded test sites, ensuring high test accuracy.
10	Package Capability: For TO220, dry run UPH ≥ 11K (without testing, or with test + marking time ≤ 120 ms).

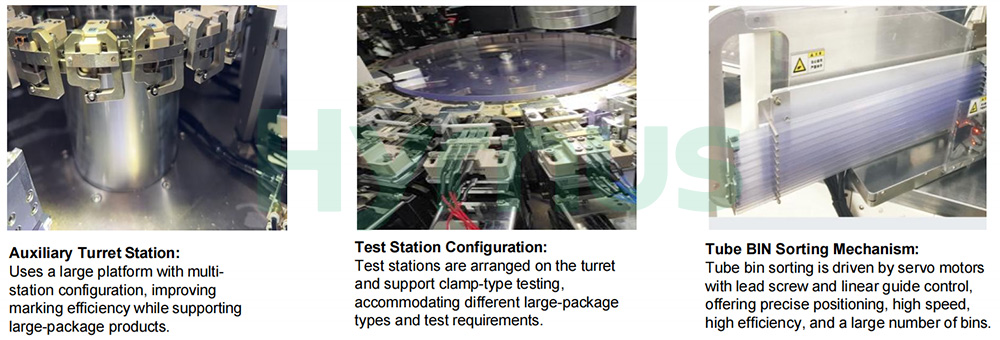

test handler semiconductor

Technical Parameters

Parameter	Specification
Suitable components	TO220/263/247, TO251, TOLL6R, LFPAK, PPAK8×8, etc., and all right angle clamp-testing products
UPH	Max 11K (testing time less than 30ms)
Test stations	Supports 8-station testing
Contact type	Clamp-testing
Classification	10 tubes in
Onload	Bowl in / Tube in
Offload	Tape out / Tube out
Press-down mode	Servo motor+cam / Imported linear motor / Domestic linear motor
Force control accuracy	Force control can achieve ±10%(≥10N) / ±5%(2-10N, support adaptive calibration)
Stability	MTBA>60min, MTTA<3min, MTBF>168H
Pressure	0.4-0.7MPa, vacuum >65KPa
Power source	AC220V / 380V 50/60Hz
Marking parameters	10W laser maker:
	HYCW10Y-S Minimum font height: 0.3mm; line width: 0.045mm-0.06mm
	HYCW10Y-H Minimum font height: 0.2mm; line width: 0.02mm-0.03mm
Image parameters	Camera and resolution:1.6-megapixel CCD camera, resolution: H1440*V1080 pixelsAccuracy: ≤0.015mm/pixel; cycle time: <50ms
Bus program	High precision, fast speed, open access to all servo parameter settings for easy equipment debugging and monitoring of various MTBA raw data records. Equipment operation logs, alarm codes, and information are permanently stored for data retrieval.
Dimensions	225112051900(mm)
Work stations	36 Work stations (main) + 20 Work stations (auxiliary)
Important components	Imported DDR

Product Structure and Working Principle

With a total of 18 to 24 module stations, any configuration can be changed according to market needs. HY automatic high-speed test sorting machine Features:

No.	Item	Description
1	UPH up to 45K to 50K per hour	1. Turret design is adopted
		2. Using Keens PLC + PC system
		3. Servo motor system is widely used
		4. Equipped with the industry's optical system
2	High Flexibility	1. Supports various feeding systems
		2. Equipped with modular system for easy debugging and maintenance
		3. Equipped with dual displays to cover the whole machine 360 degrees for easy debugging and maintenance
3	Iconic multi-language user interface	Win7 operating system
4	Design	Standardized designs

Turret Sorter Structure

Workflow

Working Principle Diagram: Components from the vibration plate feeding to the completion of the whole cycle of the process, machine working principle DDR motor for the rotation of the suction nozzle driven action 50ms a cycle, PLC control servo motors, solenoid valves, cylinders, inductors to complete a series of workstations with the completion of the components associated with the action of detection. The following figure:

IC handler workflow

Powerful Software Functions

Powered by IoT technology, we have developed industry-leading software solutions that integrate vast amounts of on-site process and environmental data into a unified platform. Through innovative algorithmic models, our system enhances production efficiency, quality control, and equipment predictive maintenance. These models are field-tested and validated to effectively improve yield and minimize downtime and defect-related losses.

Turret sorter software
