Ultrasonic Aluminum Wire bonding for The Battery Lead Connection

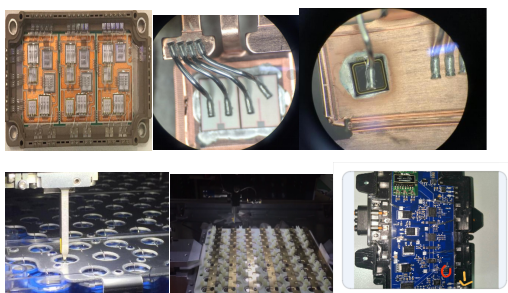

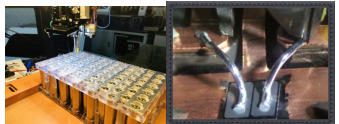

HY-BW830 Wire Bonder is an aluminum wire bonding system designed for power module assembly, primarily used for lead connection between batteries and bus bars, supporting aluminum wire diameters of 125–500 μm.

Brand :
HYRNUS
Item No. :
HY-BW830
Order(MOQ) :
1 Set
Warranty :
One-Year Warranty and Lifetime Maintenance
Payment :
T/T
Lead Time :
7-35 Days
Product Origin :
China

Inquiry Now

Ultrasonic Aluminum Wire bonding for The Battery Lead Connection

Product Introduction

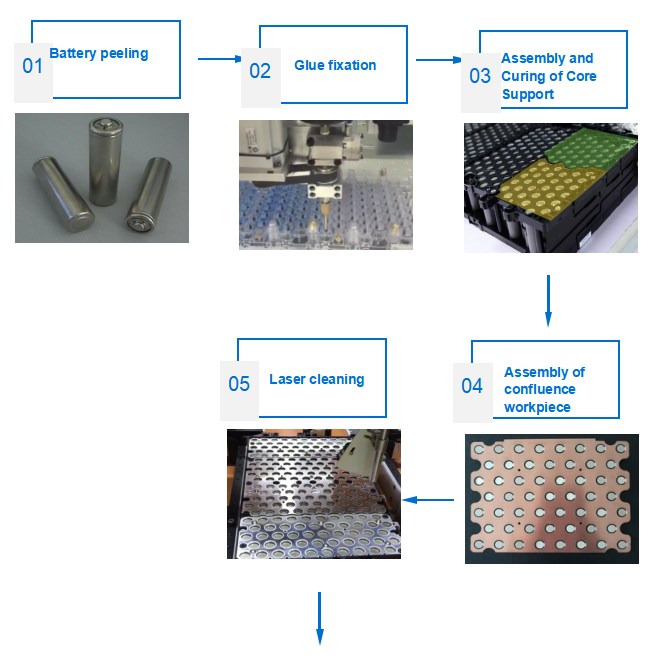

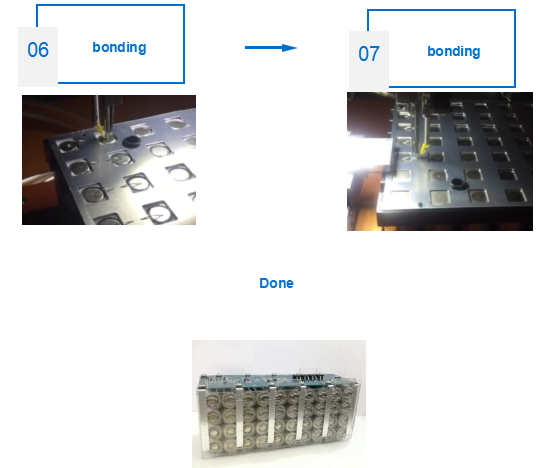

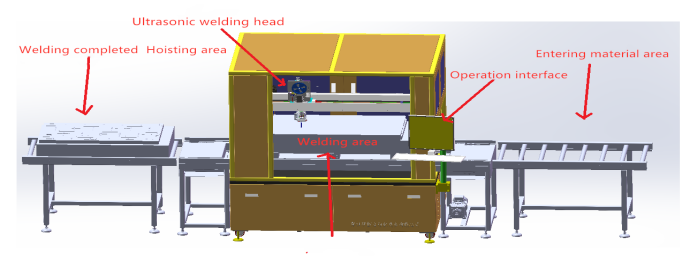

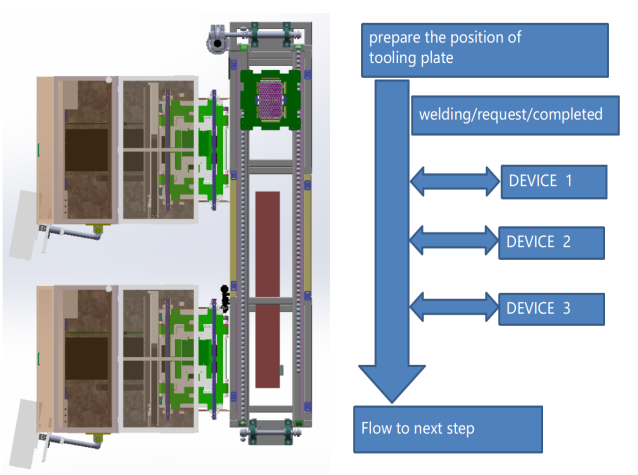

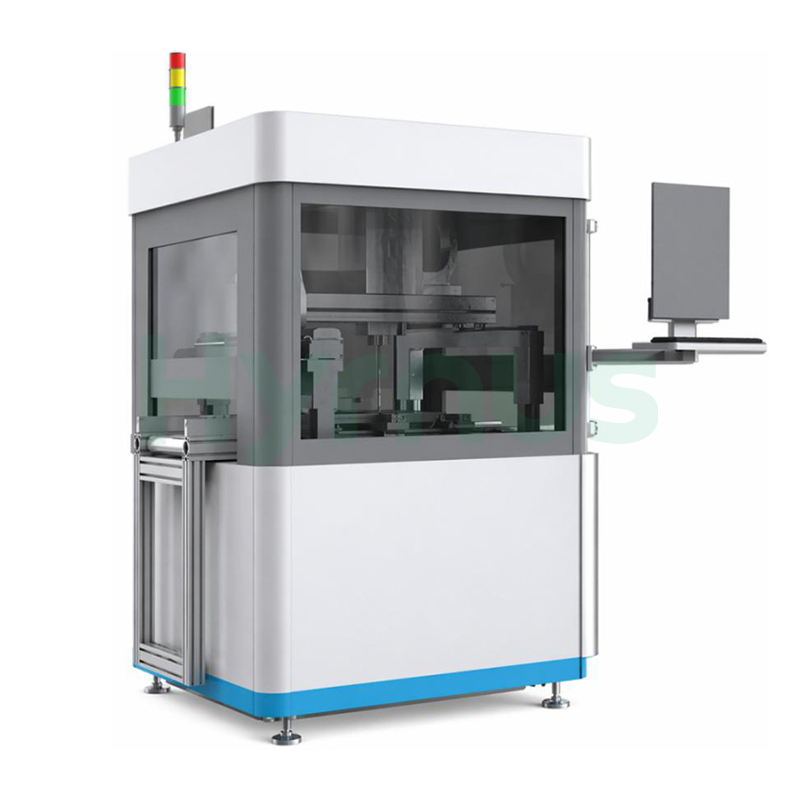

HY-BW830 Heavy Wire Bonder features an automatic feeding and transfer mechanism that moves modules to the welding area, where the bonding head performs ultrasonic welding according to set parameters and positions. It offers a welding area of 400 mm (X) × 800 mm (Y) effective stroke, Z-axis travel of 60 mm with 1.25 μm resolution, and rotary axis of ±220° with 0.08° resolution. The thick wire welding head is rotatable with a standard front cutter, utilizing a 60 kHz transducer (other frequencies available upon request) and providing welding pressure of 50–1500 g. The wire feeding system is motor-controlled with optical encoder, supporting maximum arc height of 40 mm, minimum wire length detection of 2 mm, and spool sizes of 50–120 mm outer diameter, 22–45 mm width, and 10–11 mm inner diameter. Equipped with an XK image recognition system and a 17-inch color flat display, the machine operates on 220V AC, 50/60 Hz with power consumption of 3000 W, requires compressed air of 0.5 MPa, and measures 1300 × 1300 × 1650 mm with a net weight of 500 kg.

Specifications

Parameter	Specification
Welding Area	400 mm (X direction) × 800 mm (Y direction) effective stroke (standard)
Z-Axis	Max travel: 60 mm, resolution: 1.25 μm
Rotary Axis	±220°, resolution: 0.08°
Power Requirements	220V AC, 50/60 Hz
Power Consumption	3000 W
Compressed Air	0.5 pls
Display	17-inch color flat display
Working Face Height	1150 mm from ground
Floor Size (L×W×H)	1300 mm × 1300 mm × 1650 mm (without warning light)
Net Weight	500 kg
Thick Wire Welding Head	Rotatable type, standard front cutter
Transducer	Standard 60 kHz; other frequencies available upon customer request
Welding Pressure	50 – 1500 g
Wire Feeding System	Motor-controlled wire feeder with optical encoder
Leakage Line Detection	Line detection
Maximum Arc Height	40 mm
Minimum Wire Length Detection	2 mm wire feed
Spool Size	Outer diameter: 50–120 mm; Width: 22–45 mm; Inner diameter: 10–11 mm
Image Recognition / Optics / Lighting
Vision System	XK Image Recognition System
