HY-EB03H 2.5L tabletop ICP treatment unit is compact lab plasma surface treatment equipment with 13.56MHz RF power and dual gas channels. It generates high-density ICP plasma for cleaning, activating, etching and bonding materials, and is widely used for PDMS microfluidics, photoresist ashing and semiconductor lab research.
Brand :
HYRNUSItem No. :
HY-EB03HOrder(MOQ) :
1 SetWarranty :
One-Year Warranty and Lifetime MaintenancePayment :
T/TLead Time :
7-35 DaysProduct Origin :
China2.5L Quartz Chamber Tabletop ICP Vacuum Plasma Cleaner for Laboratory Research
Product Introduction

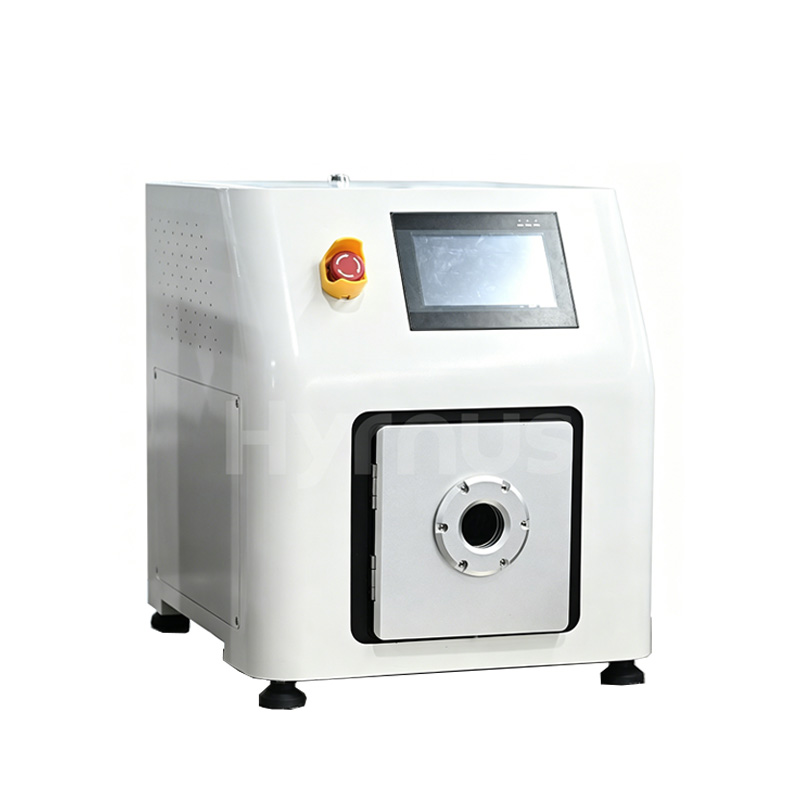

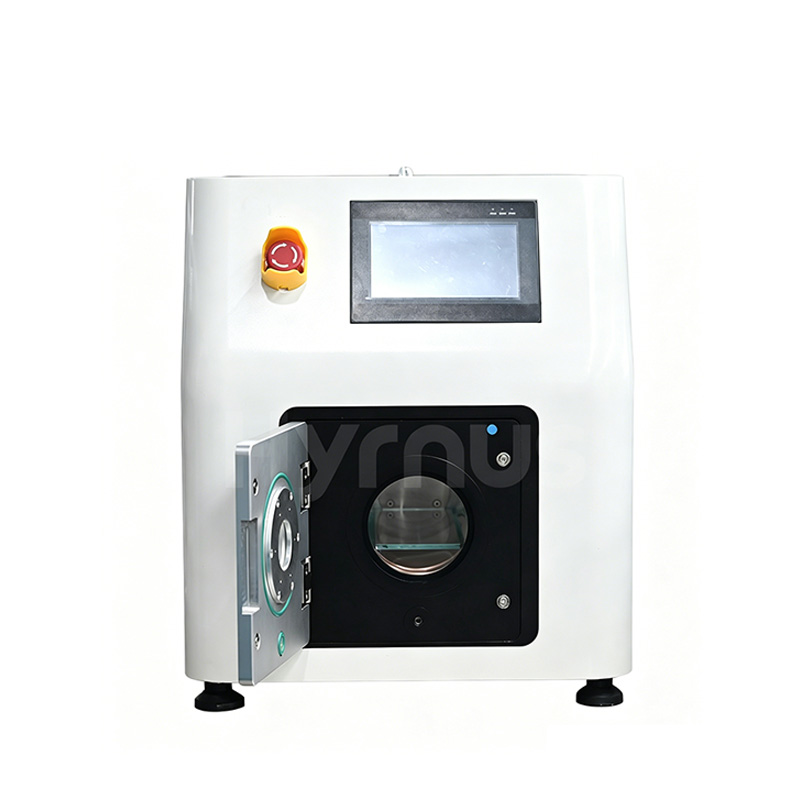

HY-EB03H 2.5L Quartz Chamber Tabletop ICP Vacuum Plasma Cleaner is a compact plasma surface treatment system tailored for university research labs, enterprise R&D centers and small-scale pilot production. Equipped with a cylindrical quartz glass processing chamber, the complete system consists of an RF plasma generator, vacuum pump and dual independent gas inlet & outlet ports. Adopting ICP inductively coupled plasma technology, it can stably produce uniform high-density plasma.
This equipment effectively improves substrate surface adhesion and optimizes surface hydrophilicity, and is extensively applied to PDMS microfluidic chip bonding, material coating, thin film deposition, photoresist stripping and a full range of material surface modification processes.
Product Application
1. Cleaning: Removal of organics, oxides, metal salts, nano-scale particulate contaminants, etc.
2. Activation: Hydrophilic/hydrophobic modification, surface energy improvement, functional group introduction, biocompatibility optimization, etc.
3. Etching: Surface patterning, micro-etching, adjustment of surface morphology and roughness, etc.
4. Bonding: Bonding of PDMS and other microfluidic devices
5. Photoresist Stripping: Photoresist ashing and bottom layer stripping
Product Features
1. The vacuum chamber is made of quartz glass, easy to clean and free of contamination to test samples.
2. Equipped with a 13.56MHz solid-state RF plasma generator with automatic impedance matching tuning, delivering excellent stability and repeatability.
3. The operation panel adopts a 30° inclined ergonomic design for easy operation and user-friendly interface.
4. Two independent gas channels fitted with mass flow controllers allow precise setting and regulation of gas flow rates, facilitating research on how different gas ratios affect treatment results.
5. ICP inductively coupled plasma generation technology generates high-density plasma.

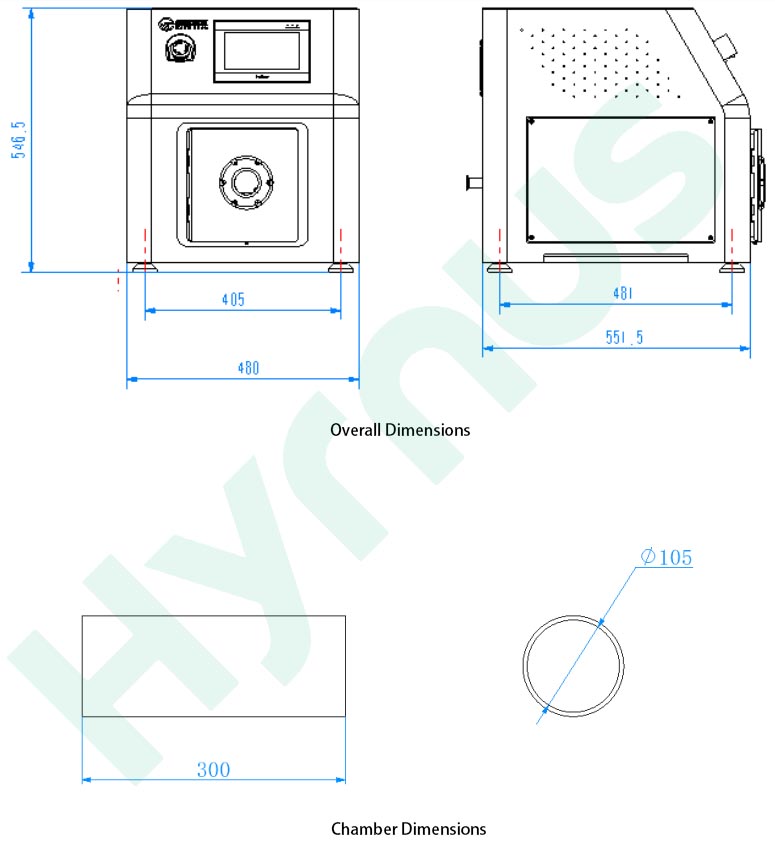

Machine Outline Drawing and Vacuum Chamber Diagram
Technical Specifications
| No. | Item | Spec. | Parameter |
| 1 | Plasma Generator | Solid-state Power Output | 0–15W continuously adjustable, standard sine wave output, stability ≤±0.5%; with overvoltage, overcurrent, overtemperature and reflected power protection |
| Operating Frequency | 13.56 MHz solid-state RF power supply | ||
| Impedance Matching | High-speed automatic matching within 0.1s, supports network communication | ||
| 2 | Vacuum Reaction Chamber | Chamber Material | Heat-resistant quartz glass |
| Chamber Volume | 2.5L | ||
| Sample Tray | Parallel glass tray | ||
| Cylindrical Chamber Dimension | Φ105×300 (D) mm | ||
| 3 | Gas Path Control | Mass Flow Controller | 300 SCCM |
| Gas Channels | 2 independent gas lines, compatible with O₂, Ar, N₂, H₂, etc. | ||
| Please inform us in advance if corrosive gas is required | |||
| 4 | Vacuum Measurement | Vacuum Measuring System | Measuring range: 5×10⁻² ~ 1.0×10⁵ Pa |
| Measurement accuracy: 1 Pa | |||
| 5 | Pumping System | Vacuum Pump | 8 m³/H |
| 6 | Control System | Touch Screen | 7-inch |
| Real-time Monitoring Items | Output power, vacuum level, gas flow, processing time, etc. | ||
| Control Mode | PLC control | ||
| Control Software | Self-developed patented plasma control system with 3-level access authority; auto & manual mode, recipe parameter setting, saving & recalling, alarm history query, IO signal monitoring | ||
| Alarm Protection Functions | Vacuum protection alarm, glow discharge protection alarm, power protection alarm | ||
| Pressure Balancing Function | Supports process gas inlet for pressure equalization, balance duration adjustable | ||
| 7 | Site Operation Conditions | Power Supply | 220V±10% 50/60Hz 9A |
| Gas Pipe Fitting | 6mm diameter port | ||
| Required Gas Purity | 99.99% | ||
| Inlet Gas Pressure | 0.4–0.6 MPa | ||
| Exhaust Port | KF25 flange interface | ||
| 8 | Overall Machine Parameters | Total Machine Power | ≤ 2 kW |
| Overall Outer Dimensions | 551.5mm(L) × 480mm(W) × 546.5mm(H) |
Operating Environment (Items to be Prepared by Customer)
| No. | Item | Requirements |
| 1 | Power Supply & Power Rating | Input grid: 220V, 50/60Hz, allowable grid fluctuation ±10%; power ground wire shall meet international standards. No strong electromagnetic interference around the equipment installation area. |
| 2 | Installation Environment | Ambient temperature: 0–40°C; Relative humidity: 15%–60% |
| 3 | Gas Source Preparation | Gas cylinders for O₂, Ar, N₂, H₂, etc. (must be equipped with pressure reducing valves). Inlet gas pressure ＞0.3 MPa; gas pipe port diameter: Φ6mm |
| 4 | Exhaust Duct | Connect to the exhaust port of vacuum pump (mandatory for cleanroom use) |
