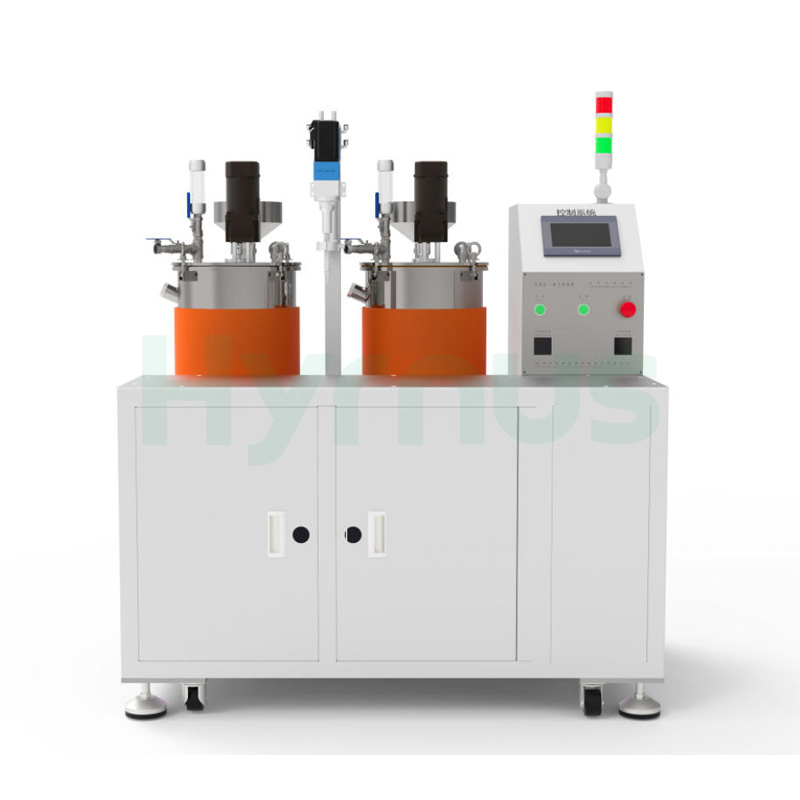

This HY-AP8700 Manual Glue Dispenser is designed for accurate metering, mixing and dispensing of various A/B adhesives. With PLC-controlled metering motors, vacuum loading, degassing, heating, stirring and automatic cleaning functions, it provides stable and cost-effective dispensing performance for PCB, electronic components, lighting, automotive accessories and other industries.
Brand :
HYRNUSItem No. :
HY-AP8700Order(MOQ) :
1 SetWarranty :
One-Year Warranty and Lifetime MaintenancePayment :
T/TLead Time :
7-35 DaysProduct Origin :
ChinaEpoxy Mixing and Dispensing Machine Manual Glue Dispenser for PCB
Product Overview
This HY-AP8700 Manual Glue Dispenser is suitable for dispensing various A/B adhesives in PCB manufacturing, electronic components, lighting products, small home appliances, automotive accessories, vacuum cleaners, filters and other applications.
The machine uses PLC control to accurately drive the metering motors, ensuring precise adhesive ratio control, automatic mixing and stable dispensing. It supports vacuum loading, vacuum degassing, heating, stirring and automatic cleaning, making it suitable for complex adhesive processing requirements. With a compact structure, stable operating system and user-friendly interface, it offers reliable performance and high cost-effectiveness for production use.
Product Features
| No | Feature | Description |
| 1 | Metering & Mixing Control | PLC precisely controls metering motors for accurate ratio mixing, automatic mixing, and automatic dispensing of two-component adhesives |
| 2 | Process Capabilities | Vacuum loading, vacuum degassing, heating, stirring, and automatic cleaning to suit complex adhesive environments |
| 3 | Design & Usability | Unique industrial design, sleek appearance, compact structure, stable OS, user-friendly interface, high cost-effectiveness |
Applications
*PCB (printed circuit board) industry
*Electronic components industry
*Electric light source industry
*Small home appliance industry
*Igniter industry
*Automotive accessories industry
*Filter industry, and many others.
Equipments Parameter
| No | Category | Parameter |
| 1. | Model | HY-AP8700 |
| 2. | Mixing Ratio (by weight) | — |
| 3. | Ratio Control System | Metering pump + motor |
| 4. | Ratio Accuracy | ±3% (based on 10g) |
| 5. | Operation Mode | Start switch |
| 6. | Dispensing Accuracy | ±3% (based on 10g) |
| 7. | Flow Control Method | Digital input |
| 8. | Dispensing Speed | 1.5–3.5 |
| 9. | Automation Control System | Motion controller + touch screen |
| 10. | Loading Method | Vacuum automatic suction / manual pouring |
| 11. | Interface Display System | Visual keypad type; program can be written according to requirements |
| 12. | Cleaning Method | Semi-automatic cleaning |
| 13. | Mixing Method | Dynamic mixing |
| 14. | Anti-curing Time | 0–10000 sec |
| 15. | Applicable Viscosity | 100–30000 CPS |
| 16. | Air Supply | 0.5–0.7 MPa |
| 17. | Power Supply | AC220V, 50 Hz |
| 18. | Machine Dimensions (L×W×H) | 1300 × 900 × 2000 mm |
Working Process
| No | Discription |
| 1 | Two-component (A/B) adhesives are stored in separate tanks. Each tank supports manual or vacuum loading, and provides functions such as stirring, heating, and degassing. |
| 2 | The processed single-component adhesives flow through discharge pipes into the A/B metering pumps respectively. Under software control, the adhesives are delivered at a set ratio and flow rate through supply pipes to the mixing valve outlet. The system connects to a dispensing valve for manual potting. |
| 3 | The dynamic mixing valve thoroughly mixes Component A and Component B into a uniform blended adhesive to achieve curing. Dispensing time is set via program parameters, making the operation simple and convenient. |
| 4 | Since mixing occurs only inside the mixing tube, the semi-automatic cleaning device cleans only the valve and the mixing tube section. |
