HY-TH860 Semiconductor Handler is a turret-style integrated test system designed for semiconductor final test (FT) applications, specifically supporting TO-220, TO-247, TO-252, TO-263, and TO-3P package types.
Brand :
HYRNUSItem No. :
HY-TH860Order(MOQ) :
1 SetWarranty :
One-Year Warranty and Lifetime MaintenancePayment :
T/TLead Time :
7-35 DaysProduct Origin :
ChinaChip Sorter Machine With Turret-Style Integrated Test System for TO Package
Product Introduction

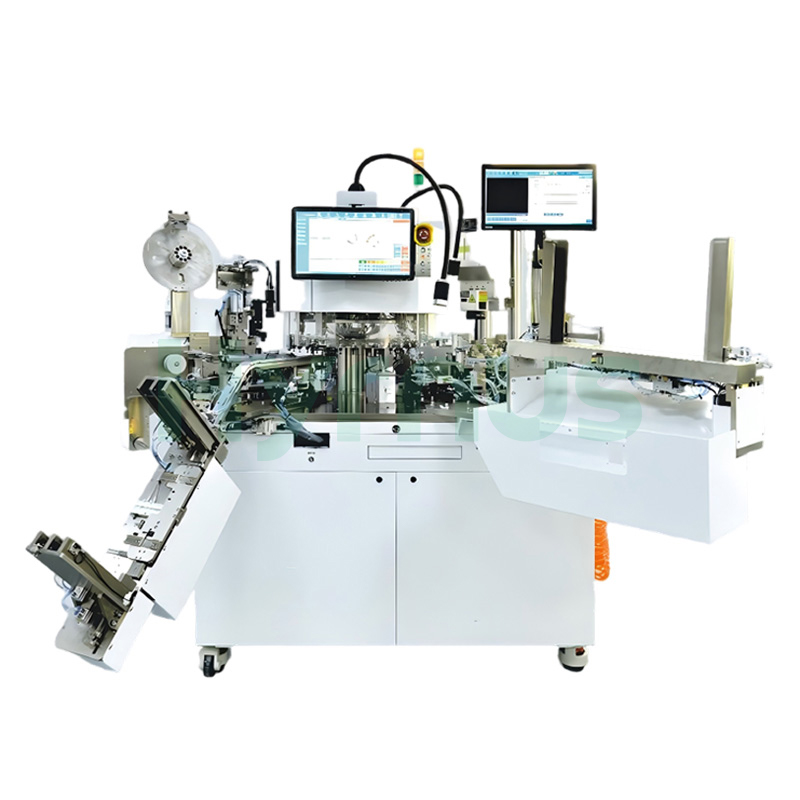

HY-TH860 Turret Sorter delivers a throughput of 12,000 to 25,000 UPH with high precision, high efficiency, and high stability, significantly increasing production capacity while enabling precise quality control. The system features a tube feeder feeding method, 4 test stations with TTL interface, and supports 24 or 36 nozzles with a main turret driven by a high-speed linear motor. It achieves MTBA of ≥60 minutes and MTBF of ≥168 hours, ensuring reliable long-term operation. The system integrates multiple modules including tube loading, testing (4–8 stations with Kelvin contact method), 20W fiber laser marking with 2D mark inspection, 3D five-sided (3D5S) inspection for lead/pin defects and surface flaws, 10 reject sorting tubes, and 1–4 automatic tube output lanes with up to 25 empty tube capacity. The HY-TH860 measures 1000 × 1100 × 1600 mm and weighs 900 kg, operating on either 3-phase 380V or single-phase 220V with power consumption of 3000 W and requiring compressed air of 5 kgf/cm². It is widely applied in IC packaging and testing, discrete device manufacturing, and related fields.
Feature
High stability
High precision
High efficiency
Help significantly increase production capacity and enable precise quality control
Technical Specifications
| Parameter | Specification |
| UPH | 12000-25000PCS |
| Feeding Method | Tube feeder |
| Test Stations & Interface | 4 test stations, TTL interface |
| Number of Nozzles | 24 / 36PCS |
| MTBA | ≥ 60 min |
| MTBF | ≥ 168 hr |
| Dimensions (L×W×H) | 1000 × 1100 × 1600 mm |
| Weight | 900 kg |
| Compressed Air | 5 kgf/cm² |
| Power Supply | 3-phase 380V or single-phase 220V |
| Power | 3000 W |
Process
Module
Tube Output Module

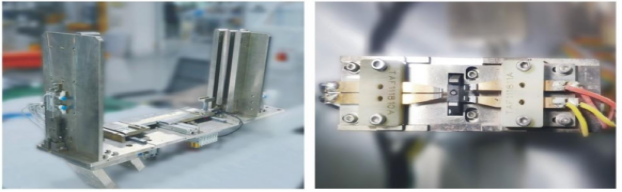

TO-252 Test Module
