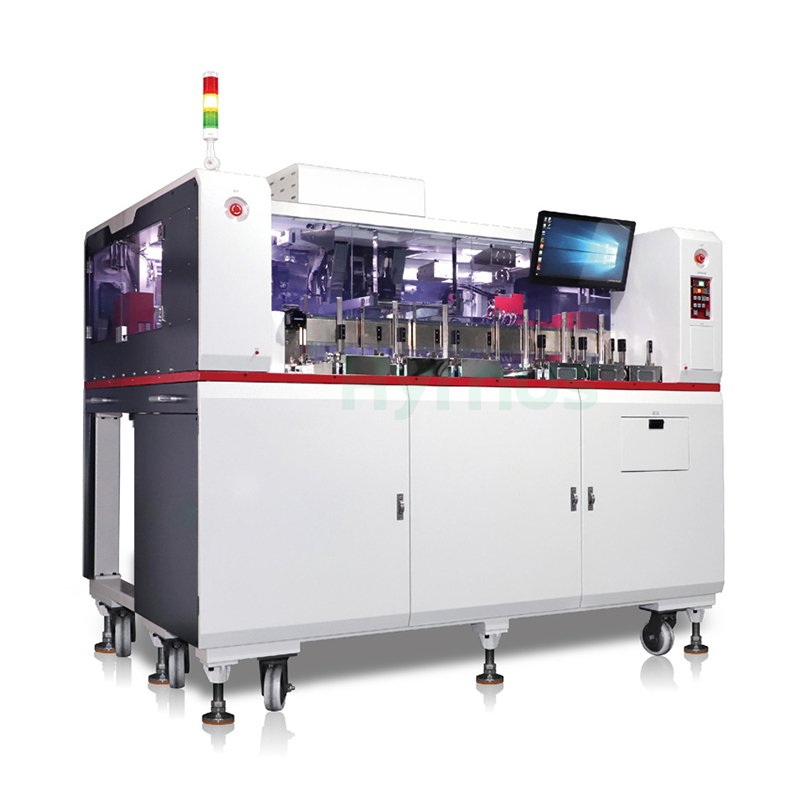

HY-PS308 Pick-and-Place Test Handler is designed for automated testing and sorting of MSOP, QFN, DFN, LQFP, LGA, BGA, CSP and other semiconductor packages ranging from 2 × 2 to 110 × 110 mm.
Brand :
HYRNUSItem No. :
HY-PS308Order(MOQ) :
1 SetWarranty :
One-Year Warranty and Lifetime MaintenancePayment :
T/TLead Time :
7-35 DaysProduct Origin :
ChinaSemiconductor Pick&Place Test Handler
Product Overview
HY-PS308 Pick&Place Test Handler is applicable for testing and sorting MSOP, QFN, DFN, LQFP, LGA, BGA, CSP and other products with specifications ranging from 2x2 to 110x110, meeting the requirements for both room temperature and high-temperature testing and sorting, while delivering high-quality product output for customers.
Product Advantage

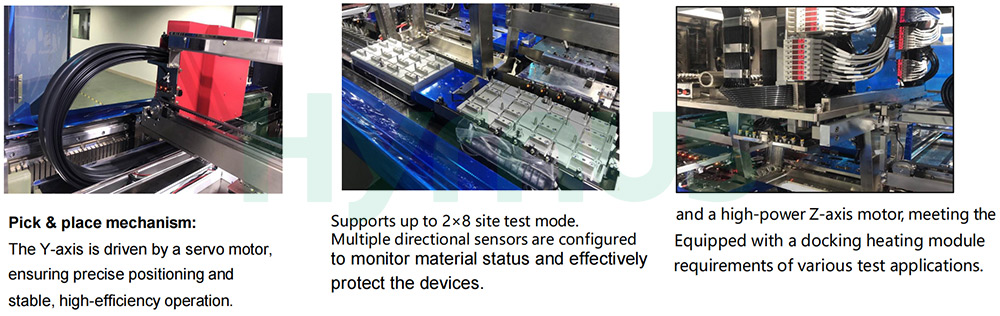

| No. | Advantage Description |
| 1 | Taking and discharging mechanical arm: Y-axis is double-sided drive mode; Z-axis motor independent control, equipped with 2×4 taking and discharging nozzle, X Pitch variable. The nozzle module adopts the span beam design, the center of gravity is stable, not easy to deform. |
| 2 | Pressure measuring module: equipped with precision floating head and socket stack sensor, automatic calculation of pressure measurement, up to support 240 kgf. |
| 3 | Shuttle module: XY two directions are equipped with sensors, accurately detect whether the shuttle car is stacked or not flat, protect materials; The unloading shuttle car has the function of return temperature heating. |
| 4 | Temperature control system: Test TJ: ±2℃; Preheating tray/Shuttle: ±3℃; TC: ±1℃; 200W@ -55℃/300W@ -40℃/850W @ 25℃/1150W@ 85~150℃ / 200℃(Optional). |
| 5 | Plate module: feed plate is equipped with motor screw, it is more convenient to adjust when using different thickness plate. |
| 6 | Front and rear configuration display touch screen and key panel, support to connect a variety of brand testing machines. |
Technical Parameter
| Item | Specification |
| Suitable components | MSOP、QFN、DFN、LQFP、LGA、BGA、CSPDimensions: 2×2-110×110mm |
| UPH | Max 13.5K (8-site, QFN4×4) |
| Test station | 16/12/8/4/2/single site |
| Compression test | Max 240kgf |
| Drive mode | Linear motor drive |
| Index time | 0.42S |
| loading&Unloading | Tray input + Tray output |
| Tray | 300mm×146mm |
| Stability | JAM RATE＜1/10000, MTBA>60min, MTTA<3min, MTBF>168H |
| Temperature range | 50℃ – 90℃ ±2℃ ; 90℃ – 150℃ ±3℃ ; Optional: up to 200℃ |
| Communication I/O | TTL / GPIB / RS232 / Ethernet |
| Dimensions | 213515452000(mm) |
| Power source | Room temperature: Single-phase 220V 50/60Hz 32A, power 7KW;High temperature: Single-phase 220V 50/60Hz 32A*2, power 11.5KW |
| Pressure | ≥0.5Mpa, 550L/min, 12-pin quick connector |
| Weight | 1560KG |
Product Details
HY-BT12 Blue Tape Taping Machine is a high-speed blue tape taping machine designed to precisely pick chips from blue tape wafers and load them into carrier tapes for IC and LED devices.
HY-TT2401 Handler is a high-performance integrated handler that combines electrical testing, optical inspection, and taping packaging into a single automated system, designed for semiconductor packaging and test applications.
HY-TT1801 Test Sorter is applied to taping of discrete devices, ICs, DFN components and rectifier bridges.
HY-CS3025 Semiconductor Handler is dedicated to visual defect inspection, electrical performance testing, and finished product packaging of chip tantalum capacitors and multi-layer aluminum capacitors.
HY-CS3021 Chip Sorter is designed for visual defect inspection, electrical performance testing, and finished product packaging of miniature active and passive components.
HY-CS900 Semiconductor Handler Automated Test and Sorting Equipment for Process Automation.
HY-CS800 Sorter is Fully Automated High-Precision Sorting Equipment for the Final Test (FT) Stage
HY-WS600 Chip Sorting Machine integrates wafer-level inspection, high-precision sorting, automated loading/unloading, and data traceability in a single system.
