HY-PT8500 Push-Pull Tester is a high-precision multi-function push-pull tester designed for large-size PCB testing, Mini LED panel testing, and large-size sample testing.
Brand :
HYRNUSItem No. :
HY-PT8500Order(MOQ) :
1 SetWarranty :
One-Year Warranty and Lifetime MaintenancePayment :
T/TLead Time :
7-35 DaysProduct Origin :
ChinaHigh Performance Multi-Function Push-Pull Tester for Wire Bonding
Product Introduction

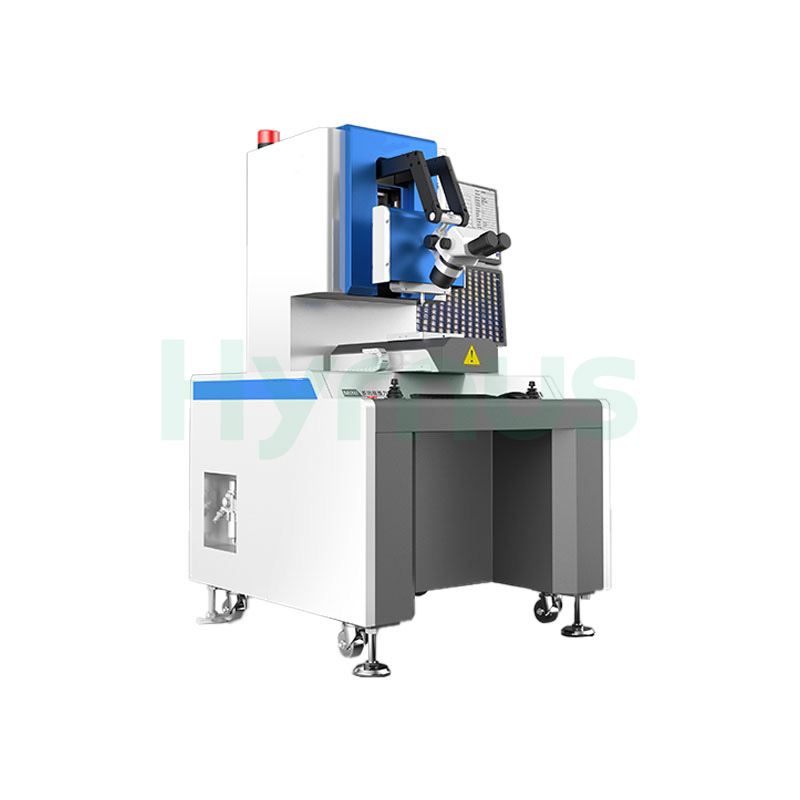

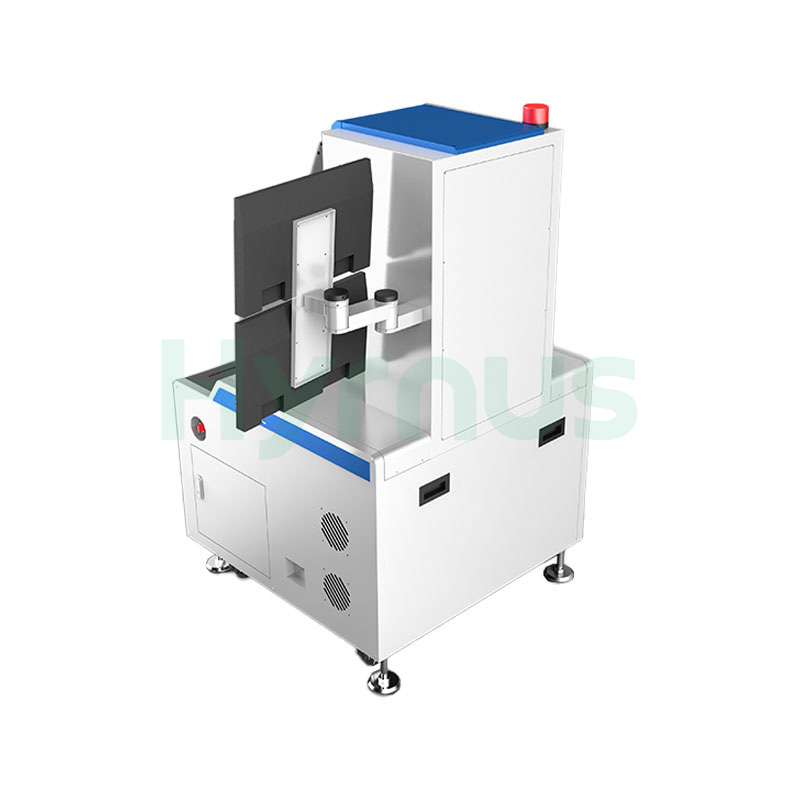

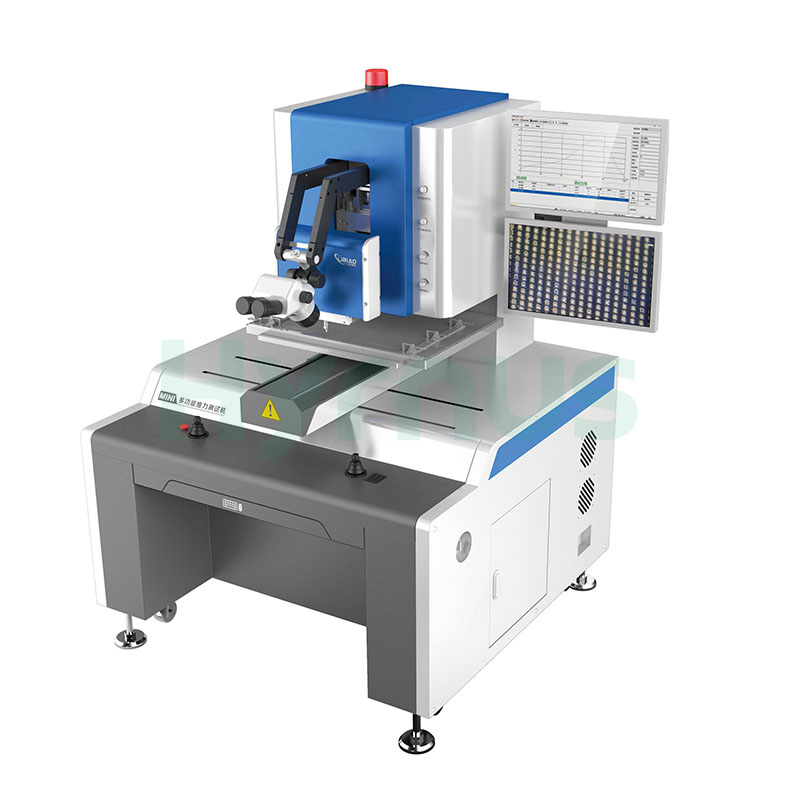

HY-PT8500 bond testing equipment features a 3-station automatic rotary switching system with independent sensor acquisition and anti-collision/over-force protection for each sensor, ensuring testing accuracy and equipment safety. The system offers XY axis ball screw effective stroke of 500mm × 300mm with repeatability of ±5μm, resolution ≤0.125μm, and precision of ±2μm within 2mm range, supporting maximum test force of 100KG; Z axis effective stroke of 100mm with resolution ≤0.125μm, repeat positioning precision of ±1μm within 2mm, supporting maximum test force of 20KG. Equipped with precision dynamic sensing technology (sensor accuracy ±0.003%, comprehensive test accuracy ±0.1%), imported transmission components, Hall dual joysticks for four-direction control, and a standard trinocular continuous zoom microscope with high-definition CCD camera, the system operates on 110V/220V @ 5.0A, 50/60Hz with air supply of 4.5–6 Bar. The instrument measures 1500 × 1200 × 1650 mm, weighs approximately 800 kg, and includes a Lenovo/HP PC with genuine Windows 10/11, offering MES system compatibility, real-time data management, and customizable fixtures based on samples or drawings.
Large-size PCB Testing
Mini LED Panel Testing
Large-size Sample Testing
| Core Benefits | Description |
| Automatic Test Station | Adopts automatic test station mode. After selecting the test station in the software, the system automatically moves to the corresponding working position. |
| Independent Sensor Acquisition | Three working sensors are equipped with independent acquisition systems to ensure testing accuracy. |
| Anti-Collision & Over-Force Protection | Each sensor is equipped with an independent anti-collision and over-force protection system. |
| Safety Limit & Speed Control | Each test station features independent safety limit and speed limiting functions. |
| User-Friendly Interface | Humanized operation interface for easy operation. |
| High Precision & Force Algorithm | High-precision sensing system combined with unique mechanical algorithms ensures testing accuracy. |
Adopts precision dynamic sensing acquisition technology to ensure accurate and reliable test data.
Equipped with imported transmission components to ensure stable machine operation and testing accuracy.
Three-station automatic rotary switching avoids equipment damage caused by human misoperation.
Hall dual joysticks for four-direction control, making operation simple and convenient.
Perfectly compatible with the factory MES system.
Test data can be saved and exported in real time, convenient and efficient.
Equipment Specifications
| Parameters | Specification |
| Equipment Model | HY-PT8500 |
| Overall Dimensions | 1500mm × 1200mm × 1650mm |
| Net Weight | Approx. 800KG |
| Power Supply | 110V/220V @ 5.0A, 50/60Hz |
| Air Pressure Supply | 4.5-6 Bar |
| Control Computer | Original Lenovo/HP PC |
| Operating System | Genuine Windows 10 / Windows 11 |
| Microscope | Standard Trinocular Continuous Zoom Microscope + High-Definition CCD Camera |
| Sensor Replacement Method | Manual Replacement (Select the corresponding test module according to test requirements; the software automatically identifies the module range) |
| Platform Fixture | 360° rotation, compatible with all kinds of test fixtures |
| XY Axis Ball Screw Effective Stroke | 500mm × 300mm, Maximum Test Force: 100KG |
| XY Axis Maximum Moving Speed | Freely control the XY axis via Hall joystick, Maximum speed: 10mm/s |
| XY Axis Ball Screw Precision | Repeatability: ±5μm, Resolution: ≤0.125μm; Precision within 2mm: ±2μm |
| Z Axis Ball Screw Effective Stroke | 100mm, Resolution: ≤0.125μm, Maximum Test Force: 20KG |
| Z Axis Maximum Moving Speed | Freely control the Z axis via Hall joystick, Maximum speed: 8mm/s |
| Z Axis Ball Screw Precision | ±2μm; Shearing Precision: Repeat positioning precision ±1μm within 2mm |
| Sensor Precision | ±0.003%; Comprehensive Test Precision: ±0.1% |
| Device Fixture | Customized fixtures designed according to samples or drawings (1 set supplied as standard) |
| Device Calibration | Equipped with corresponding calibration fixtures and weight sets as standard |
| Quality Assurance | 2-year full-machine warranty with free lifetime software upgrades (excluding man-made damage) |
Product Details
HY-PT8100 Bond Tester is a multi-function manual push-pull force tester designed for comprehensive mechanical testing in semiconductor and electronic packaging applications.
HY-PT800 Bond Tester is a carrier tape adhesion force tester designed for real-time monitoring of tape loading processes, featuring a high-precision dynamic sensing system with testing accuracy of ±0.25% and a sensor range of 0–500g (customizable with other ranges upon request).
HY-WE2002M Manual Wafer Expander machine is designed for die expansion processes in LED, transistor, integrated circuit, and other semiconductor device production. It integrates heating, film stretching, wafer expansion, and film fixing into one process, with adjustable temperature, expansion time, and return speed for stable and efficient operation.
HY-WE1130 Semi-automatic Wafer Expander is designed for 6-inch dicing tape processing. It uses electric heating to soften the tape and achieve uniform, flat wafer expansion. Manual loading, automatic waste film cutting and collection, safety light curtain protection, and dual-button operation ensure efficient and safe production.
HY-PT6000 Wire Bond Pull Tester is designed for dynamic mechanical testing in semiconductor packaging, LED, SMT, BGA, automotive electronics, and sensor manufacturing. It supports pull, shear, and pull-out testing of bonding wires, solder balls, chips, ribbons, and pins, providing reliable evaluation of bonding strength and process quality.
HY-HW3018 Ultrasonic Heavy Wire Bonder is used for internal lead bonding of medium- and high-power transistors, MOSFETs, various power modules, high-current fast recovery diodes, Schottky diodes, thyristors, IGBTs, and other special semiconductor power devices.
HY-GB2012 Gold Ball Wire Bonder is mainly used for internal lead bonding of high-power LEDs, laser diodes, small and medium power diodes, transistors, integrated circuits, sensors, and special semiconductor devices. It is especially suitable for wire bonding of high-power LED devices.
HY-WB2000 ultrasonic wire bonder uses fine aluminum wire, pressure, and ultrasonic energy to create reliable electrical connections between chips and substrates. It is suitable for microwave devices, RF modules, hybrid circuits, MEMS, optoelectronic devices, sensors, semiconductor devices, radar devices, COB/SOB packaging, and other microelectronic applications.
