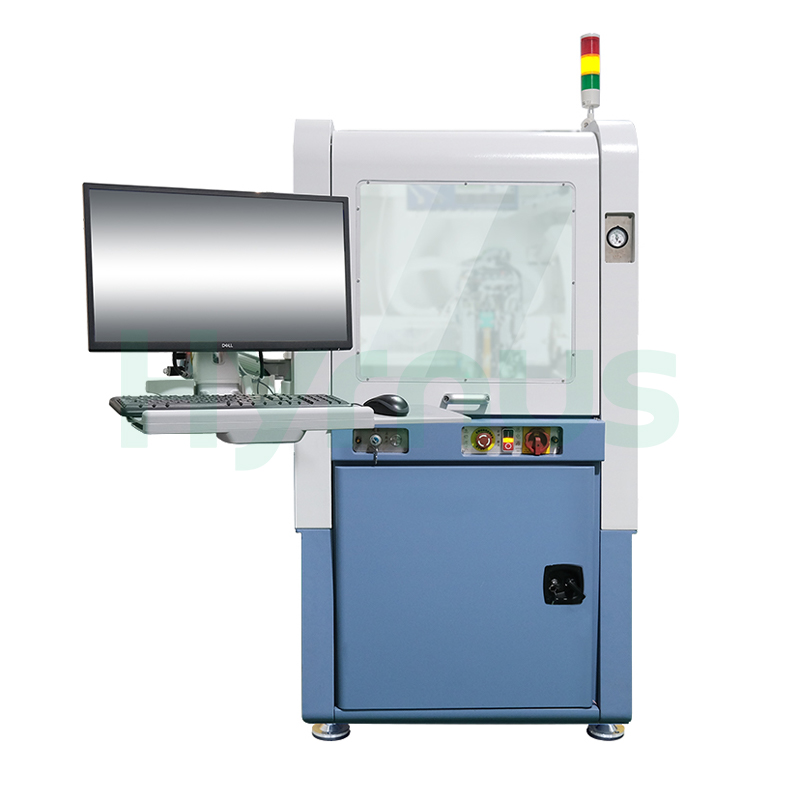

High Precision Automatic Glue Dispenser Pneumatic Dispensing Machine

Product Introduction

The HY-DM300 Pneumatic Dispensing Machine is designed for multi-chip dispensing processes in electronic component packaging. It adopts a gantry dual-drive platform to ensure stable and accurate dispensing, and is equipped with high-precision vision positioning for reliable product alignment. The system supports conveyor line operation with a maximum carrier width of 150 mm and meets information management requirements through the standard SECS-GEM protocol. With a Musashi pneumatic dispensing valve, contact-type in-line height measurement accuracy up to ±2 μm, fast product changeover, and flexible dispensing pattern settings, it is suitable for hybrid circuits, COB, MCM, MEMS, RF and optoelectronic modules.

Equipment Performance

No.	Feature
1	Gantry dual-drive platform to ensure dispensing accuracy and stability
2	Suitable for various dispensing process requirements, fast product changeover
3	High-precision vision positioning function
4	Meets information management requirements, supports standard SECS-GEM protocol
5	Conveyor line operation, maximum compatible carrier width 150 mm
6	Single-valve configuration, Musashi pneumatic valve
7	Integrated in-line height measurement with contact-type height sensor, height measurement accuracy up to ±2 μm
8	Optional vacuum pump and air compressor
9	Multiple common pre-pattern dispensing patterns, supports custom dispensing patterns



Technical Specifications

No.	Parameter	Specification
1.	Positioning Accuracy	±1 μm
2.	Minimum Dispensing Needle Diameter	Ø0.25 mm
3.	Track Height	900 ± 20 mm
4.	Dispensing Method	Pneumatic suction / Piezo valve / Screw valve
5.	Vision Recognition System	5 megapixels, supports multiple recognition algorithms
6.	Depth Control Range	Max. 16 mm
7.	Height Measurement Accuracy	±5 μm/±2um
8.	Height Measurement Method	Contact or non-contact
9.	Maximum Carrier Size	210 mm × 150 mm
10.	Dispensing Pattern	Multiple common preset patterns, supports custom dispensing patterns
11.	Light Source	Coaxial light, ring light
12.	Operating System	Windows 10
13.	Compressed Air Requirement	0.4-0.6 MPa, flow rate >150 L/min
14.	Vacuum Line Pressure	≤ -85 kPa
15.	Ambient Humidity	<60% relative humidity
16.	Equipment Net Weight	1.3 t
17.	Input Voltage	AC 220V ± 10%
18.	Rated Power	1 kW
19.	Rated Frequency	50/60 Hz
20.	Footprint (W×D×H)	970 mm × 1570 mm × 2040 mm
