HY-OE3200 Die Bonding machine is designed for eutectic bonding of power devices, LEDs, optical communication components such as LD, PD/TIA, etc., supporting a wide range of chip/device formats with fully automatic placement.
Brand :
HYRNUSItem No. :
HY-OE3200Order(MOQ) :
1 SetWarranty :
One-Year Warranty and Lifetime MaintenancePayment :
T/TLead Time :
7-35 DaysProduct Origin :
ChinaHigh-Speed Eutectic Bonder for Optical Communication
Product Introduction
HY-OE3200 Eutectic Bonder is designed for eutectic bonding of power devices, LEDs, optical communication components such as LD, PD/TIA, etc., supporting a wide range of chip/device formats with fully automatic placement.In the fields of optical communication, power devices, and LED packaging, placement accuracy and production efficiency directly determine device performance and manufacturing costs.
Key Technical Features

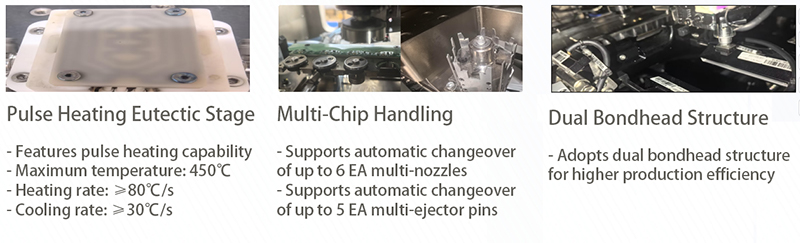

Featuring the industry-exclusive dual gantry structure, it delivers superior placement efficiency. With a maximum temperature of up to 450℃ and a hermetically sealed track design that provides a protective gas atmosphere, it ensures outstanding eutectic bonding results.
Application Scenarios
High-precision eutectic bonding for power devices, LEDs, and optical communication components such as COC/COS, LD, TIA, PD, etc.
Technical Specifications
| Item | Specification |
| Name | High-Speed Eutectic Bonder for Optical Communication |
| Model | HY-OE3200 |
| Placement Accuracy | X/Y Placement Accuracy: ±1.5 μm @ 3σ (calibration die) |
| CPH (±1.5 μm) | 500 (standard die, heating time = 7 s) |
| Die Size | 0.2–3 mm |
| Substrate Type | Single substrate, size 0.5–20 mm |
| Bond Force | 10–1000 gf |
| Supported Die Feeding Methods | Waffle pack, Gel pak, Wafer Expander Ring, Tray |

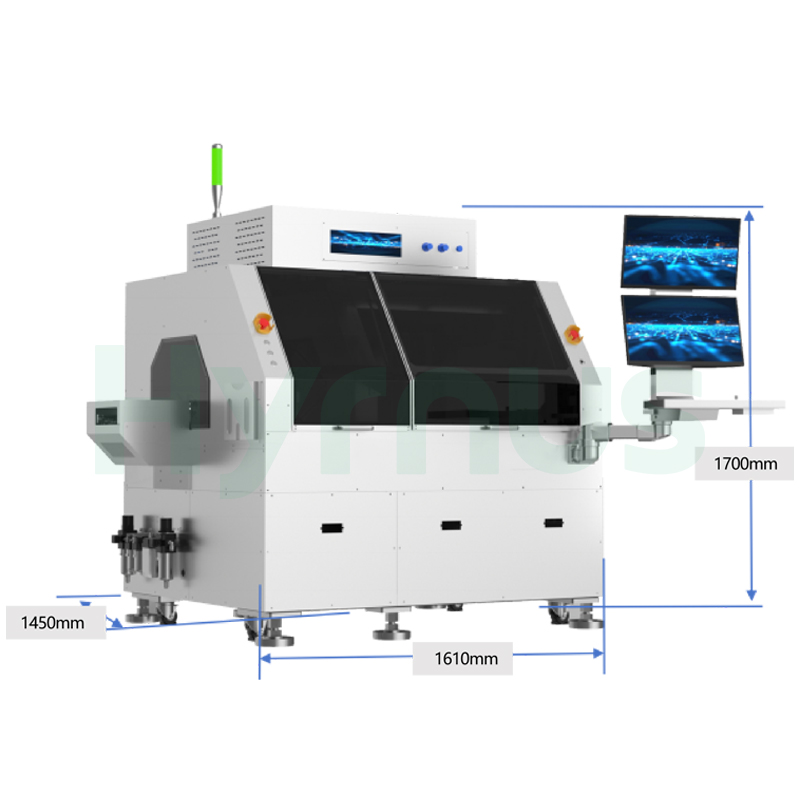

| Equipment Dimensions | 2200 × 1450 × 1750 mm (including loading/unloading module) |
| Equipment Weight | 2300 kg |
| Operating Environment | 23 ± 3°C / 40%–60% RH |
Product Details
HY-ED022 Die Bonder is developed for Optical Communication and Optical Device Packaging applications.
HY-ED010 Die Bonding Machine is a Die bonding machine developed for Automotive LED and Optoelectronic Semiconductor Packaging applications.
HY-ED007 Die Attach Machine is a High-Precision Die attach machine developed for Optical Communication, Optical Modules, Multi-Chip Modules (MCM), 3D Packaging, and Optoelectronic Device applications.
HY-ED003 Die Attach Equipment is a High-Precision Eutectic Bonder developed for Optical Communication, Optical Modules, Multi-Chip Modules (MCM), 3D Packaging, and Optoelectronic Device applications.
HY-DB504 Die Bonder is a Fully Automatic Die Bonder developed for Ultra-High-Precision Optoelectronic and Semiconductor Packaging applications.
HY-DB503 Die Bonder is a High-Speed Fully Automatic Die Bonder developed for Optoelectronic and Semiconductor Packaging applications.
HY-DB501 Die Bonder is a fully automatic die bonder developed for ultra-high-precision optoelectronic and semiconductor packaging applications.It delivers precision-driven die attachment for optoelectronic packaging, targeting TO‑series devices, photodiodes, lasers, optocouplers, and miniLEDs with placement accuracy of ±5 μm and angular control within ±1°.
HY-DB500 Die Bonder is a high-end, fully automatic die bonder engineered for optoelectronic devices and high-precision semiconductor packaging. Built with exceptional stability, intelligent control, and a modular architecture, it is ideally suited for high-volume production of TO-series devices, photodiodes, lasers, optocouplers, miniLEDs, and consumer optoelectronic components.
