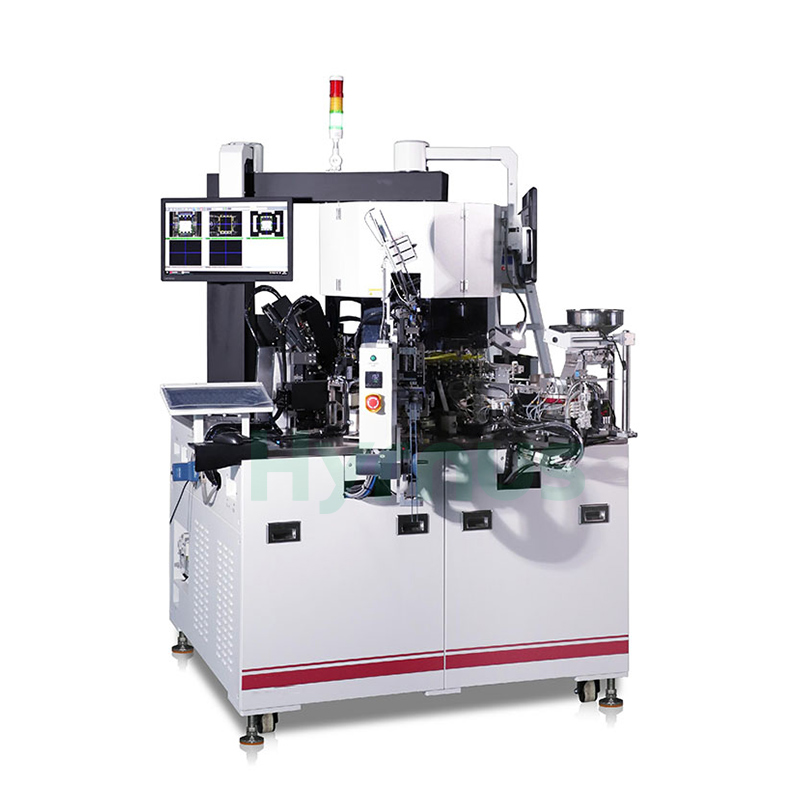

HY-TS936L Turret Test Handler is utilized for the testing, visual inspection, and taping of light-sensitive series components.
Brand :
HYRNUSItem No. :
HY-TS936LOrder(MOQ) :
1 SetWarranty :
One-Year Warranty and Lifetime MaintenancePayment :
T/TLead Time :
7-35 DaysProduct Origin :
ChinaSemiconductor Light-sensitive Series Components Turret Test Handler
Product Overview
HY-TS936L Turret Test Handler is utilized for the testing, visual inspection, and taping of light-sensitive series components.It employs high-precision direct drive rotary (DDR) technology to ensure consistent performance and high units per hour (UPH) output. The machine integrates three types of tests—light source, air void, and gray card—thereby delivering high-quality product output to customers.
Product Advantage
| No. | Advantage Description |
| 1 | Supports simultaneous testing of up to 9 stations, enhancing the UPH of the machine for products with long testing times. |
| 2 | The suction nozzles have shielding and automatic height correction functions. |
| 3 | Automatic feeding (with a vibrating disc device): The vibrating disc feeds materials quickly and stably. |
| 4 | Main turntable: the main turret is equipped with 36 pickheads driven by independent motor, which can accurately send the product to the center of each station through the adsorption of the pickhead. |
| 5 | Alignment/rotation device: Precisely positions and rotates products, with a positioning error of 0.005mm and a directional accuracy of 0.1 degrees. |
| 6 | Marking disk mechanism: the marking disk can perform laser marking, dust collection, and marking visual inspection, significantly increasing the marking speed. |
| 7 | Taping component: besides simple automatic taping, it also has an automatic replenishment function. |
| 8 | Post-sealing image inspection function (optional). |
Technical Parameters
| Parameter | Specification |
| Suitable components | PV series component |
| UPH | Max 6K (test time less than 2s) |

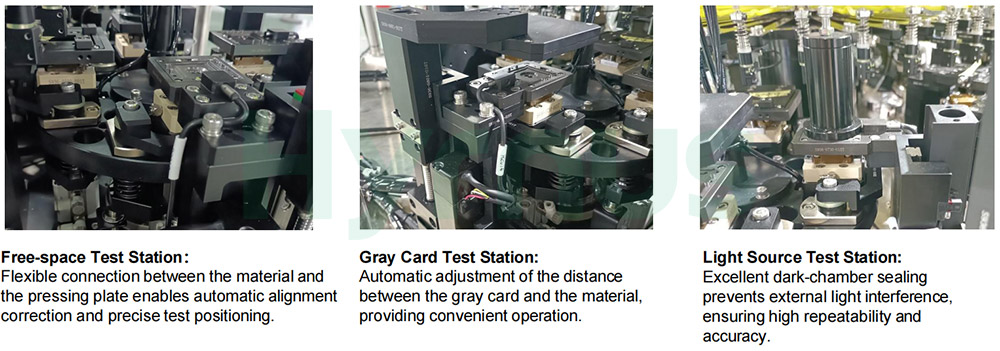

| Test station | Supports up to 9 test sites (including light-source test, gray-card test, and free-space test) |
| Contact type | Pogo pin |
| Classification | 4+4+1 |
| Loading | Bowl in / Tube in |
| Unloading | Tape out |
| Press-down mode | Servo motor+cam / Imported linear motor / Domestic linear motor |
| Force control accuracy | Force control can achieve ±10%(≥10N) / ±5%(2-10N, support adaptive calibration) |
| Stability | MTBA>60min, MTTA<3min, MTBF>168H |
| Pressure | 0.4-0.7MPa, vacuum >65KPa |
| Power source | AC220V 50/60Hz |
| Marking parameters | 10W laser maker:HYCW10Y-S minimum letter height: 0.3mm, line width: 0.045mm-0.06mm;HYCW10Y-H minimum letter height: 0.2mm, line width: 0.02mm-0.03mm |
| Image parameters | Camera and resolution: 1.6-megapixel CCD camera, resolution H1280*V1080 pixels;Accuracy: ≤0.013mm/pixel; cycle time: <35ms |
| Bus program | High precision, fast speed, open access to all servo parameter settings for easy equipment debugging and monitoring of various MTBA raw data records. Equipment operation logs, alarm codes, and information are permanently stored for data retrieval. |
| Dimensions | 1600*1600*1900(mm) |
| Work stations | 36 |
| Important components | Imported DDR |
Product Structure and Working Principle

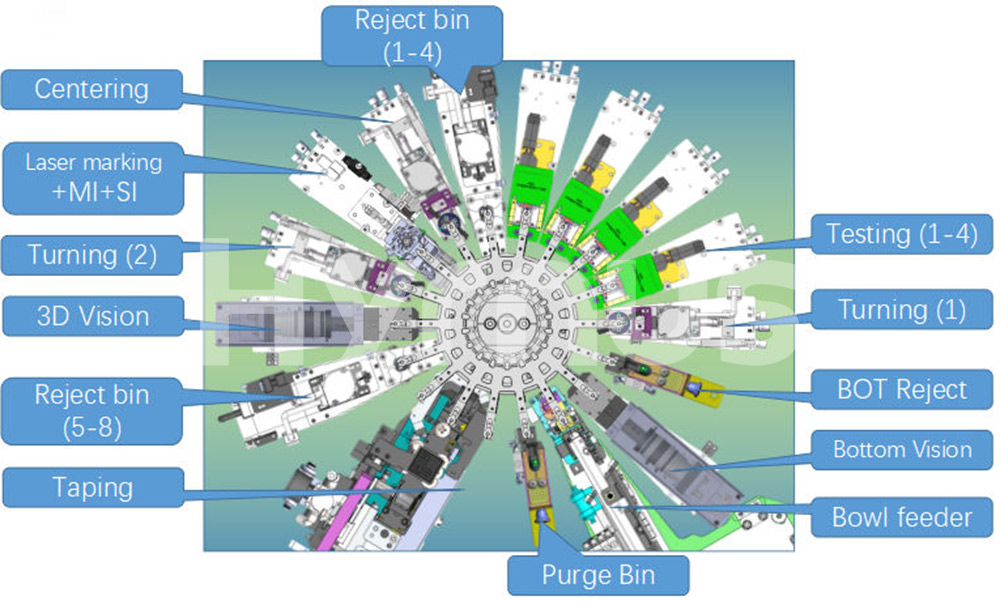

With a total of 18 to 24 module stations, any configuration can be changed according to market needs. HY automatic high-speed test sorting machine Features:
| No. | Item | Description |
| 1 | UPH up to 45K to 50K per hour | 1. Turret design is adopted |
| 2. Using Keens PLC + PC system | ||
| 3. Servo motor system is widely used | ||
| 4. Equipped with the industry's optical system | ||
| 2 | High Flexibility | 1. Supports various feeding systems |
| 2. Equipped with modular system for easy debugging and maintenance | ||
| 3. Equipped with dual displays to cover the whole machine 360 degrees for easy debugging and maintenance | ||
| 3 | Iconic multi-language user interface | Win7 operating system |
| 4 | Design | Standardized designs |
Workflow

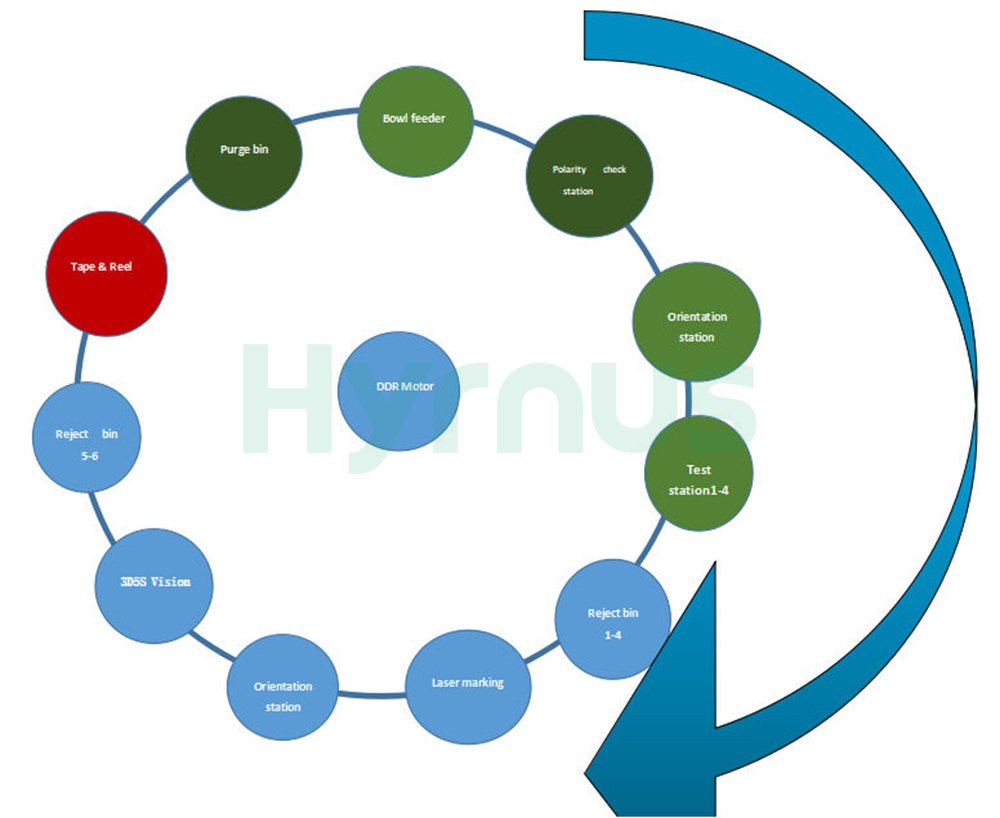

Working Principle Diagram: Components from the vibration plate feeding to the completion of the whole cycle of the process, machine working principle DDR motor for the rotation of the suction nozzle driven action 50ms a cycle, PLC control servo motors, solenoid valves, cylinders, inductors to complete a series of workstations with the completion of the components associated with the action of detection. The following figure:
Powerful Software Functions

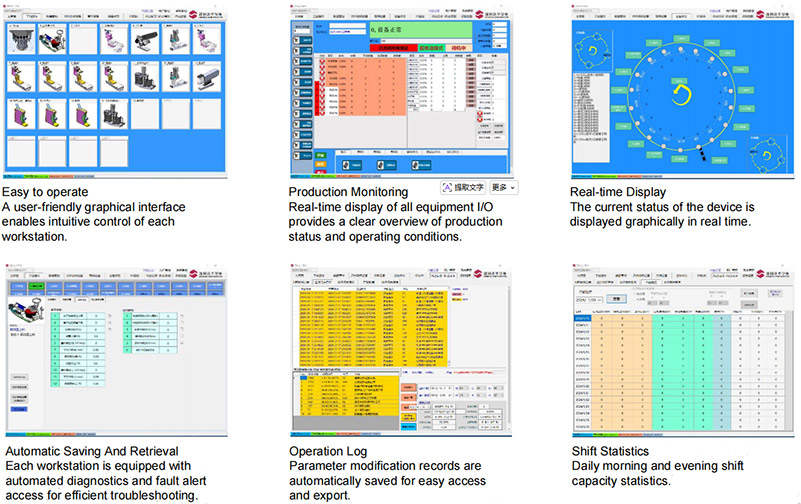

Powered by IoT technology, we have developed industry-leading software solutions that integrate vast amounts of on-site process and environmental data into a unified platform. Through innovative algorithmic models, our system enhances production efficiency, quality control, and equipment predictive maintenance. These models are field-tested and validated to effectively improve yield and minimize downtime and defect-related losses.

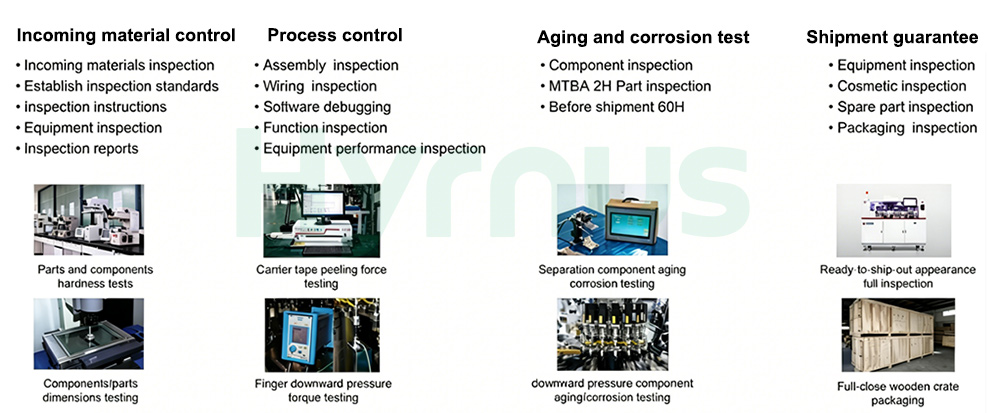

Quality Control Process
Product Details
FAQs
HY-BT12 Blue Tape Taping Machine is a high-speed blue tape taping machine designed to precisely pick chips from blue tape wafers and load them into carrier tapes for IC and LED devices.
HY-TT2401 Handler is a high-performance integrated handler that combines electrical testing, optical inspection, and taping packaging into a single automated system, designed for semiconductor packaging and test applications.
HY-TT1801 Test Sorter is applied to taping of discrete devices, ICs, DFN components and rectifier bridges.
HY-CS3025 Semiconductor Handler is dedicated to visual defect inspection, electrical performance testing, and finished product packaging of chip tantalum capacitors and multi-layer aluminum capacitors.
HY-CS3021 Chip Sorter is designed for visual defect inspection, electrical performance testing, and finished product packaging of miniature active and passive components.
HY-CS900 Semiconductor Handler Automated Test and Sorting Equipment for Process Automation.
HY-CS800 Sorter is Fully Automated High-Precision Sorting Equipment for the Final Test (FT) Stage
HY-WS600 Chip Sorting Machine integrates wafer-level inspection, high-precision sorting, automated loading/unloading, and data traceability in a single system.
