HY-TS936H Turret Test Handler is designed for room-temperature and high-temperature testing and sorting of discrete devices and ICs.
Brand :
HYRNUSItem No. :
HY-TS936HOrder(MOQ) :
1 SetWarranty :
One-Year Warranty and Lifetime MaintenancePayment :
T/TLead Time :
7-35 DaysProduct Origin :
ChinaTurret Test Handler High-temperature Test Turret Sorter Machine
Product Overview

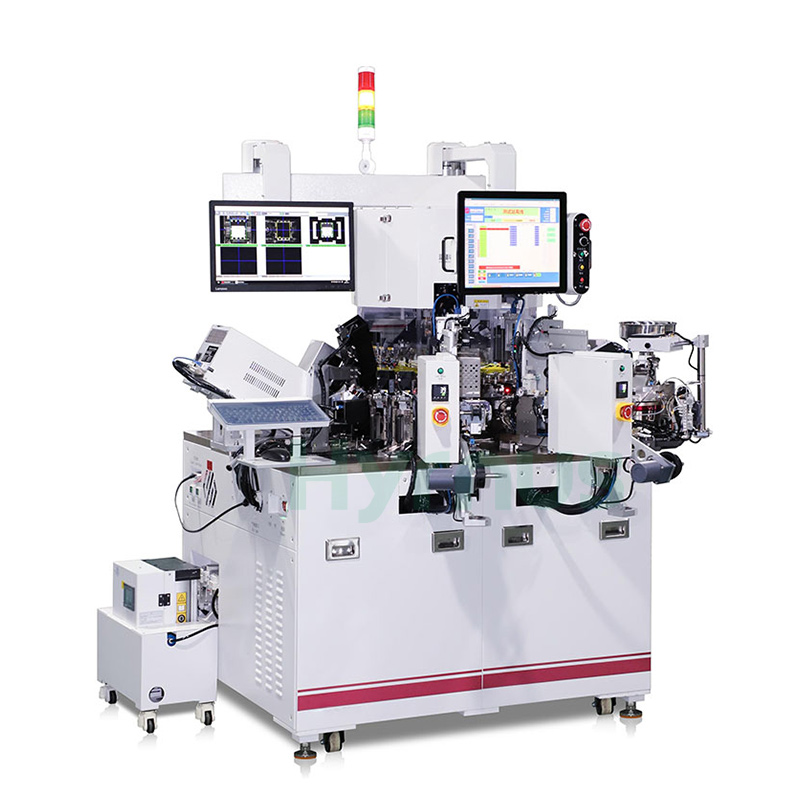

HY-TS936H Turret Test Handler is designed for discrete devices and ICs requiring high-temperature testing. Based on the original room-temperature testing capability, high-temperature test functionality is added to ensure stable performance. It is suitable for both room-temperature and high-temperature testing and sorting of packages including PDFN / DFN / MSOP / SOT / SOP / SOD / TO / SMA /SMB / SMC, etc.
Product Advantage
| No. | Advantage Description |

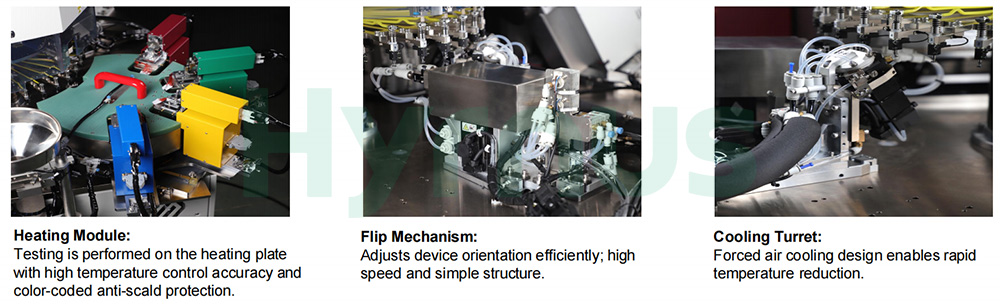

| 1 | Test Configuration: 1–4 high-temperature test sites (optional) + room-temperature test sites; heating temperature ≤ 180 °C (high-temperature test sites feature thermal insulation design). |
| 2 | Temperature Control Accuracy: Heating temperature ≤ 180 °C; temperature control accuracy ±3 °C. Taking PDFN 5×6 as an example, up to 96 devices can be heated simultaneously. |
| 3 | High-Temperature Sub Turret: High-temperature testing is completed directly on the high-temperature sub turret, ensuring temperature accuracy; both infeed and outfeed are equipped with anti-scald protection mechanisms. |
| 4 | Cooling System: Cooling is achieved by a vortex tube, enabling rapid temperature reduction from 125 °C to 28 °C within 30 seconds. |
| 5 | Automatic Feeding (Vibration Bowl): Vibration bowl feeding with fast and stable feeding speed. |
| 6 | Main Turret: The main turret is equipped with 36 pickheads driven by independent motors, which can accurately send the product to the center of each station through the adsorption of the pickhead. |
| 7 | Orientation Aligner: Accurate positioning and commutation of the product, positioning tolerance ≤ 0.005mm, directional accuracy up to 0.1 degrees. |
| 8 | Marking Station Mechanism: The marking station integrates laser marking, dust extraction, and mark inspection vision, significantly improving marking speed. |
| 9 | Tape & Reel Module: In addition to standard automatic taping, automatic material replenishment is also supported. |
Technical Parameters
| No. | Parameter | Specification |
| 1 | Suitable components | PDFN, DFN, MSOP, SOT, SOP, SOD, TO, SMA/B/C, etc. |
| 2 | UPH | Max 10K (test time less than 200ms) |
| 3 | High temperature test station | 1-4 stations available, high temperature (optional) |
| 4 | High temperature testing method | Test on the preheating plate |
| 5 | High temperature test temperature | 30~180℃ ±3℃ |
| 6 | Categorization | 4+4+1 |
| 7 | Onload | Bowl in / Tube in |
| 8 | Offload | Tape out / Tube out |
| 9 | Press-down mode | Servo motor+CAM / Imported linear motor / Domestic linear motor |
| 10 | Force control accuracy | Force control can achieve ±10% (≥10N) / ±5% (2-10N), support adaptive calibration |
| 11 | Stability | MTBA>60min, MTTA<3min, MTBF>168H |
| 12 | Atmospheric pressure | 0.4-0.7MPa, vacuum: >65KPa |
| 13 | Power source | AC220V / 380V 50/60Hz |
| 14 | Marking parameters | 10W laser marking equipment / 20W pulse marking equipment (optional); Marking range: 110mm110mm/70mm70mm; Wire carving speed: 7000mm/s; Minimum character: 0.5/0.3; Output power: 0-10W / 20W |
| 15 | Image parameter | Camera and resolution: 1.6-megapixel CCD camera, resolution H1440×V1080 pixels; Accuracy: ≤0.015mm/pixel; cycle time: <50ms |
| 16 | Bus program | High precision, fast speed, open all servo parameter settings, convenient equipment debugging and monitoring; MTBA original data records, equipment operation logs, equipment fault alarm codes and information and other data are permanently stored |
| 17 | Pickheads | 36 |
| 18 | Important components | Imported DDR |
Product Structure and Working Principle
With a total of 18 to 24 module stations, any configuration can be changed according to market needs. HY automatic high-speed test sorting machine Features:
| No. | Item | Description |
| 1 | UPH up to 45K to 50K per hour | 1. Turret design is adopted |
| 2. Using Keens PLC + PC system | ||
| 3. Servo motor system is widely used | ||
| 4. Equipped with the industry's optical system | ||
| 2 | High Flexibility | 1. Supports various feeding systems |
| 2. Equipped with modular system for easy debugging and maintenance | ||
| 3. Equipped with dual displays to cover the whole machine 360 degrees for easy debugging and maintenance | ||
| 3 | Iconic multi-language user interface | Win7 operating system |
| 4 | Design | Standardized designs |
Workflow
Working Principle Diagram: Components from the vibration plate feeding to the completion of the whole cycle of the process, machine working principle DDR motor for the rotation of the suction nozzle driven action 50ms a cycle, PLC control servo motors, solenoid valves, cylinders, inductors to complete a series of workstations with the completion of the components associated with the action of detection. The following figure:
Powerful Software Functions
Powered by IoT technology, we have developed industry-leading software solutions that integrate vast amounts of on-site process and environmental data into a unified platform. Through innovative algorithmic models, our system enhances production efficiency, quality control, and equipment predictive maintenance. These models are field-tested and validated to effectively improve yield and minimize downtime and defect-related losses.
Quality Control Process
Product Details
HY-BT12 Blue Tape Taping Machine is a high-speed blue tape taping machine designed to precisely pick chips from blue tape wafers and load them into carrier tapes for IC and LED devices.
HY-TT2401 Handler is a high-performance integrated handler that combines electrical testing, optical inspection, and taping packaging into a single automated system, designed for semiconductor packaging and test applications.
HY-TT1801 Test Sorter is applied to taping of discrete devices, ICs, DFN components and rectifier bridges.
HY-CS3025 Semiconductor Handler is dedicated to visual defect inspection, electrical performance testing, and finished product packaging of chip tantalum capacitors and multi-layer aluminum capacitors.
HY-CS3021 Chip Sorter is designed for visual defect inspection, electrical performance testing, and finished product packaging of miniature active and passive components.
HY-CS900 Semiconductor Handler Automated Test and Sorting Equipment for Process Automation.
HY-CS800 Sorter is Fully Automated High-Precision Sorting Equipment for the Final Test (FT) Stage
HY-WS600 Chip Sorting Machine integrates wafer-level inspection, high-precision sorting, automated loading/unloading, and data traceability in a single system.
