HY-UPB600 features full-process real-time monitoring of pressure, energy and welding time to guarantee stable welding quality, with fully automatic operation covering auto loading & unloading, automatic positioning and automated welding. It integrates a built-in product cleaning function, supports multi-angle welding ranging from 0° to 360°, and adopts a master-slave welding tip design that allows for fast replacement and reduces long-term consumable costs.
Brand :
HYRNUSItem No. :
HY-UPB600Order(MOQ) :
1 SetWarranty :
One-Year Warranty and Lifetime MaintenancePayment :
T/TLead Time :
7-35 DaysProduct Origin :

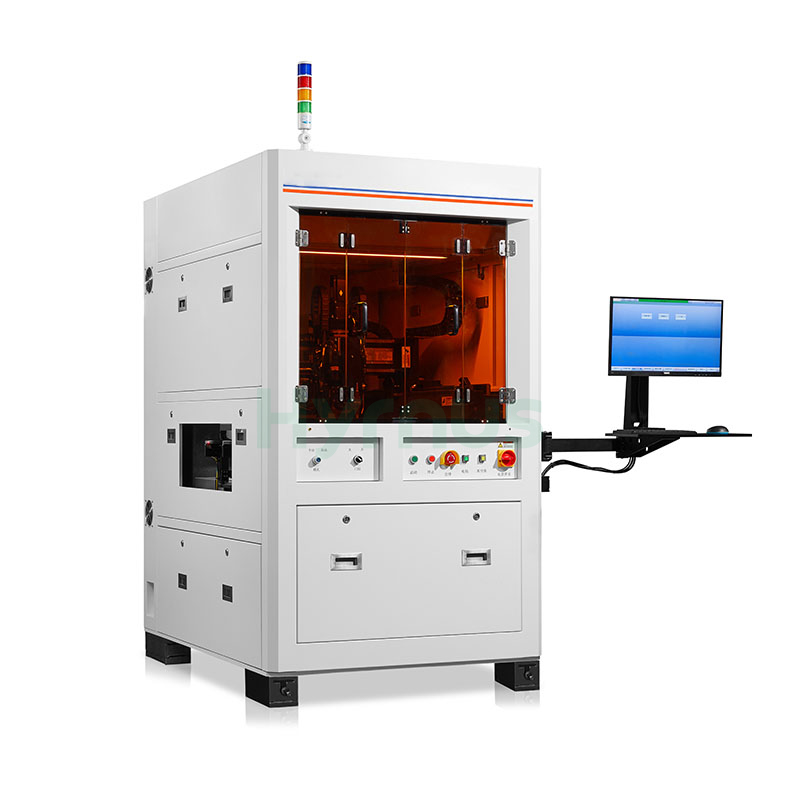

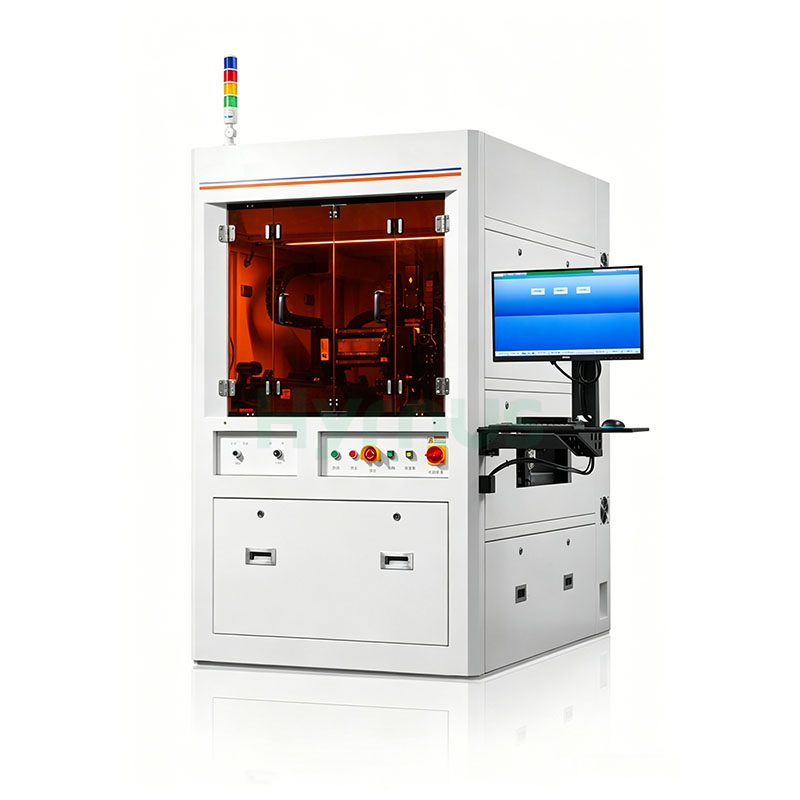

ChinaUltrasonic Pin Welder for Automatic Torque Welding Multi-Shape Terminals
Product Introduction
HY-UPB600 Automatic Ultrasonic Pin Welder adopts professional torque twist welding technology, the optimal welding solution for all types of pin terminals. The equipment integrates automatic loading, positioning, welding and workpiece cleaning functions to achieve fully unattended welding operation. Equipped with a 35KHz high-power ultrasonic system, it provides consistent welding pressure and excellent bonding strength, and is widely used to produce connector pins, new energy wiring terminals and electronic assembly components.
It supports multiple customizable welding modes compatible with round pins, fish-eye pins, square pins and pin bases of diverse specifications. Real-time monitoring of welding pressure, energy and duration guarantees uniform product quality and significantly cuts reject rates in mass production.
Product Features
1. Adopts torque welding ultrasonic process, the optimal solution for pin welding
2. Full-process monitoring of pressure, energy and welding time to guarantee stable welding quality
3. Fully automatic workflow: automatic loading, unloading, positioning and welding
4. Built-in integrated workpiece cleaning function
Technical Specifications
| Item | Specification |
| Welding Pressure | 50~500N |
| Pressure Accuracy | <100N (±5%); >100N (±3%) |
| Single-point Welding Cycle | <2.5s |
| Welding Strength (Push Force) | >30kgf (Φ2mm) |
| Welding Position Accuracy | ±0.1mm |
| Material Change Time | ≤12s |
| Welding Modes | Depth, Time, Energy, Depth+Time, etc. |
| Welding Process | Torque Welding |
| Ultrasonic Frequency | 35kHz |
| Ultrasonic Power | 1200W |
| Amplitude Adjustment Range | 50%~100% |
| X/Y/Z Axis Stroke & Positioning Accuracy | 350*600*80mm, ±0.01mm |
| Welding Objects | Pins (Integrated round pins, fish-eye pins, square pins, pin bases) |
| Equipment Dimensions & Weight | 1100 x 1720 x 1980mm, 1800kg |
Product Details
HY-ED022 Die Bonder is developed for Optical Communication and Optical Device Packaging applications.
HY-ED010 Die Bonding Machine is a Die bonding machine developed for Automotive LED and Optoelectronic Semiconductor Packaging applications.
HY-ED007 Die Attach Machine is a High-Precision Die attach machine developed for Optical Communication, Optical Modules, Multi-Chip Modules (MCM), 3D Packaging, and Optoelectronic Device applications.
HY-ED003 Die Attach Equipment is a High-Precision Eutectic Bonder developed for Optical Communication, Optical Modules, Multi-Chip Modules (MCM), 3D Packaging, and Optoelectronic Device applications.
HY-DB504 Die Bonder is a Fully Automatic Die Bonder developed for Ultra-High-Precision Optoelectronic and Semiconductor Packaging applications.
HY-DB503 Die Bonder is a High-Speed Fully Automatic Die Bonder developed for Optoelectronic and Semiconductor Packaging applications.
HY-DB501 Die Bonder is a fully automatic die bonder developed for ultra-high-precision optoelectronic and semiconductor packaging applications.It delivers precision-driven die attachment for optoelectronic packaging, targeting TO‑series devices, photodiodes, lasers, optocouplers, and miniLEDs with placement accuracy of ±5 μm and angular control within ±1°.
HY-DB500 Die Bonder is a high-end, fully automatic die bonder engineered for optoelectronic devices and high-precision semiconductor packaging. Built with exceptional stability, intelligent control, and a modular architecture, it is ideally suited for high-volume production of TO-series devices, photodiodes, lasers, optocouplers, miniLEDs, and consumer optoelectronic components.
