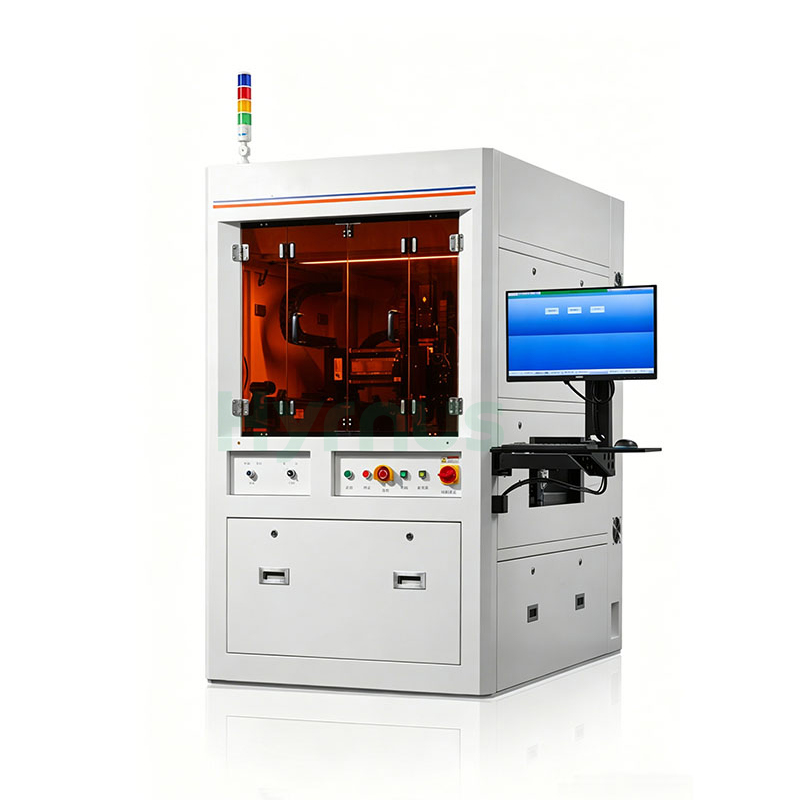

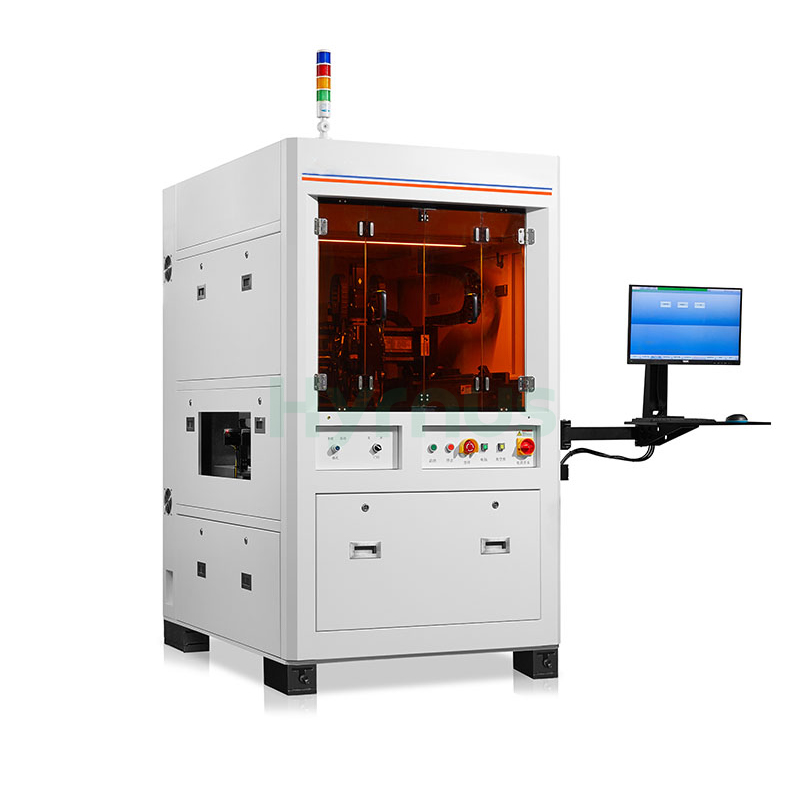

HY-UTB600 is a high-precision automatic ultrasonic welding equipment specially developed for power semiconductors, copper substrates, terminal wiring harnesses and busbars. It is widely applied in the welding process of metal terminals for power modules, copper lead frames and other electronic components. Featuring full automatic inline production capacity, it delivers outstanding performance in welding precision, production efficiency and low maintenance cost.
Brand :
HYRNUSItem No. :
HY-UTB600Order(MOQ) :
1 SetWarranty :
One-Year Warranty and Lifetime MaintenancePayment :
T/TLead Time :
7-35 DaysProduct Origin :
ChinaTerminal Ultrasonic Welding Machine for Semiconductor Component Copper Lead Frame Production Line
Product Introduction
HY-UTB600 Terminal Ultrasonic Welding Machine is a high-precision fully automatic ultrasonic welding system applicable to the new energy power semiconductor packaging sector, meeting various welding demands of copper substrates, thick copper terminals, wiring harnesses and conductive busbars. It perfectly fits the mass production procedures for power modules, copper lead frames, IGBT/MOSFET devices and multi-layer copper foil assemblies.
Integrated with complete inline automation functions, closed-loop real-time process monitoring modules and a 360° rotatable worktable, the equipment delivers outstanding consistency of welded products and fast production tact time with lower long-term operation and maintenance costs. It is widely deployed in mass production lines for automotive power electronics, industrial control semiconductors and energy storage components.
Product Features
1. Real-time full-process monitoring of welding pressure, energy and time to guarantee stable welding quality
2. Fully automatic workflow: automatic loading & unloading, vision alignment and welding
3. Built-in integrated workpiece cleaning function
4. Supports multi-angle welding from 0° to 360°
5. Master-slave sonotrode design for quick replacement and lower spare part cost
Technical Specifications
| Item | Parameter |
| Model | HY-UTB600 |
| Welding Pressure | 150 ~ 650N |
| Pressure Accuracy | ±5% (＜100N); ±3% (＞100N) |
| Single-point Welding Cycle | ＜1.2s |
| Welding Strength (Thrust Value) | ＞85kgf (HPD) |
| Welding Position Accuracy | ±0.1mm |
| Material Change Time | ≤12s |
| Welding Modes | Multiple modes: Depth, Time, Energy, Depth + Time |
| Welding Process | Linear Welding |
| Ultrasonic Frequency | 20KHz |
| Ultrasonic Power | 2400W |
| Amplitude Adjustment Range | 50% ~ 100% |
| X/Y/Z Axis Travel & Positioning Accuracy | 40060080mm, ±0.01mm |
| Worktable Rotation Range & Accuracy | 0 ~ 360°, ±0.01° |
| Overall Dimension & Weight | 1100*1720*1980mm, 1800kg |
Product Details
HY-ED022 Die Bonder is developed for Optical Communication and Optical Device Packaging applications.
HY-ED010 Die Bonding Machine is a Die bonding machine developed for Automotive LED and Optoelectronic Semiconductor Packaging applications.
HY-ED007 Die Attach Machine is a High-Precision Die attach machine developed for Optical Communication, Optical Modules, Multi-Chip Modules (MCM), 3D Packaging, and Optoelectronic Device applications.
HY-ED003 Die Attach Equipment is a High-Precision Eutectic Bonder developed for Optical Communication, Optical Modules, Multi-Chip Modules (MCM), 3D Packaging, and Optoelectronic Device applications.
HY-DB504 Die Bonder is a Fully Automatic Die Bonder developed for Ultra-High-Precision Optoelectronic and Semiconductor Packaging applications.
HY-DB503 Die Bonder is a High-Speed Fully Automatic Die Bonder developed for Optoelectronic and Semiconductor Packaging applications.
HY-DB501 Die Bonder is a fully automatic die bonder developed for ultra-high-precision optoelectronic and semiconductor packaging applications.It delivers precision-driven die attachment for optoelectronic packaging, targeting TO‑series devices, photodiodes, lasers, optocouplers, and miniLEDs with placement accuracy of ±5 μm and angular control within ±1°.
HY-DB500 Die Bonder is a high-end, fully automatic die bonder engineered for optoelectronic devices and high-precision semiconductor packaging. Built with exceptional stability, intelligent control, and a modular architecture, it is ideally suited for high-volume production of TO-series devices, photodiodes, lasers, optocouplers, miniLEDs, and consumer optoelectronic components.
