HY-PS13 is a CCP vacuum plasma system dedicated to wafer photoresist stripping, cleaning and surface activation. Popular in research labs and small-batch semiconductor production, its stainless steel chamber full set with pump & gas modules improves material surface adhesion and hydrophilicity for bonding, coating and thin-film processes.
Brand :
HYRNUSItem No. :
HY-PS13Order(MOQ) :
1 SetWarranty :
One-Year Warranty and Lifetime MaintenancePayment :
T/TLead Time :
7-35 DaysProduct Origin :
China13L CCP RF Vacuum Plasma Cleaner for Wafer Photoresist Stripping and Surface Activation
Product Introduction

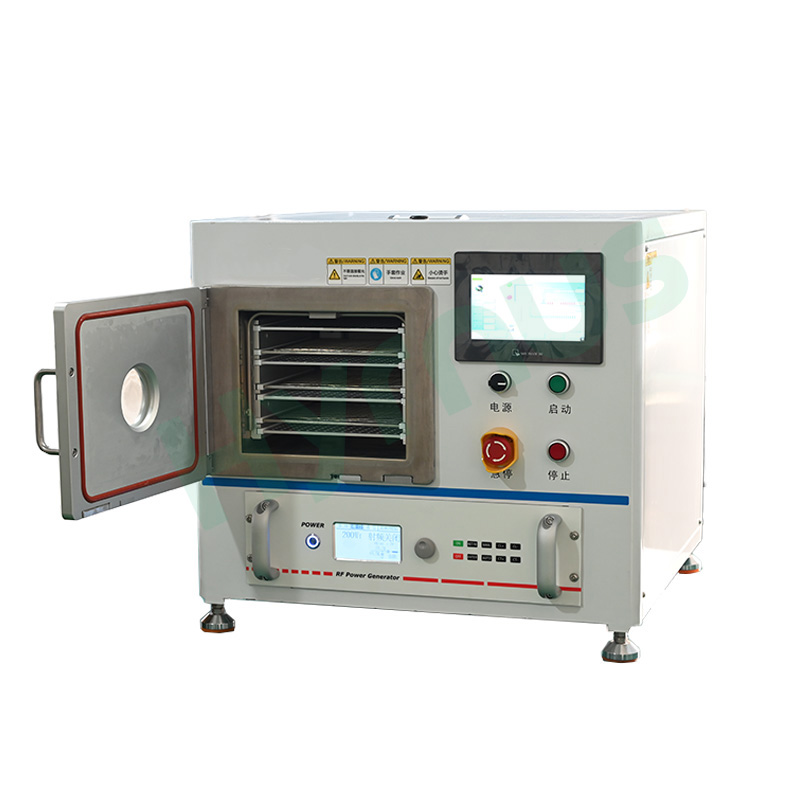

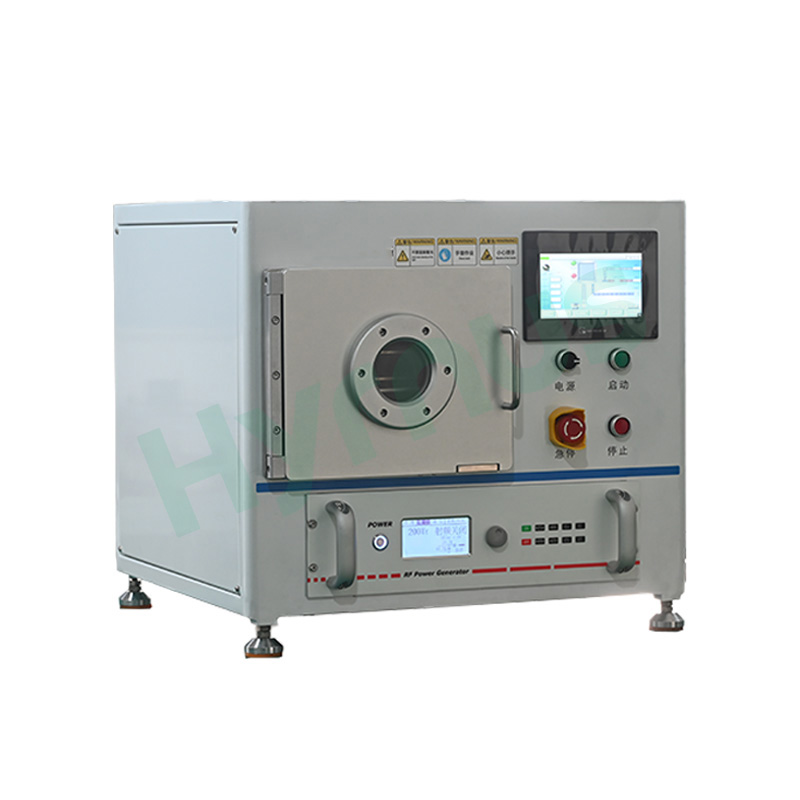

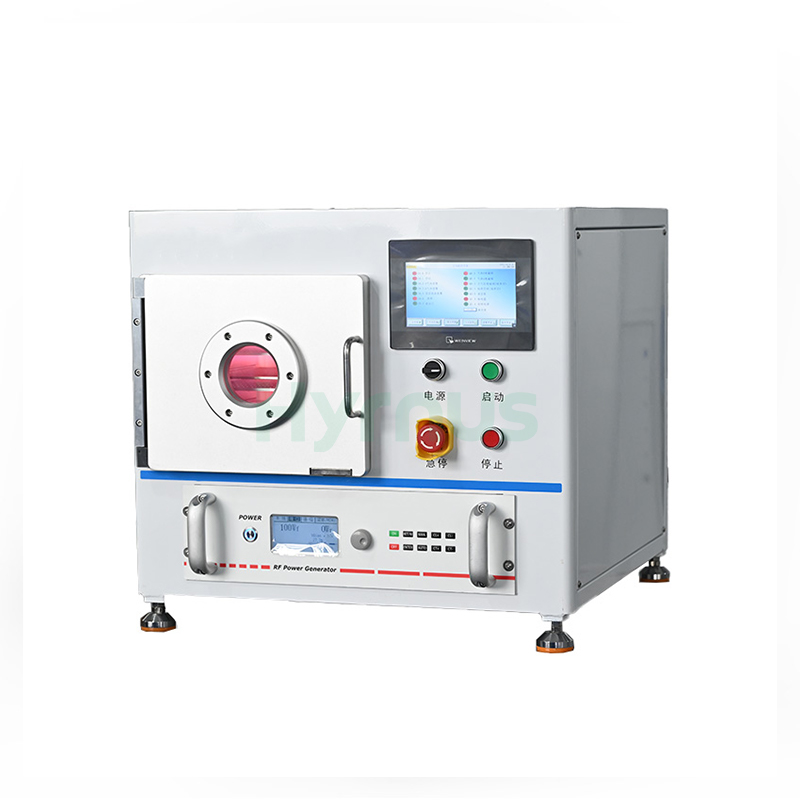

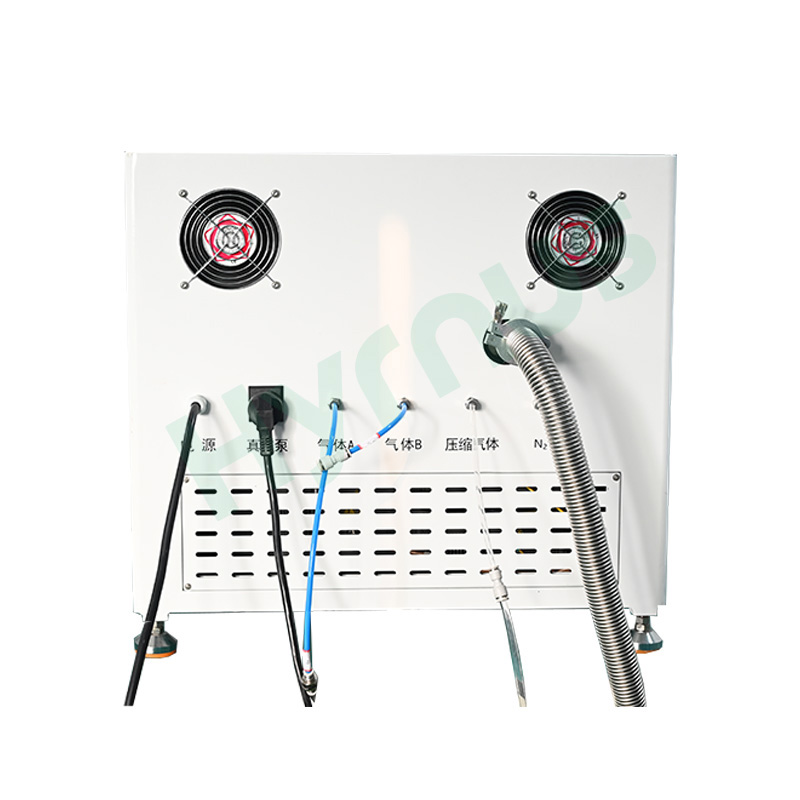

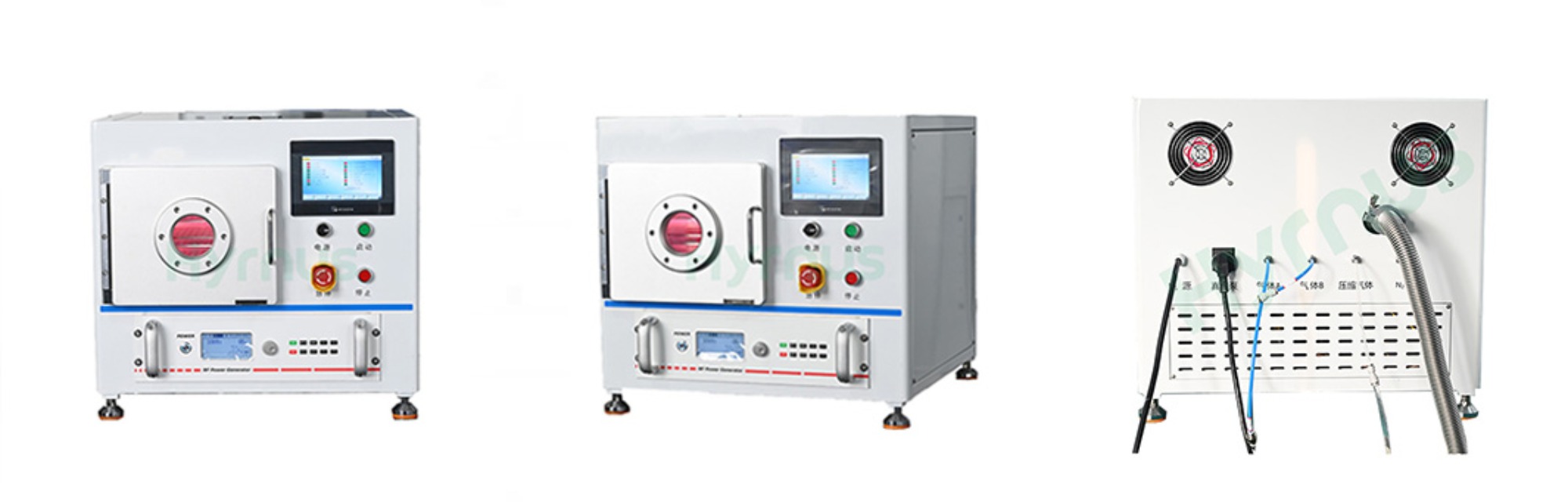

HY-PS13 13L RF Vacuum Plasma Cleaner is a capacitively coupled (CCP) vacuum plasma system engineered for wafer & silicon substrate photoresist stripping, surface cleaning and activation. Widely adopted by university research labs, enterprise R&D centers and small-volume semiconductor manufacturing lines, this all-square stainless steel plasma unit integrates a vacuum processing chamber, plasma generator, vacuum pump and complete gas inlet & outlet assemblies.
Featuring military-grade hermetic welding, 3-layer wafer tray and 13.56MHz auto-matching RF power supply, it greatly boosts substrate surface adhesion and optimizes material hydrophilicity. It delivers stable, consistent processing performance for wafer bonding, coating, thin-film deposition, microfluidic packaging and all types of precision material modification workflows.
Product Application
1. Cleaning: Removal of organics, oxides, metal salts, nano-scale particulate contaminants, etc.
2. Activation: Hydrophilic/hydrophobic modification, surface energy improvement, functional group grafting, biocompatibility optimization, etc.
3. Etching: Surface patterning, micro-etching, surface morphology & roughness adjustment, etc.
4. Bonding: Bonding of microfluidic devices such as PDMS chips.
5. Photoresist Stripping: Photoresist ashing, bottom anti-reflective coating (BARC) removal, etc.
Product Features
1. Stainless steel vacuum chamber manufactured with military-grade welding technology, delivering outstanding air tightness and long-term durability for stable plasma processing.
2. 3-layer stainless steel sample tray design supports small-batch processing and greatly maximizes internal chamber space utilization.
3. User-friendly touchscreen HMI allows real-time monitoring and full parameter control of the entire processing cycle.
4. Stores multiple custom process recipes for one-click recall; all historical process data is fully traceable for experiment and production records.
5. Dual high-precision MFC mass flow controllers, enabling flexible testing of mixed gas ratios to optimize cleaning and treatment results.
6. Equipped with a 13.56MHz RF plasma power supply with automatic impedance matching, offering superior process stability and repeatability.

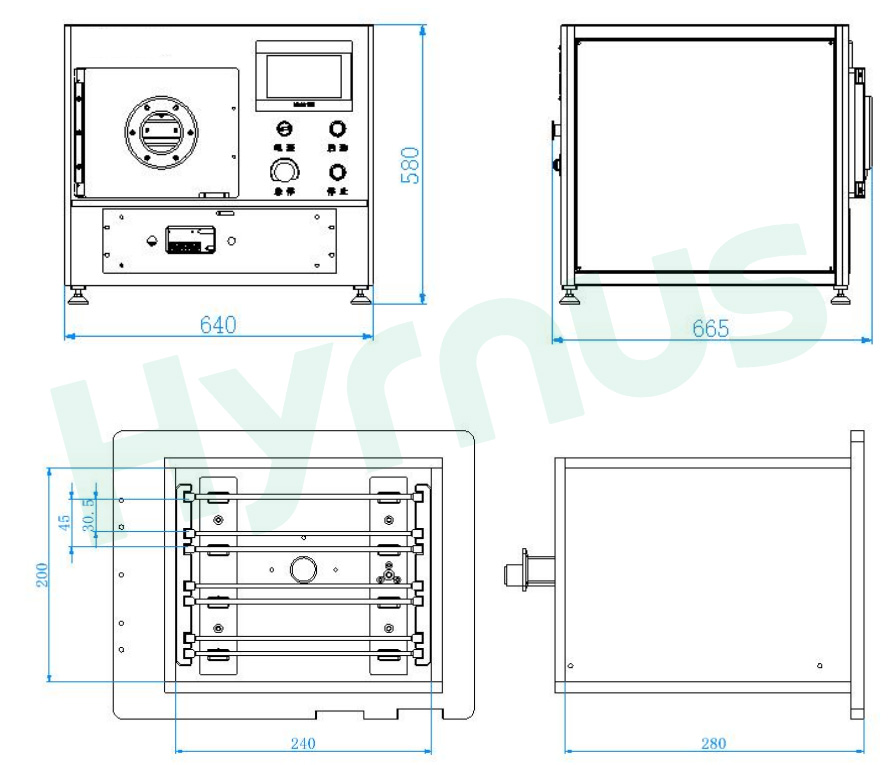

Machine Outline Drawing and Vacuum Chamber Diagram
Technical Specifications
| No. | Category | Item | Specification & Parameters |
| 1 | Plasma Generator | Solid-state Power Supply | Adjustable from 0–300W, standard sine wave output; stability ≤ ±0.5%; protection against overvoltage, overcurrent, overtemperature and reflected power |
| Anti-radiation High-Frequency Matcher | High-speed automatic matching within 0.1s, supports network communication | ||
| RF Frequency | 13.56 MHz | ||
| 2 | Vacuum Reaction Chamber | Chamber Material | Imported 316 stainless steel with military-grade sealing |
| Chamber Volume | 240(W) × 280(D) × 200(H) mm; 13L | ||
| Effective Processing Space | 205(W) × 210(D) × 30(H) mm | ||
| Processing Layers | 3 layers | ||
| Electrode Spacing | 45 mm | ||
| Tray Spacing | 30 mm | ||
| Uniformity | Within-wafer uniformity ≤ ±20%; wafer-to-wafer uniformity ≤ ±20%; batch-to-batch uniformity ≤ ±20% | ||
| 3 | Discharge Electrode | Electrode | Special high-conductivity aluminum alloy electrode |
| Discharge Mode | CCP & RIE ion reaction discharge modes | ||
| 4 | Gas Circuit Control | Gas Mass Flow Controller | 300 SCCM |
| Gas Circuit Design | Uniform chamber gas inlet design to guarantee consistent cleaning & etching effects | ||
| Gas Channels | 2 gas channels, compatible with O₂, Ar, N₂, H₂, etc. Notify us in advance if corrosive gases are required | ||
| 5 | Vacuum Measurement | Vacuum Measuring System | Measuring range: 5×10⁻² ~ 1.0×10⁵ Pa |
| Measurement accuracy: 0.1 Pa | |||
| 6 | Pumping System | Vacuum Pump | 16 m³/h |
| Vacuum Pipeline | Stainless steel pipeline + pneumatic valves | ||
| 7 | Control System | Control Mode | PLC |
| Touchscreen | 7-inch touch panel | ||
| Real-time Monitoring | Real-time display of power, vacuum degree, air pressure, gas flow, working time, etc. | ||
| Software Program | Self-developed patented plasma control system; 3-level authority management; auto & manual modes; recipe parameter setting, storage & recall; alarm history query, IO monitoring | ||
| Alarm Functions | Vacuum protection alarm, glow loss alarm, power overload alarm, air pressure alarm, phase sequence alarm | ||
| 8 | Site Conditions | Pressure Balancing Function | Supports process gas inlet with configurable balancing time for pressure stabilization |
| Power Supply | 220V, 50/60Hz, 9A | ||
| Gas Pipe Connector | 6 mm diameter | ||
| Gas Purity Requirement | 99.99% | ||
| Gas Inlet Pressure | 0.4–0.6 MPa | ||
| Exhaust Port | KF25 flange | ||
| 9 | Overall Unit Parameters | Total Power Consumption | 2 KW |
| Overall Dimension | 640mm (W) × 665mm (D) × 580 mm (H) |
Operating Environment (Items to be Prepared by Customer)
| No. | Item | Requirements |
| 1 | Power Supply | Grid standard: 220V, 50/60Hz, voltage fluctuation ±10%; the ground wire meets international standards; no strong electromagnetic interference around the equipment installation position. |
| 2 | Installation Environment | Ambient temperature: 0–40°C; Relative humidity: 15%–60%. |
| 3 | Gas Source | Gas cylinders for O₂, Ar, N₂, H₂ and other process gases (equipped with pressure reducing valves); inlet gas pressure ＞0.3MPa; gas pipe connector diameter: Φ6mm. |
| 4 | Exhaust Pipeline | Connect to the exhaust outlet of the vacuum pump (mandatory for cleanroom applications). |
