HY-PM-TO252 Semiconductor Molding Mold is designed for post-process encapsulation of integrated circuits, semiconductor devices, optoelectronic components, optocouplers and sensors. It supports a wide range of package types and features a drawer-type quick-change mold box, balanced runner design and short-distance molding for high resin utilization, stable molding quality and easy maintenance.
Brand :
HYRNUSItem No. :
HY-PM-TO252Order(MOQ) :
1 SetWarranty :
One-Year Warranty and Lifetime MaintenancePayment :
T/TLead Time :
7-35 DaysProduct Origin :
ChinaTO252 MGP Molding Mold for Semiconductor Devices
Product Introduction

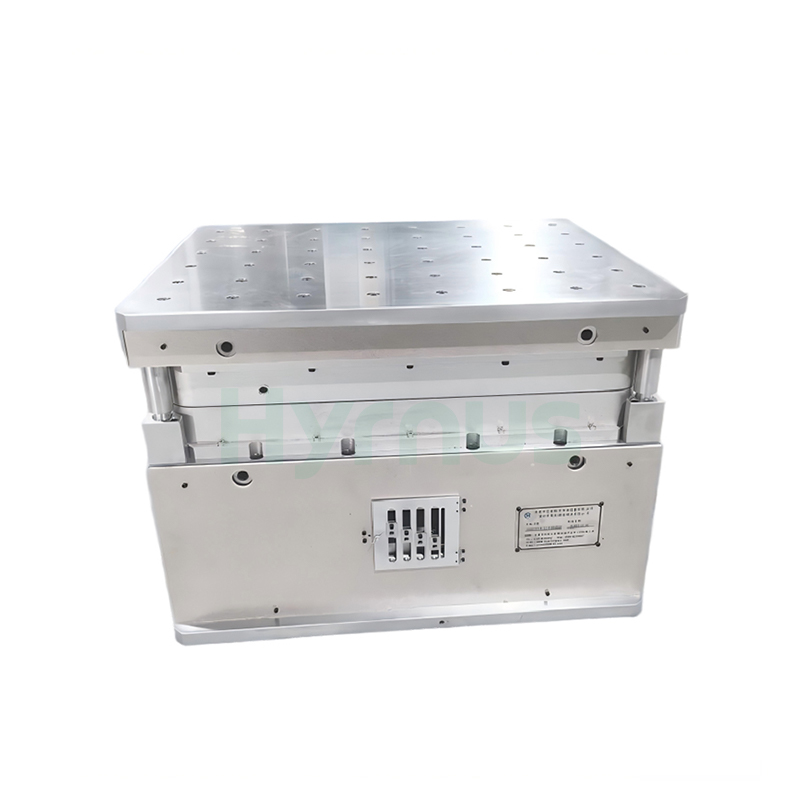

HY-PM-TO252 Semiconductor Molding Mold is mainly used for post-process encapsulation of integrated circuits, semiconductor devices, optoelectronic devices, optocouplers and sensor components. It is suitable for various package types, including TO, DIP, SDIP, SOD, SOT, SOP, SSOP, TSSOP, QFN, QFP, LQFP, PLCC, IPM, ORPC, OC and BGA.
The mold box adopts a drawer-type quick-change structure, making mold replacement and maintenance more convenient. With a balanced runner design and short-distance molding process, it helps improve resin utilization, reduce material waste and ensure stable molding quality. The overall structure offers good processability, reliable performance and easy maintenance for semiconductor packaging production.
Specification
| No | Item |
| 1 | Supports different cavity designs according to various leadframe sizes to maximize output per shot. |
| 2 | Adopts bottom injection with multi-cylinder system, combined with internal rack-and-pinion and positioning sliders to drive multiple injection heads. |
| 3 | Vacuum function can be integrated as required. |
| 4 | Core-pulling mechanism for molding can be integrated as required. |
| 5 | Surface treatment of molded strips can be hard chrome plating or vacuum coating. |

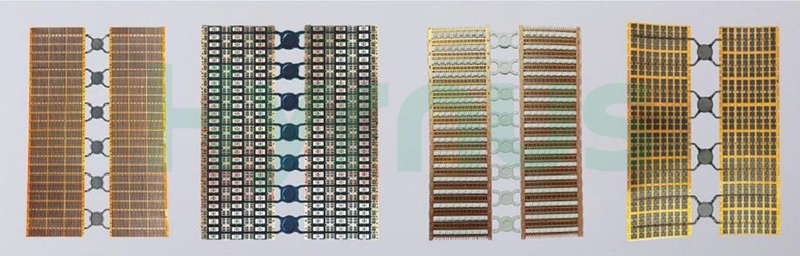

Sample display
Product Details
HY-PM23 MGP plastic molding die is customized for SOT23-20R semiconductor packaging. It is equipped with 6 mold boxes; each mold box holds 2 lead frames, with a total of 12 lead frames per full mold. All mold boxes and internal components are fully interchangeable and feature a quick disassembly and replacement structure.
HY-AU400 is an integrated machine serving as professional auxiliary equipment for IC plastic molding molds. It realizes automatic lead frame preheating and molding compound pellet arrangement. Fitted with robotic arms and multi-point temperature control, it adapts to all IC packaging varieties, reduces manual contamination, lifts production efficiency, and supports optional MES system networking.
HY-MF300 is auxiliary equipment for plastic packaging molds, capable of one-time removing runner and gate residual flash for all IC packages. Equipped with Mitsubishi/Yonghong PLC control and full safety interlocks including light curtain, door sensor, E-stop and two-hand buttons, it delivers stable performance and universal compatibility for all semiconductor packaging production lines.
HY-PM252-6R Molding is a high-precision molding mold designed for TO252-6R package products. The mold features a universal mold base capable of accommodating 6 mold boxes with quick mold box change design, utilizing a bottom-to-top multi-pot injection design driven by four built-in high-temperature-resistant, leak-proof hydraulic cylinders with a balanced injection head drive plate.
The HY-GD001/HY-GD803/HY-GD001A Automatic Degating Machine is designed for removing gates and runners from molded semiconductor leadframes. It combines precise punching, automatic air blowing and waste collection, while the mistake-proof mold and safety light curtain ensure reliable and safe operation.
HY-PS8120 Molding System is a fully automatic molding system designed for semiconductor packaging, supporting a wide range of package types including SOT, SOP, TOLL, TO, QFN, DFN, and BGA.
HY-LB200 Optoelectronic Drying Oven is designed for baking and drying electronic and hardware products at temperatures below 200°C. Equipped with PID temperature control, adjustable air circulation, timing settings, and multi-level over-temperature protection, it ensures stable and reliable operation. The stainless-steel chamber offers excellent durability and corrosion resistance, making the oven especially suitable for LED diodes, digital displays, backlights, and similar optoelectronic products.
HY-PS8180 Fully Automatic Semiconductor Molding System is designed for efficient encapsulation of ICs and power devices, ensuring stable quality and reliable protection.
