Brand :
HYRNUSItem No. :
HY-WB900Order(MOQ) :
1 SetWarranty :
One-Year Warranty and Lifetime MaintenancePayment :
T/TLead Time :
7-35 DaysProduct Origin :

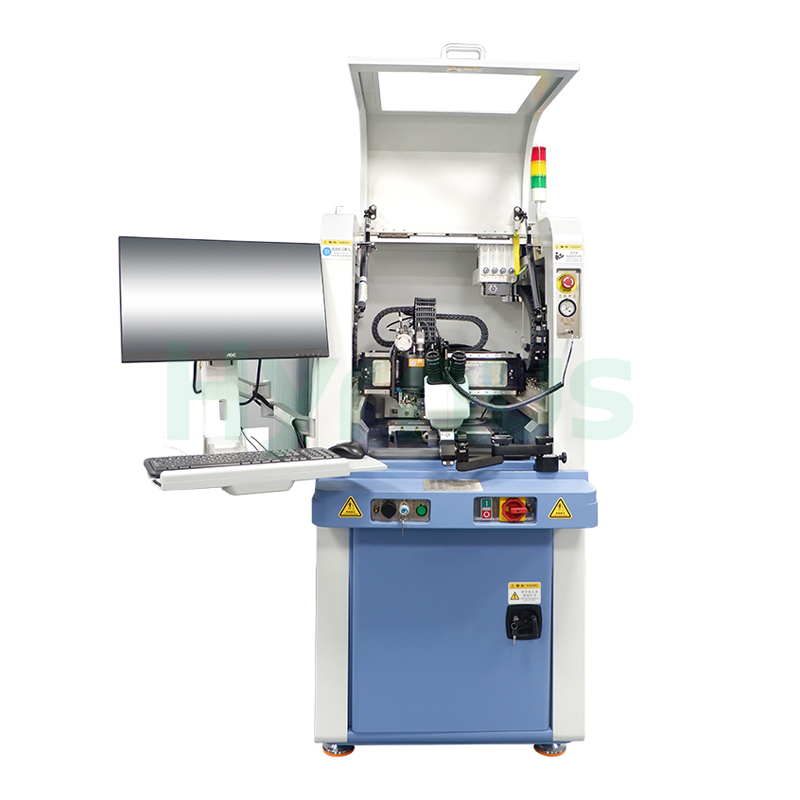

ChinaFully Automatic Deep Access Wedge Wire Bonder Aluminum Wedge Bonding Machine
Product Introduction
The HY-WB900 Deep Access Wedge Wire Bonder is suitable for the internal pin interconnection process of chips in the production of special electronic components and is one of the key pieces of equipment in electronic component packaging. It is mainly used in hybrid circuits, COB modules, MCMs, MEMS devices, RF devices/modules, optoelectronic devices, microwave devices, military devices, high-end optoelectronic devices, automotive electronic modules, and other electronic components.
Features
| No. | Feature |
| 1 | Automatic real-time bonding deformation monitoring, providing direct welding status feedback control |
| 2 | Real-time ultrasonic energy monitoring, providing welding energy feedback control |
| 3 | Constant length and constant height loop control capability |
| 4 | Piezoelectric motor tail wire control mechanism, ensuring tail wire consistency |
| 5 | Compatibility with 19mm and 25mm capillaries |
| 6 | High-definition bond head maintenance image auxiliary tool |
Technical Specifications
| No. | Parameter | Specification |
| 1. | Bonding Accuracy | ±3 μm @ 3σ |
| 2. | Bonding Force | 0~220 g |
| 3. | Bonding Area | X: 305 mm, Y: 457 mm |
| 4. | Capillary Length | 19 mm, 25 mm |
| 5. | Z Travel Range | 40 mm |
| 6. | Wire Types | Gold wire (18~75 μm), Aluminum wire (18~75 μm) |
| 7. | P Rotation Range | ±220° |
| 8. | Bonding Speed | ≥ 4 wires/s |
| 9. | Loop Control | Fully programmable |
| 10. | Spool Size | 2 inch |
| 11. | Ultrasonic Range | 0~4 W control accuracy, stepped flexible application capability |
| 12. | Workholder Temperature Range | Room temperature ~ 250°C |
| 13. | Cavity Depth Range | Max. 16 mm |
| 14. | Operating System | Windows 10 |
Terms of use
| No | Item | Requirements |
| 1. | Footprint (W×D×H) | ≤1000 × 1500 × 1700 mm (excluding monitor space) |
| 2. | Equipment Weight | Approx. 1200 kg |
| 3. | Ambient Temperature | Normal room temperature (20°C ~ 26°C); high temperature operation will affect equipment service life |
| 4. | Compressed Air Requirement | 0.4~0.8 MPa, flow rate >150 L/min (dry treatment, dust removal, oil-water separation) |
| Residual oil content: 0.01 ppm; Filtration: particles >0.01 μm; Low dew point temperature: -20°C | ||
| 5. | Ambient Humidity | ≤60% relative humidity |
| 6. | Ambient Vibration | Vibration may affect equipment accuracy; keep away from vibration sources |
| 7. | Grounding | Must be properly grounded. Follow local regulations for grounding specifications. |
| 8. | Others | - Ensure power supply is located near the machine |
| - Precision leveling with a leveling instrument is required after installation on site | ||
| - Do not use the machine in areas with strong noise, vibration, high heat, or oil contamination | ||
| - Avoid installing the machine near cooling fans, ventilation ports, or sources of oil contamination | ||
| 9. | Voltage | 220V ± 10% |
| 10. | Frequency | 50/60Hz |
| 11. | Grounding | Must be grounded |
| 12. | Power | ≤ 500W |
| 13. | Interface Specification | 5A, Single-phase 3-wire |
